Description

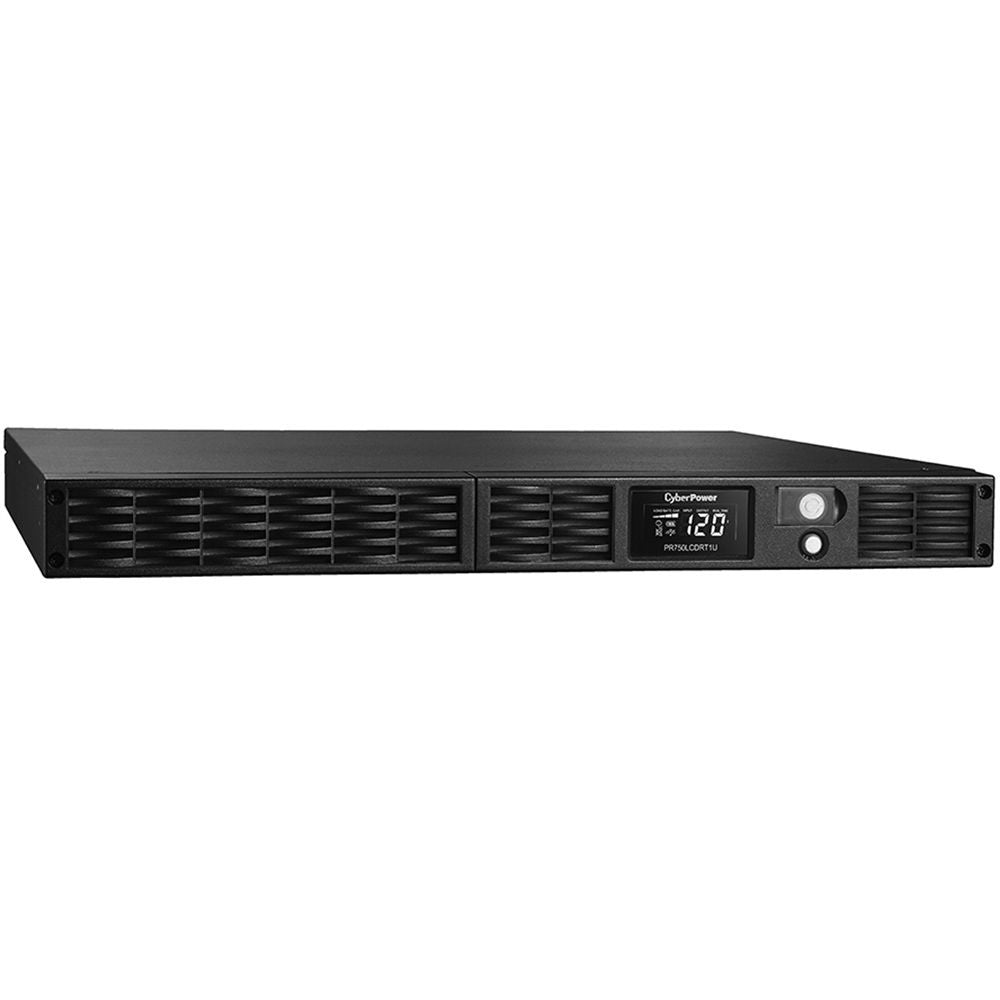

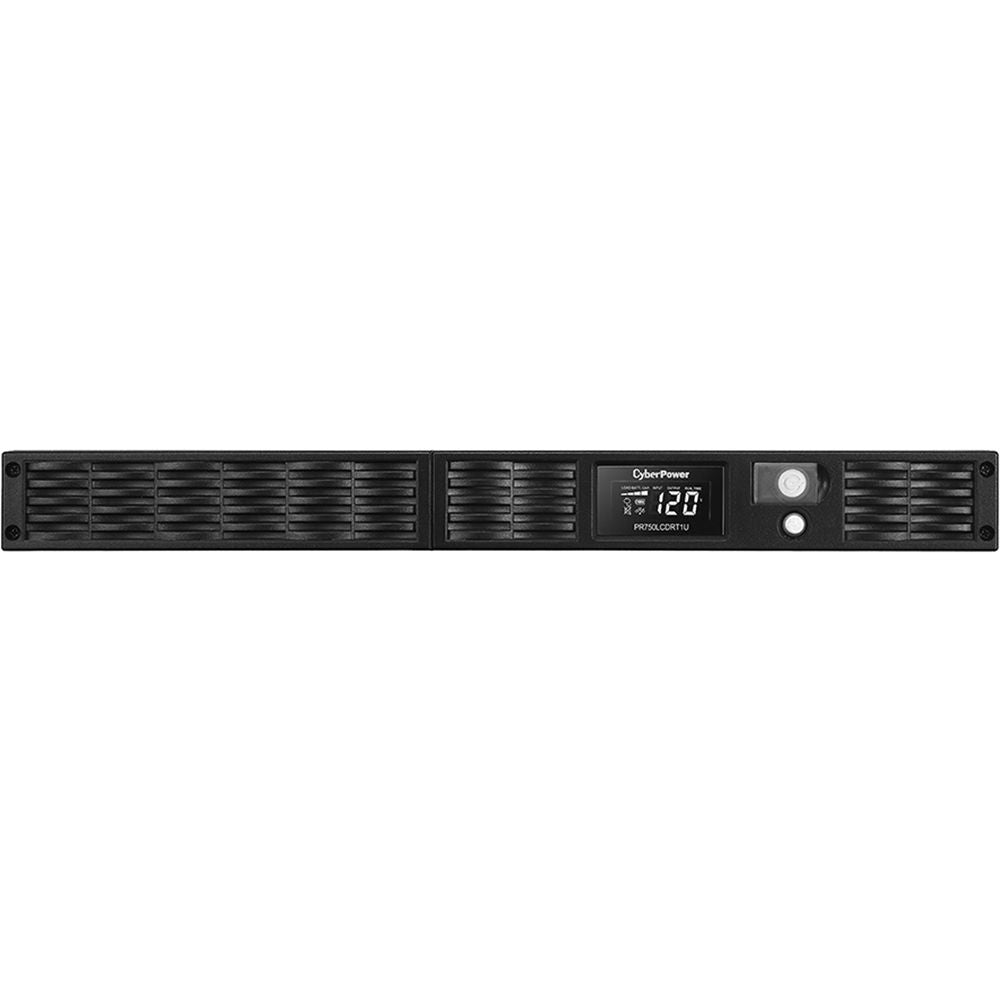

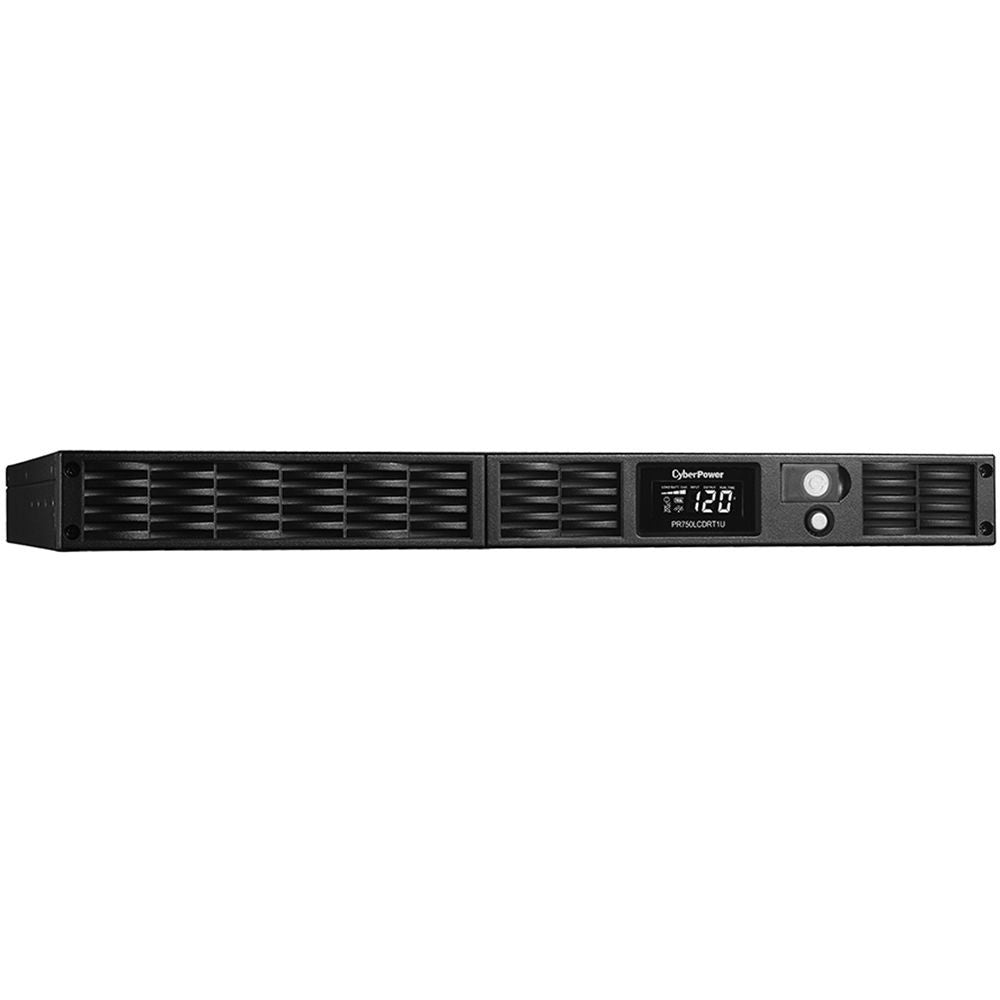

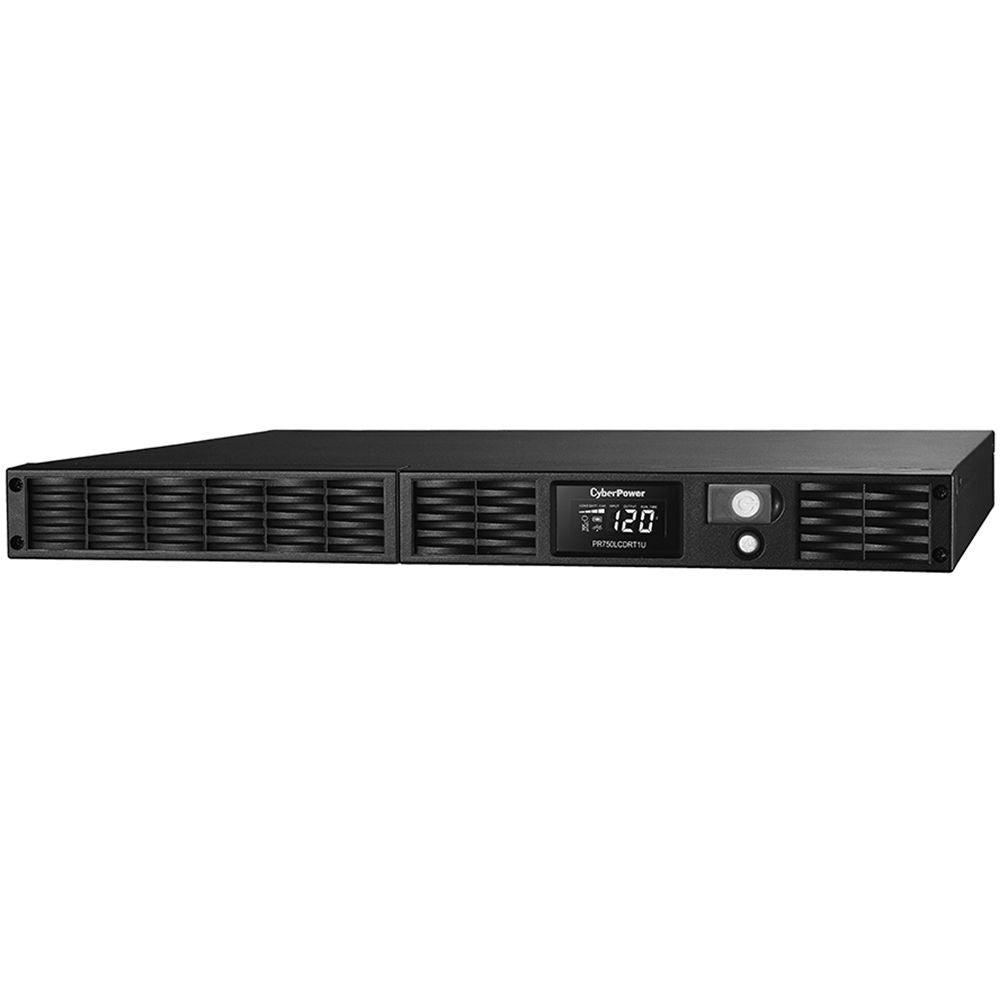

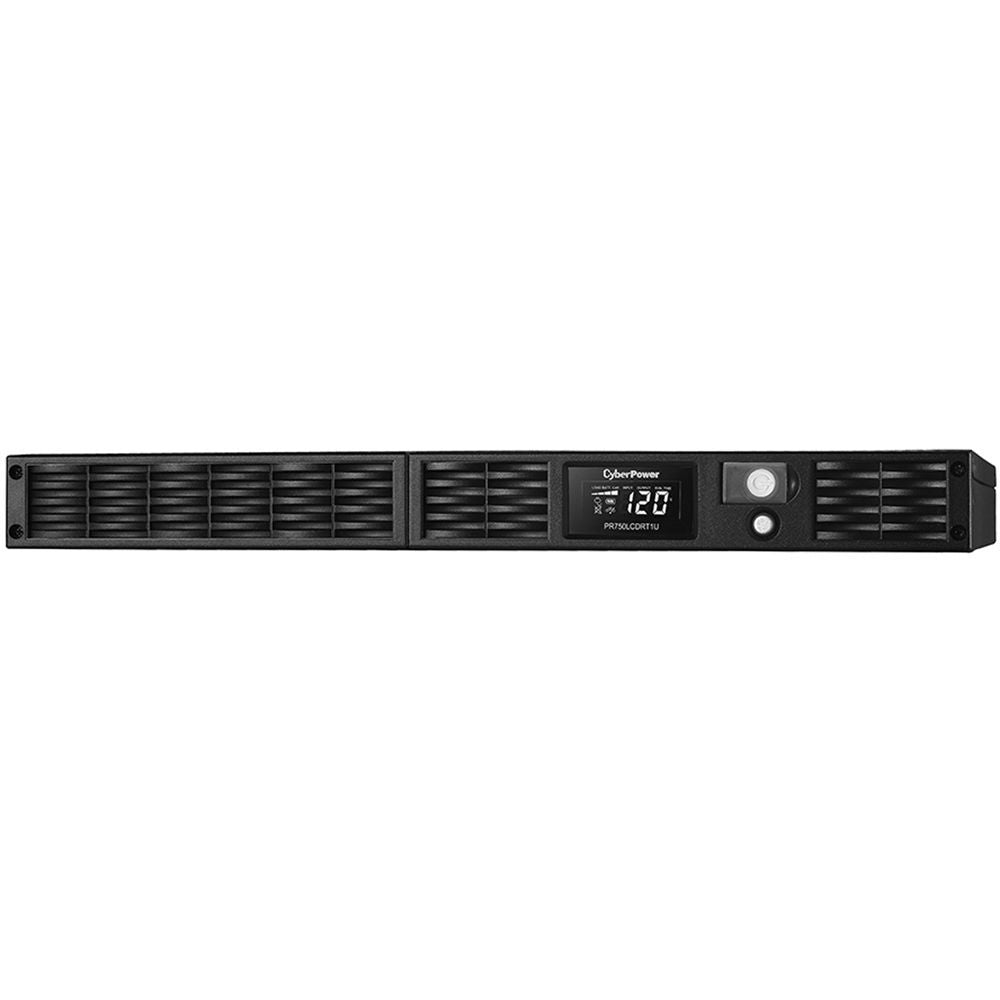

The CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W) features a LCD panel, offers a sine wave output, and is active PFC compatible for safeguarding mission-critical servers, telecom equipment and VoIP, and internetworking hardware that require seamless pure sine wave power. It incorporates a microprocessor-based digital control and includes the PowerPanel Business edition software. The UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to reduce energy consumption and heat build-up.
- Suitable for servers, workstations, network devices, and telecom equipment
- Capacity of 750VA/600W
- Line Interactive Topology
- Full AVR (Automatic Voltage Regulation) Buck/Boost
- AVR (Automatic Voltage Regulation) provides battery back-up power if the voltage drops below 80V or exceeds 150V
- GreenPower UPS
- 1U rack mount/tower convertible
- Multi-function LCD panel
- SNMP/HTTP remote management

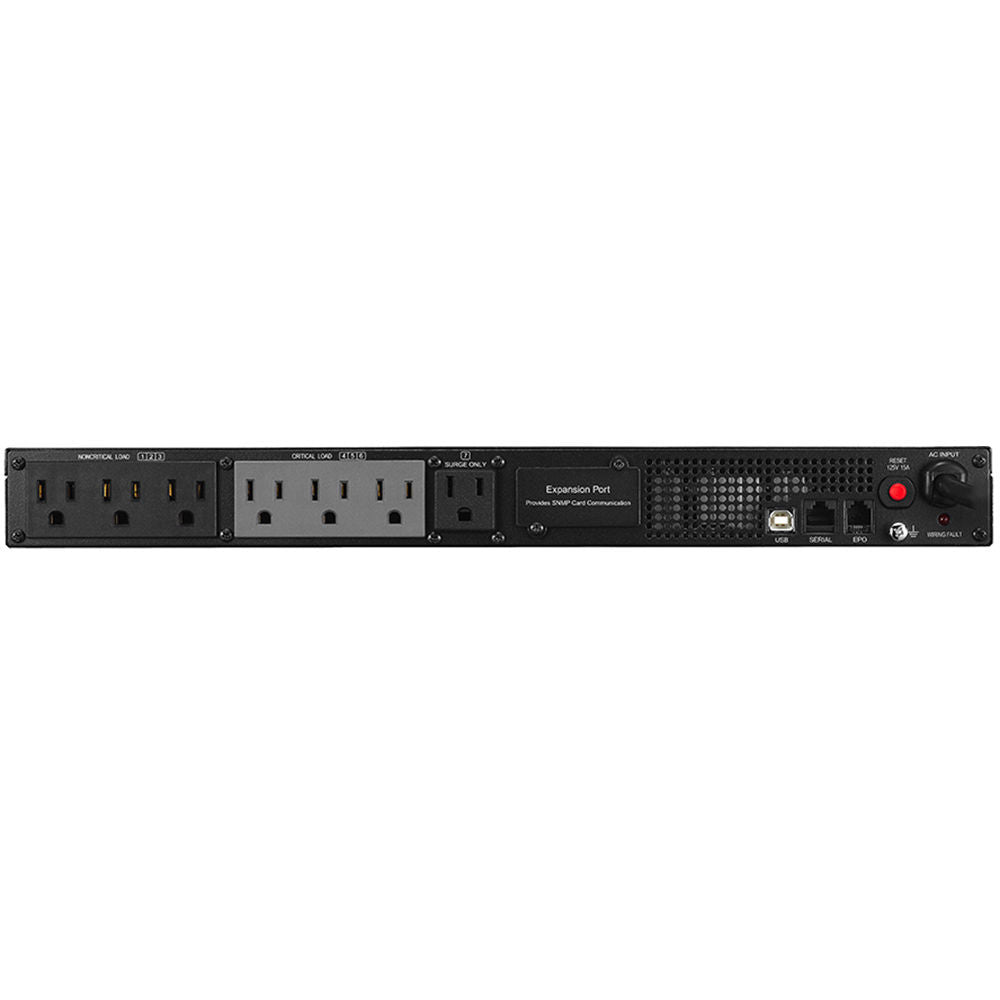

- 7 Outlets / USB, serial, and EPO ports
- EMI/RFI filtration
- PowerPanel Business edition software
- ENERGY STAR qualified and Active PFC compatible
In the Box
CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)
- 2 x Rack Mount Bracket
- 2 x Wall Mount Bracket
- 2 x Stand
- Emergency Power Off Cable (Gray)
- PowerPanel Business Edition Software CD
- Serial Interface Cable (RJ45/DB-9)
- USB A+B type Cable
- Limited 3-Year Warranty
| General | |
|---|---|
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS bypass technology |
| Input | |
|---|---|
| Voltage | Nominal 120 V |
| Input Frequency | 57-63 Hz � 1% |
| Voltage Range | 80 to 150 VAC |
| Plug Type | NEMA 5-15P |
| Plug Style | Right angled, 45� offset right |
| Cord Length | 10' (3 m) |
| Output | |
|---|---|
| VA | 750 |
| Watts | 600 |
| Automatic Voltage Regulation (AVR) | Boost 1: +30%, Boost 2: +14% Buck: -12% |
| On Battery Voltage | 120 VAC � 5% |
| On Battery Frequency | 60 Hz � 1% |
| On Battery Waveform | Sine wave |
| Outlets | Total: 7 Battery & Surge Protected: 6 Critical Load: 3 Surge-Only Protected: 1 |
| Outlet Type | NEMA 5-15R |
| Power Factor | Rated: 0.8 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer time | 10 ms |
| Battery | |
|---|---|
| Runtime | 10 minutes at half load 3 minutes at full load |
| Battery Type | Sealed lead-acid |
| Battery Size | 6 V/7 Ah |
| Hot Swappable | Yes |
| Replacement Battery | RB0670X4A |
| User Replaceable | Yes |
| Battery Quantity | 4 |
| Typical Recharge Time | Less than 6 hours (90% charged) |
| Surge Protection / Filtering | |
|---|---|
| Surge Suppression | 1030 joules |
| Management and Communications | |
|---|---|
| LCD | Multifunction LCD Panel Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Management Cable | USB cable, Serial cable, EPO cable |
| LED Indicators | Power On, Wiring Fault |
| Alarms | Audible: On Battery, Low Battery, Overload |
| Software | PowerPanel Personal edition |
| SNMP/HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Operating Humidity | 0 to 95% non-condensing |
| Storage Temperature | 5 to 113�F (-15 to 45�C) |
| Maximum Operating Elevation | 10,000' (3000 m) |
| Maximum Storage Elevation | 50,000' (15000 m) |
| Thermal Dissipation | AC Mode: 46 BTU/hr |
| Certifications | |
|---|---|
| Safety | UL1778, CSA C22.2 NO.107.3-05 FCC DOC Class A |
| Compliance | RoHS |
| Physical | |
|---|---|
| Rack Size | 1U |
| Form Factor | Rack/tower |
| Dimensions (W x H x D) | 17.25 x 1.75 x 15.8" (438.15 x 44.45 x 401.3 mm) |
| Weight | 30.7 lb (13.92 kg) |
