Description
The CyberPower PR1500LCDN Mini-Tower UPS (1500VA/1050W) comes with the line interactive topology and a pre-installed SNMP card. It provides battery backup, power protection with true sine wave output, and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility.
The PR1500LCDN UPS uses AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to the battery power, thereby extending the battery life. The AVR is essential where power fluctuations occur frequently. An included RMCARD205 provides remote UPS management and configuration using a standard web browser or network management system.
Output Power, Connectivity and Management
- 1500VA / 1050W sine wave UPS
- 120VAC input/output
- Mini-tower
- RMCARD205 SNMP/HTTP remote management card
- 8 outlets / USB, serial, and EPO ports
- Compliant with Cisco EnergyWise
- ENERGY STAR compliant
Battery Backup
- Supplies power long enough for the equipment to properly shut down when utility power fails
- Helps prevent loss of data and minimizes the component stress caused by a hard shutdown
Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
Line Interactive Topology
- Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to the battery
- AVR (Automatic Voltage Regulation)
- Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations
GreenPower UPS Bypass Design
- Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up

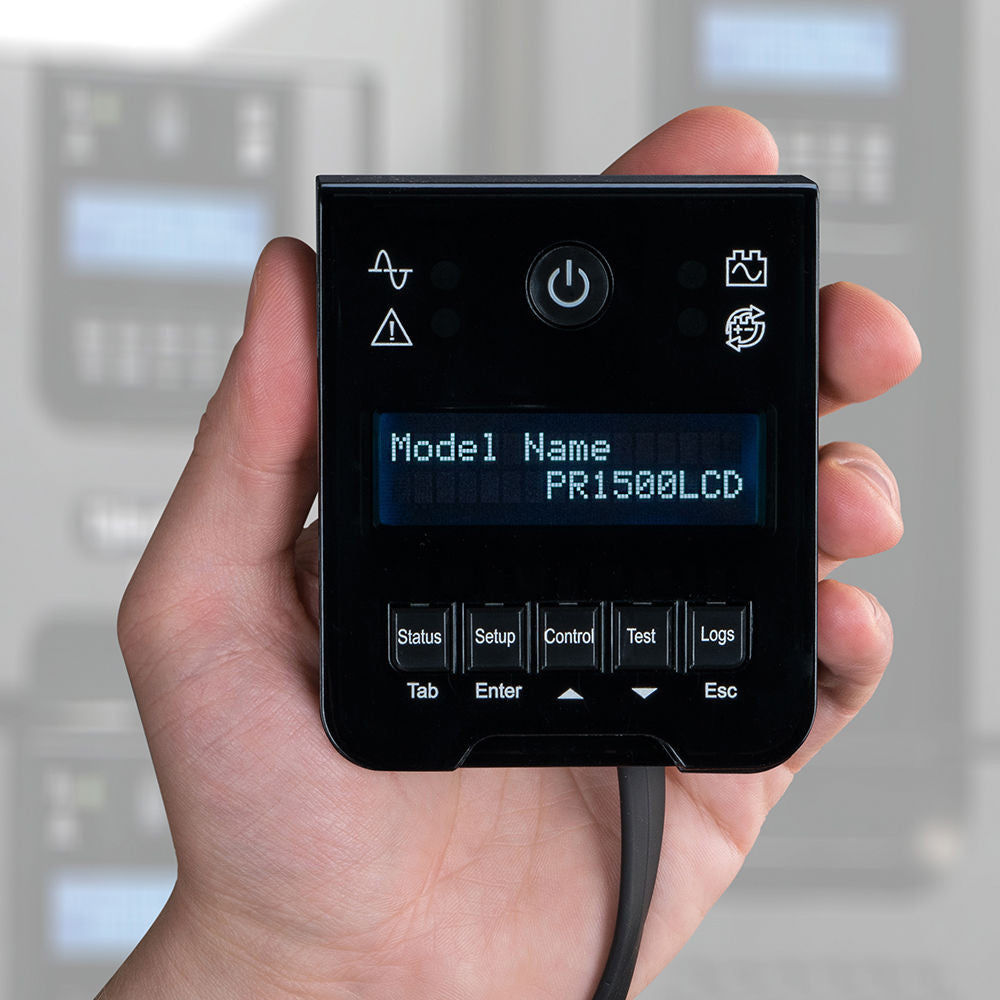

Extendable LCD Control Panel
- Can be removed and relocated for easy viewing using the attached 4.5' cable
- Provides easy access to view status or change settings on the UPS when it's installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor
PowerPanel Business Edition Software
- Provides IT professionals with tools for monitoring and managing the UPS and backup power
- Offers remote management functionality
UPC: 649532611881
In the Box

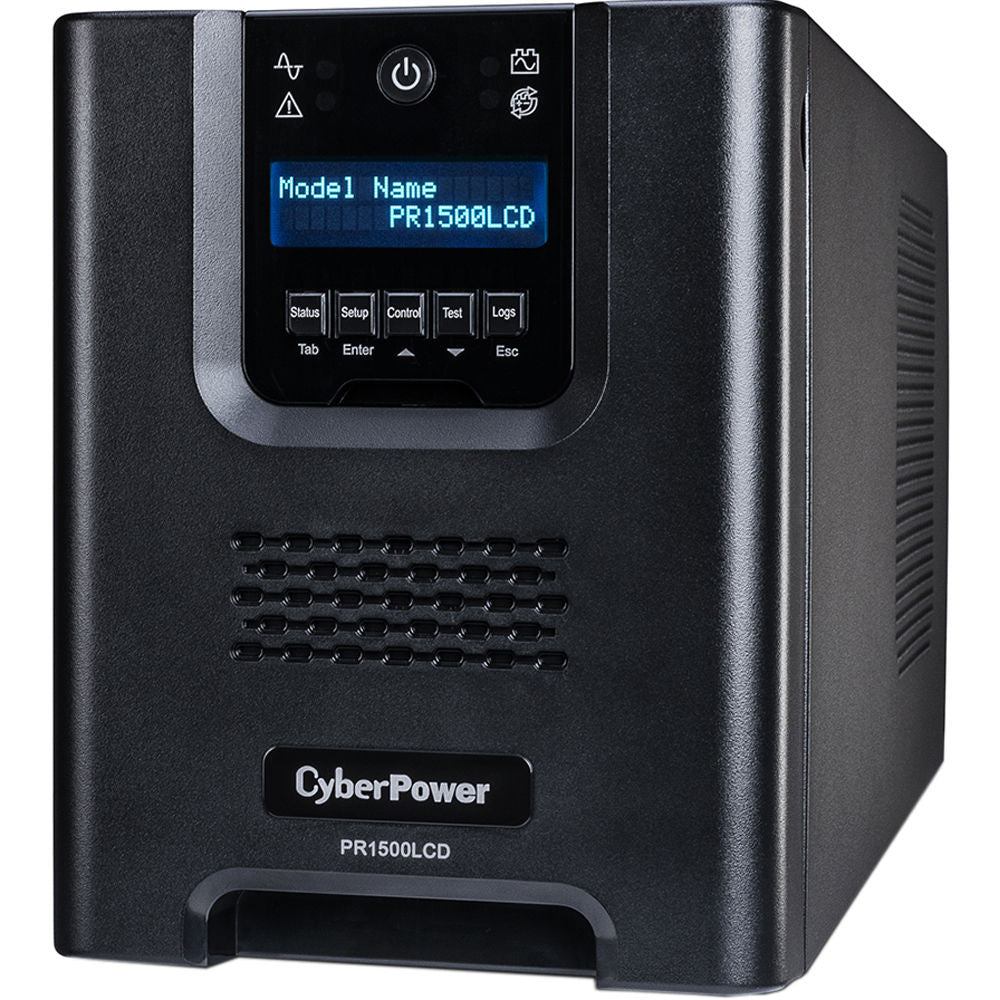

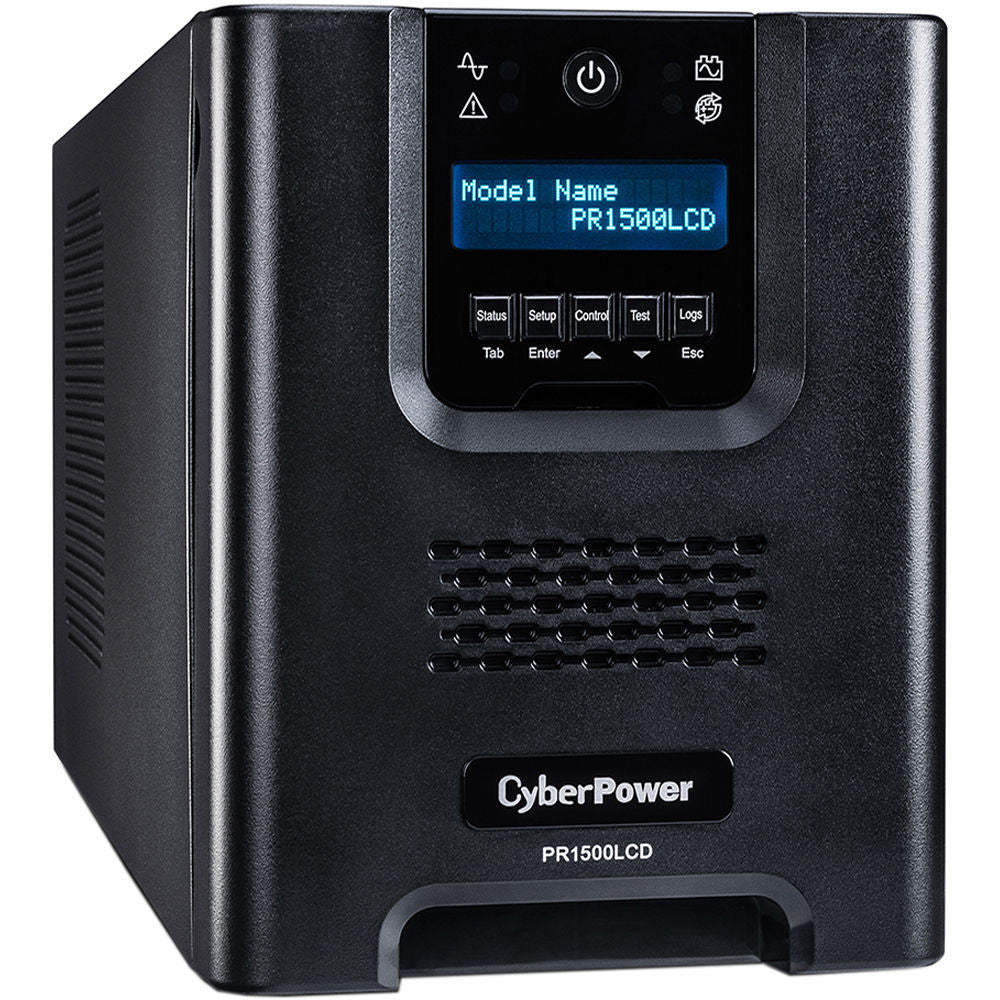

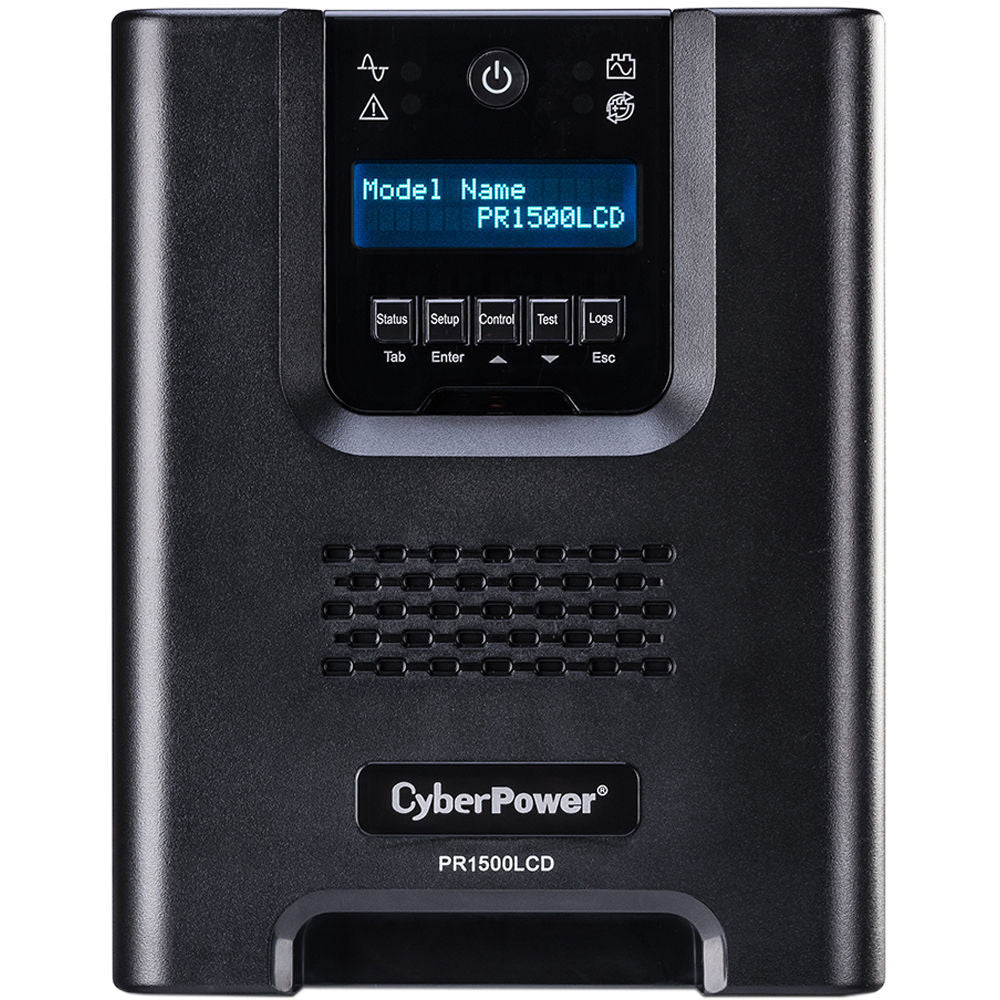

CyberPower PR1500LCDN Mini-Tower UPS (1500VA/1050W)
- Emergency Power Off Cable (Gray)
- PowerPanel Business Edition Software CD
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- RMCARD205 Remote Monitoring & Management Card
- Limited 3-Year Warranty
| General | |
|---|---|
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS bypass technology |
| Input | |
|---|---|
| Voltage | 120 VAC |
| Input Frequency | 47 to 63 Hz (auto-sensing) |
| Input Voltage Range | 102 to 131 VAC |
| Adjustable Voltage Range | 75 to 154 VAC |
| Plug Type | NEMA 5-15 |
| Cord Length | 6' (1.82 m) |
| Output | |
|---|---|
| Apparent Power | 1500 VA |
| Wattage | 1050 W |
| Automatic Voltage Regulation (AVR) | Boost 1: +30%, Boost 2: +14% Buck: -12% |
| On Battery Voltage | 120 VAC � 5% |
| On Battery Frequency | 50/60 Hz � 0.1 Hz |
| On Battery Waveform | Sine wave |

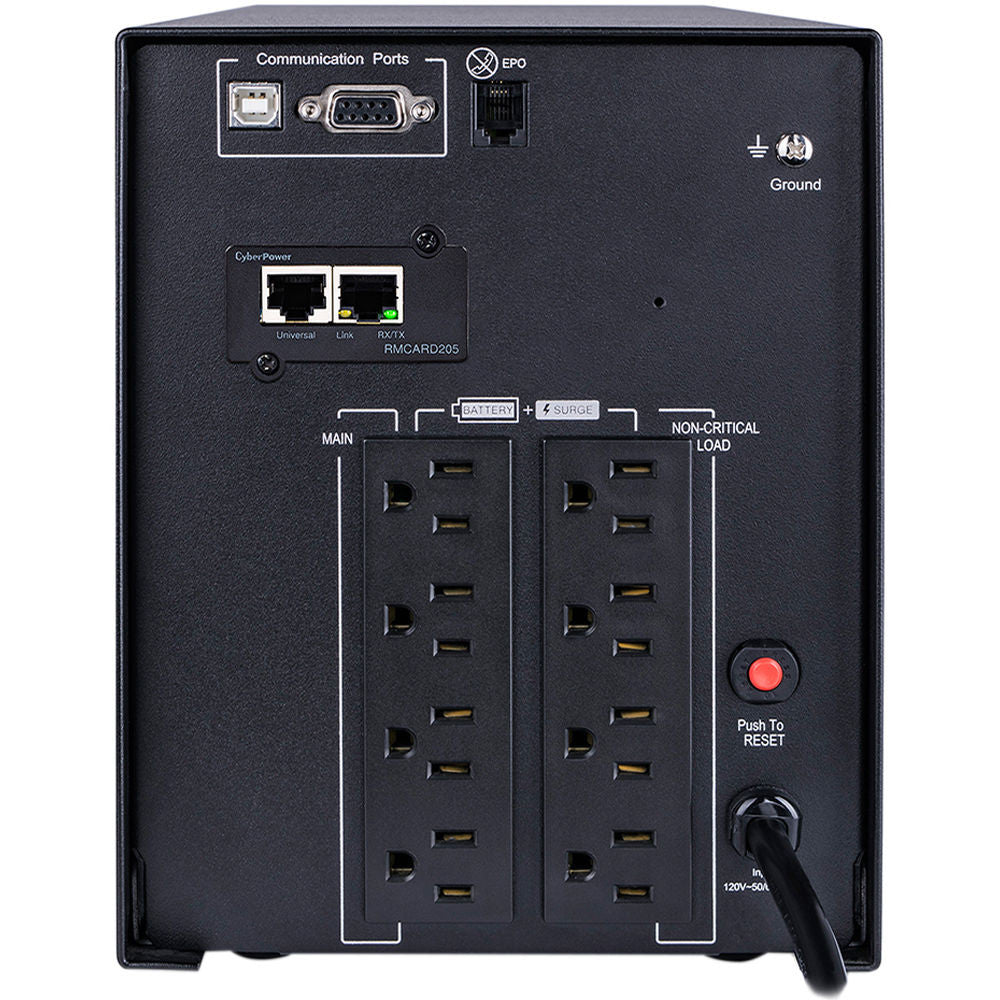

| Outlets | Total: 8 Battery & Surge Protected: 8 Critical Load: 4 Non-Critical Load: 4 |
| Outlet Type | NEMA 5-15R |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer time | 4 to 8 ms |
| Battery | |
|---|---|
| Runtime | 24 minutes at half load 8 minutes at full load |
| Battery Type | Sealed lead-acid |
| Battery Size | 12 V / 17 Ah |
| Hot Swappable | Yes |
| Replacement Battery | 1 x RB12170X2A |
| User Replaceable | Yes |
| Battery Quantity | 2 |
| Typical Recharge Time | Quick Charge Mode: 3 hours Eco Mode: 8 hours |
| Surge Protection / Filtering | |
|---|---|
| Surge Suppression | 1030 joules |
| Management and Communications | |
|---|---|
| LCD | Yes |
| Diagnostics | Multi-function LCD Diagnostic Display: 41 different settings or status options via the UPS Status menu, UPS Setup & Control menus, and run Testing/Battery Calibration menus |
| HID Compliant USB Port | Yes |
| Serial Port | Yes (standard with 4.5' / 1.37 m) cable |
| EPO Port | Yes |
| Dry Contact Switch | Yes |
| Management Cable | USB cable, Serial cable, EPO cable |
| LED Indicators | Power On, On-Batt, Wiring Fault, Replace Battery |
| Alarms | Audible: Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Software | PowerPanel Personal edition |
| SNMP/HTTP Remote Monitoring | Yes |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Humidity | Operating/Non-Operating: 0 to 95% non-condensing |
| Storage Temperature | 5 to 113�F (-15 to 45�C) |
| Maximum Operating Elevation | 0 to 10,000' (0 to 3000 m) |
| Maximum Storage Elevation | 0 to 50,000' (0 to 15000 m) |
| Thermal Dissipation | Online: 113 BTU/hour |
| Audible Noise | At 5' / 1.52 m from Surface of Unit: 34.5 dB |
| Certifications | |
|---|---|
| Safety | UL1778, CSA C22.2 NO.107.3 FCC DOC Class A |
| Compliance | RoHS |
| Physical | |
|---|---|
| Form Factor | Mini-tower |
| Dimensions (W x H x D) | 6.7 x 8.7 x 17" (170.2 x 221.0 x 431.8 mm) |
| Weight | 54 lb (24.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 58.5 lb |
| Box Dimensions (LxWxH) | 22.5 x 14.0 x 12.5" |
