CyberPower PR1500 Overview
The PR1500LCD Smart App Sinewave UPS from CyberPower is a mini-tower device with line-interactive topology that provides battery backup and power protection via sine waveform output, plus surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. It provides an output capacity of 1500 VA / 1500W and features an input voltage range of 75-154 VAC at 47-63 Hz using Automatic Voltage Regulation (AVR) to help correct minor power fluctuations without switching to battery power. This Smart App UPS has an integrated LCD panel that displays immediate, detailed information about its battery and power conditions to alert users to potential problems before they can affect critical equipment and cause downtime. The panel may be removed and relocated using its attached 4.5' cable.

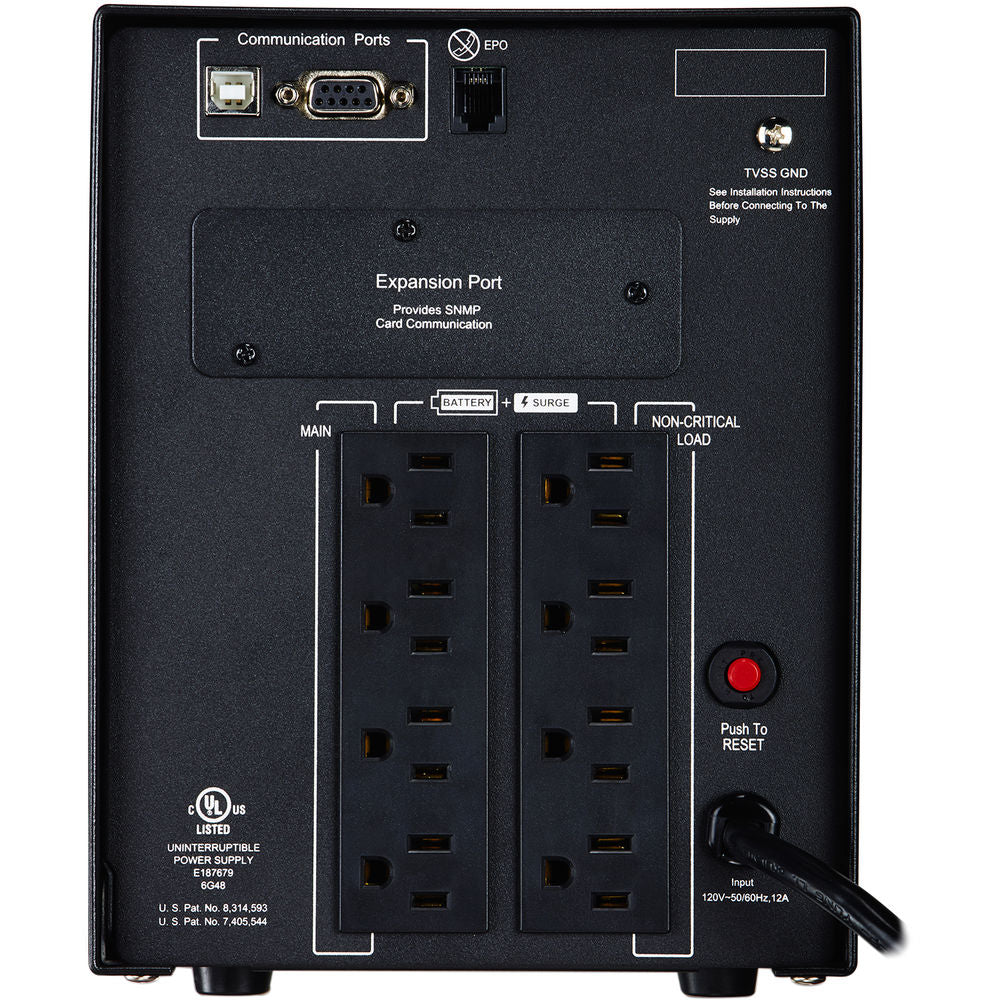

When running with a full load, this UPS can power devices for up to 4.7 minutes and when running with a half load, it can power devices for up to 15.1. It can be recharged in three to eight hours and offers eight NEMA 5-15R outlets, all of which are equipped with battery and surge protection. The UPS can absorb up to 1030 joules to keep your devices safe against surges and spikes. Other connections offered are a NEMA 5-15P input plug with a 6' cord, serial, USB Type-B, and Emergency Power Off (EPO).
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help lower energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $375,000.
General Features
Battery Backup
The battery backup supplies power long enough for equipment to properly shut down when utility power fails. This helps prevent the loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Surge protection helps divert excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line Interactive Topology
A line interactive UPS has an autotransformer that regulates low-voltage (brownouts) and over-voltage (spikes) conditions without having to switch to battery.
Automatic Voltage Regulation (AVR)
AVR provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Sine Wave Output
A sine wave output provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
GreenPower UPS Bypass Design
GreenPower UPS Bypass Design is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

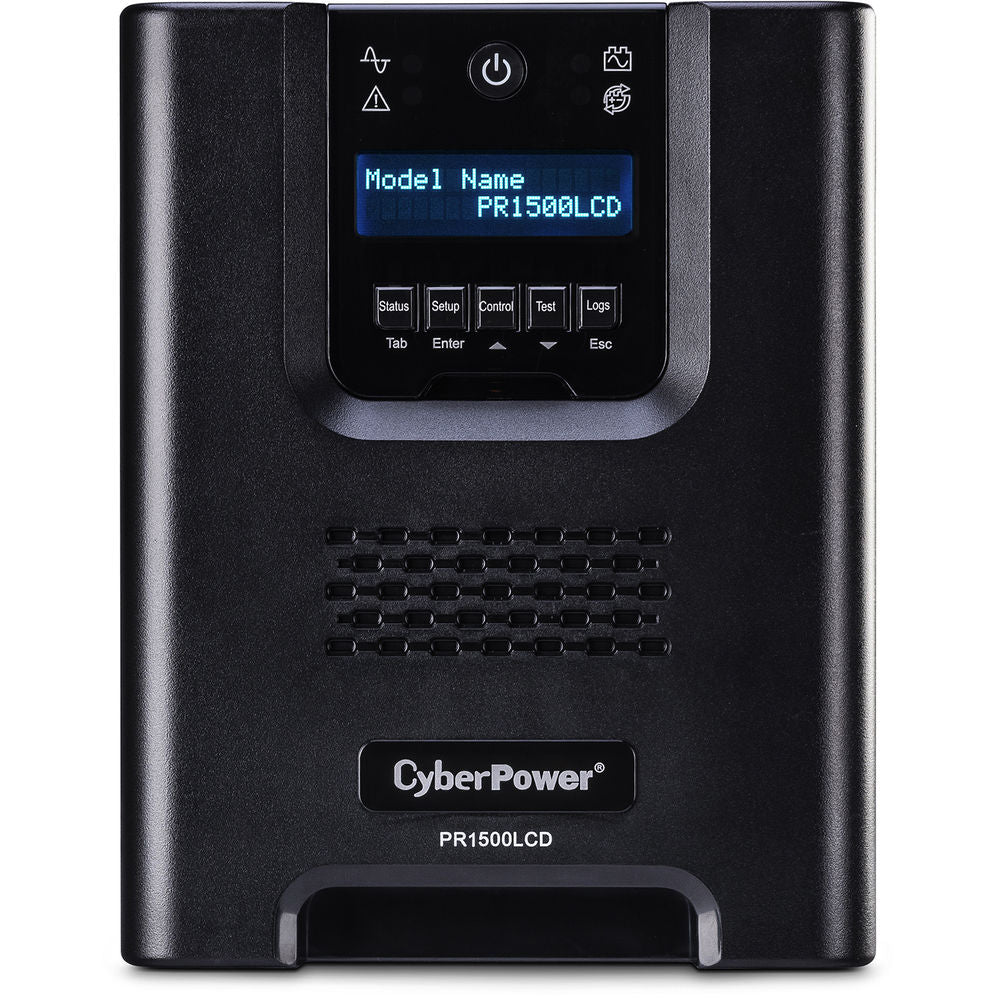

Extendable LCD Control Panel
This can be removed and relocated for easy viewing using the attached 4.5'. cable. This feature provides easy access to view status or change settings on the UPS when it's installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.
PowerPanel Business Edition Software
PowerPanel Business Edition Software provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality and is available as a free download.
Cisco Compatible
This CyberPower UPS system is a Cisco EnergyWise compliant end device.
Limited 3-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
![]()
UPC: 649532602513
In the Box
- CyberPower PR1500LCD Smart App Sinewave UPS
- Emergency Power Off Cable
- DB-9 Serial Cable
- USB Type-B to Type-A Cable
- Limited Lifetime $375,000 Connected Equipment Guarantee
- Limited 3-Year Warranty
CyberPower PR1500 Specs
General
| Total Outlets |
8 x NEMA 5-15R |
| Protected Outlets |
8 x NEMA 5-15R (Battery and Surge) |
| Plug Type |
NEMA 5-15P |
| SmartSlot Interface |
1 |
| Communications |
USB via Type-B
Serial via DE-9/DB-9 |
| Emergency Power Off (EPO) Support |
Yes |
| Topology |
Line Interactive |
| Transfer Time |
4 ms |
Power
| Surge Energy Rating |
1030 Joules |
| Maximum Wattage |
1500 W |
| Nominal Input Voltage |
120 VAC |
| Input Voltage Range |
78 to 149 VAC |
| Input Voltage Adjustable Range |
75 to 154 VAC |
| Input Frequency |
50/60 Hz ± 3 Hz |
| Nominal Output Voltage |
120 VAC |
| Output Frequency |
50/60 Hz ± 0.1 Hz |
| Load Capacity |
1500 VA |
| Waveform |
Sine Wave |
Battery
| Battery Capacity |
204 VAh |
| Chemistry |
Lead-Acid |
| Full-Load Runtime |
4.7 Minutes |
| Half-Load Runtime |
15.1 Minutes |
| Recharge Time |
3 to 8 Hours |
| User Replaceable |
Yes |
| Replacement Battery |
RB12170X2A |
| Hot-Swap Support |
Yes |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% |
| Operating Altitude |
0 to 10,000' / 0.0 to 3048 m |
| Storage Altitude |
0 to 50,000' / 0.0 to 15,240 m |
| Certifications |
FCC-A, RoHS, UL, cUL, as per Manufacturer |
Physical
| Cable Length |
6' / 1.8 m |
| Rackmount Size |
None |
| Dimensions (W x H x D) |
6.7 x 8.7 x 17" / 17 x 22.1 x 43.2 cm |
| Weight |
54 lb / 24.5 kg |
Packaging Info
| Package Weight |
60.5 lb |
| Box Dimensions (LxWxH) |
22.63 x 13.75 x 12.5" |
