CyberPower PDU44006 Overview
-
1Description
-
2Power Distribution
-
3Local & Remote Access
-
4Additional Features

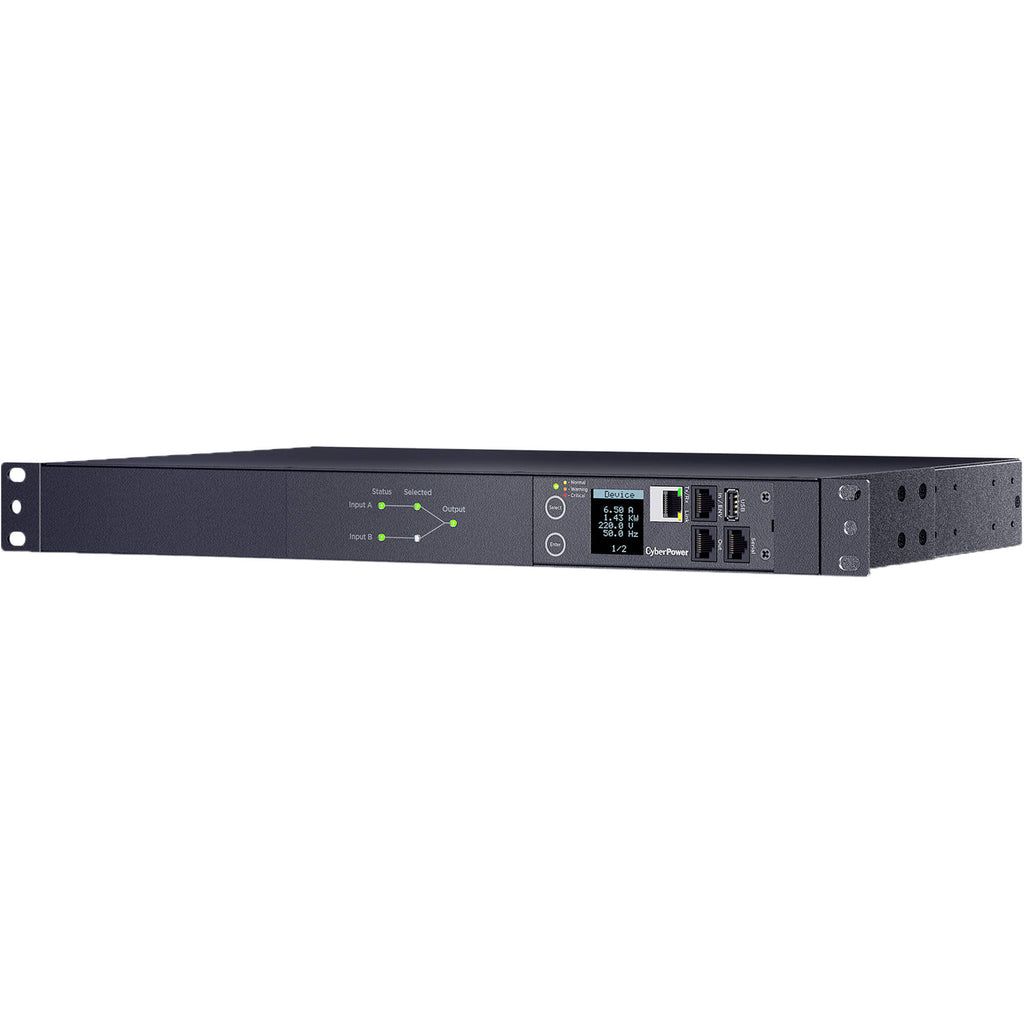

Streamline your network cabinet setup, deliver power to your devices, and monitor your equipment on-site or remotely with the CyberPower PDU44006 Switched ATS 10-Outlet 1 RU Power Distribution Unit.

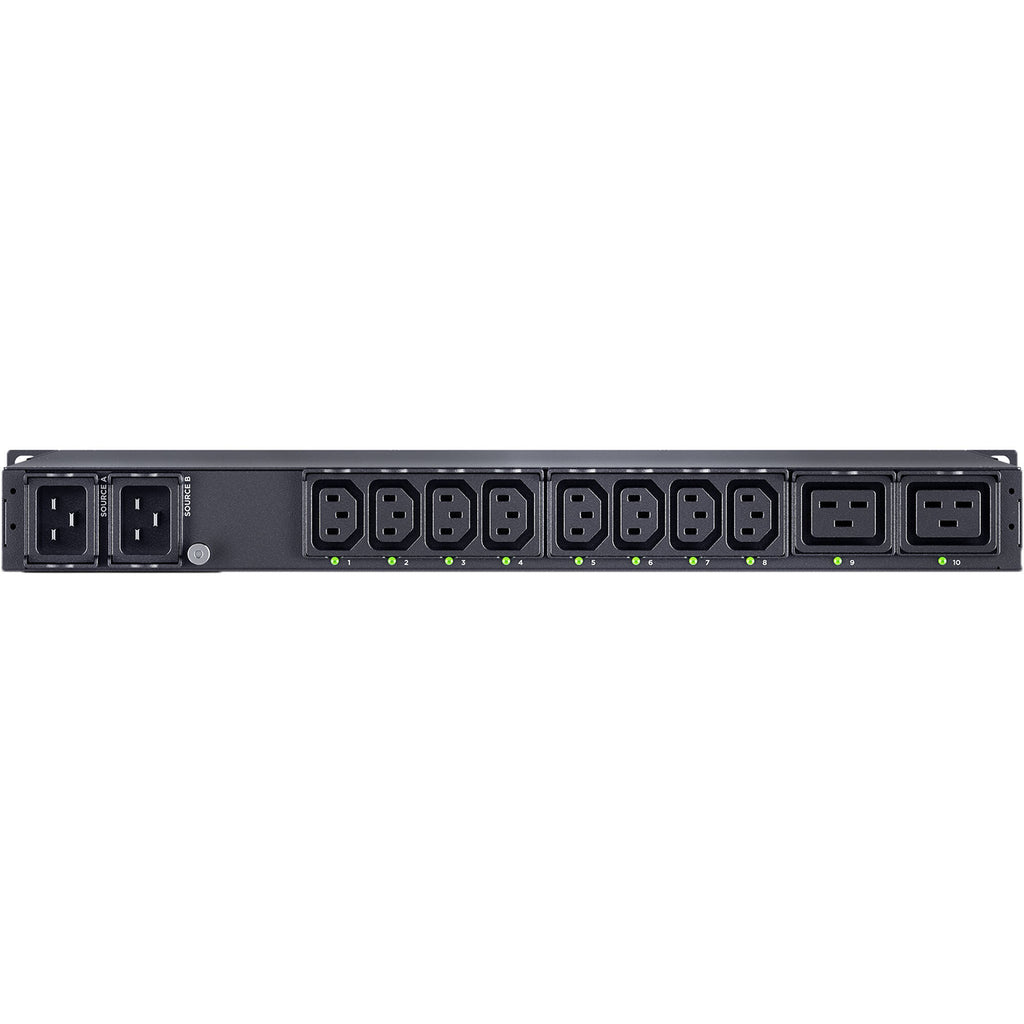

Equipped with eight IEC-320 C13 and two IEC-320 C19 outlets, this PDU lets you power multiple devices easily. Two NEMA L6-20P plugs can connect to main and backup power sources, ensuring your system remains powered in the event of a potential failure. RJ45 ports expand the utility of the PDU, enabling you to monitor your system, control power remotely, and receive automated notifications no matter where you are. A multifunction LCD display provides you with convenient system readouts and can be customized to your liking with selectable background colors, built-in web interface, and power event notifications. Included hardware enables you to install the PDU44006 horizontally in your server rack and cord retention brackets keep cables organized for a neat and orderly setup.
The PDU44006 delivers AC power to servers, equipment, and connected devices with 200 to 240 volts input/output at 20 amps (16A derated). Dual power cords can be plugged into separate compatible sources to ensure continuous access in the event of a failure.
Easily access the PDU from local and remote access points to control outlet power, restart outlets and devices, schedule power, disable unused outlets, and view system vitals.
Upgradable firmware enables you to download system improvements
Daisy-chain capability allows you to link and manage up to four PDUs from a single IP
Switch-free design safeguards against accidental power shutdowns
Network-grade connectors ensure efficient distribution within IT and industrial environments
Durable metal housing protects the PDU from damage and abrasions
Optional environmental sensor allows you to monitor the operating environment
Table of Contents
- Description
- Power Distribution
- Local & Remote Access
- Additional Features
CyberPower PDU44006 Specs
| Form Factor |
Rackmount (with Included Hardware) |
| Type |
Distributor |
| Rated Current |
20 A |
| Number of Circuits |
Not Specified by Manufacturer |
| Metering |
None |
| Battery Backup |
No |
| Typical Backup Runtime |
Not Specified by Manufacturer |
| Integrated Lamps |
None |
Connections
| Outlets |
8 x IEC-320 C13
2 x IEC-320 C19 |
| Wall Plug Type |
2 x NEMA L6-20P |
| USB Ports |
1 x USB Type-A |
| Ethernet |
4 |
| Coaxial |
None |
| RJ11 |
None |
| Remote |
None |
| Lamp Connectors |
None |
Electrical
| AC Input Power |
200 to 240 VAC, 50 / 60 Hz |
| Output Voltage |
200 to 240 VAC |
| DC Output Power |
Not Specified by Manufacturer |
| Output Current |
20 A |
| Load Capacity |
Not Specified by Manufacturer |
| Sequencing Delay |
None |
Protection & Conditioning
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
5 to 131°F / -15 to 55°C |
Physical
| Rackmount Size |
1 RU |
| Cable Length |
10' / 3 m |
| Cable Management |
Yes |
| Dimensions |
17.05 x 8.45 x 1.75" / 43.31 x 21.46 x 4.45 cm |
| Weight |
8.3 lb / 3.8 kg |
Packaging Info
| Package Weight |
14.595 lb |
| Box Dimensions (LxWxH) |
21.3 x 16.2 x 4.8" |
