Description
- 500VA / 300W Simulated Sine Wave UPS
- AVR & GreenPower UPS
- EMI/RFI Filters
- Microprocessor-Based Digital Control
- Multifunction LCD Display
- USB Connectivity
- Audible Alarms
- Resettable Circuit Breaker
- Windows Compatibility

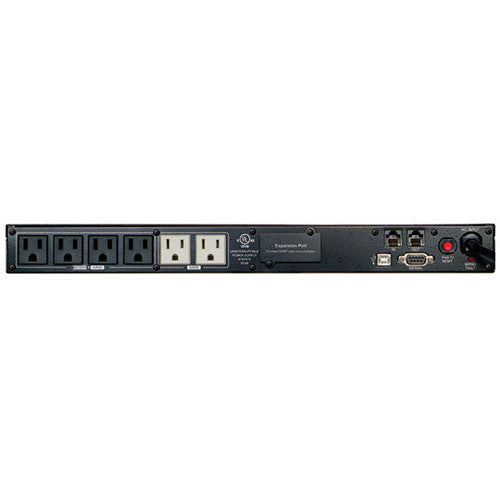

- 6 Outlets / USB & Serial Ports

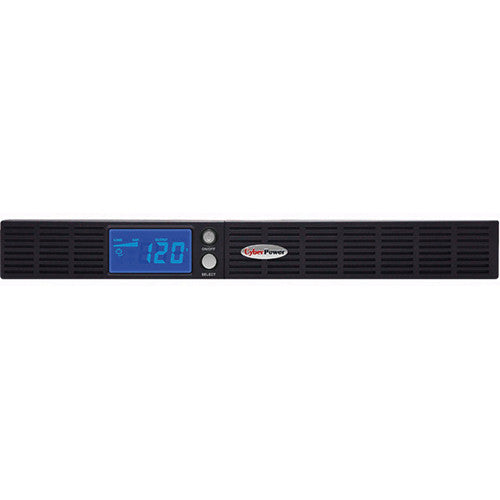

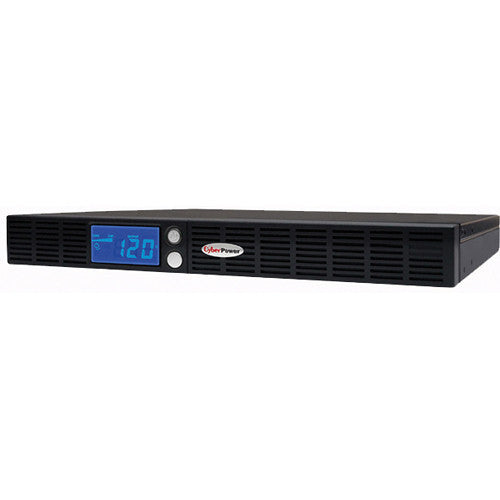

The OR500LCDRM1U Smart App LCD UPS from CyberPower diagnostic panel gives administrators immediate, real-time information about vital UPS performance factors. The UPS has six (6) outlets, USB/Serial communication ports, and RJ-11/RJ-45 network protection.
The device is designed to protect office servers, PCs, graphic workstations, commercial electronics and equipment without active PFC power supplies. Automatic Voltage Regulation (AVR) ensures that all your connected equipment is receiving clean power and maintains a safe voltage level.
Finally, the UPS system is ENERGY STAR qualified with patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
- Automatic Voltage Regulation (AVR)
- AVR technology will stabilize the AC signal and maintain a safe voltage level without switching to battery-mode. This conserves battery life, and delivers a cleaner signal to your connected equipment
- EMI/RFI Filters
- Provides shielding against electromagnetic interference and radio frequency signals. Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics
- Microprocessor-Based Digital Control
- Digital routing is maintained through a network of integrated circuitry and discrete values used for internal system processing, which significantly increases efficiency and responsiveness

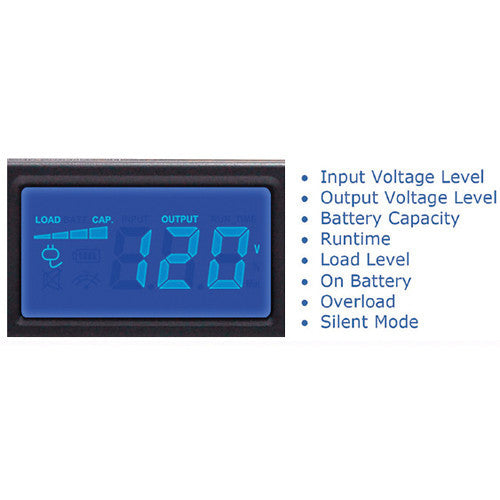

- LCD Diagnostic Display
- The front panel LCD can be used to display detailed information on the status of the UPS and current power conditions. The LCD displays 11 different diagnostics: Input/Output voltage, battery capacity, estimated runtime, load level, on battery, overload, silent mode, and more
- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS X
- Audible Alarms
- Audible tones identify when the unit is running off battery power, unit overloads, and low battery
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Metal Housing
- Rigid metal construction allows for placement in areas with a demanding environment
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- This UPS is certified by the FCC, cUL, and UL
UPC: 649532715015
| Topology | Line-interactive |
| Input | Voltage: 90-140VAC Frequency: 57-63Hz Plug Type: NEMA 5-15P Plug Style: Straight Cord Length: 10' (3 m) |
| Output | VA: 500 Watts: 300 Automatic Voltage Regulation (AVR): Yes On Battery Voltage: 120VAC ±10% On Battery Frequency: 60Hz ±1% On Battery Waveform: Simulated sine wave Outlet Type: NEMA 5-15R Outlets: 6 Battery and Surge Protected Outlets: 4 Surge-Only Protected Outlets: 2 Overload Protection: Internal circuitry limiting / circuit breaker Transfer Time: 4ms |
| Surge Energy Rating | 1030 joules |
| Battery | Runtime at Half Load (min): 12 Runtime at Full Load (min): 3 Battery Type: Sealed lead-acid Battery Size: 6V/7AH User Replaceable: Yes Typical Recharge Time: 8 hours Replacement Battery: RB0670X2 Battery Quantity: 2 |
| Surge Protection and Filtering | Maximum Surge Current: 6500 amps Phone RJ-11 / Ethernet RJ-45: 1-in, 1-out (Combo) |
| Management and Communications | Multifunction Diagnostic LCD: Toggle Status Display Includes: Current/Load level, Runtime, Battery level, Input voltage, Output voltage, Battery in use, Overload, Silent mode, Normal mode HID Compliant USB Port: Yes Serial Port: Yes Management Cable: USB cable, serial cable Audible Alarms: On battery, low battery, overload Software: PowerPanel Business Edition SNMP / HTTP Remote Monitoring: Yes, with optional RMCARD202 |
| Agency Certifications | Safety: UL1778, cUL 107.1, FCC DOC Class B Environmental: RoHS compliant |
| Form Factor | 1U rack |
| Environmental Requirements | Operating Temperature: 32-95°F (0-35°C) Operating Humidity: 0-95% non-condensing |
| ENERGY STAR Qualified | Yes, GreenPower UPS bypass technology |
| Dimensions (WxHxD) | 17.3 x 1.8 x 9.3" (439.4 x 45.7 x 236.2 mm) |
| Weight | 18.2 lb. (8.2kg) |
| Packaging Info | |
|---|---|
| Package Weight | 21.0 lb |
| Box Dimensions (LxWxH) | 21.0 x 14.0 x 5.6" |
In the Box
CyberPower OR500LCDRM1U Smart App LCD UPS
- $300,000 Lifetime Connected Equipment Guarantee
- 3-Year Limited Warranty
