Description
CyberPower OL5KRTHDL Overview

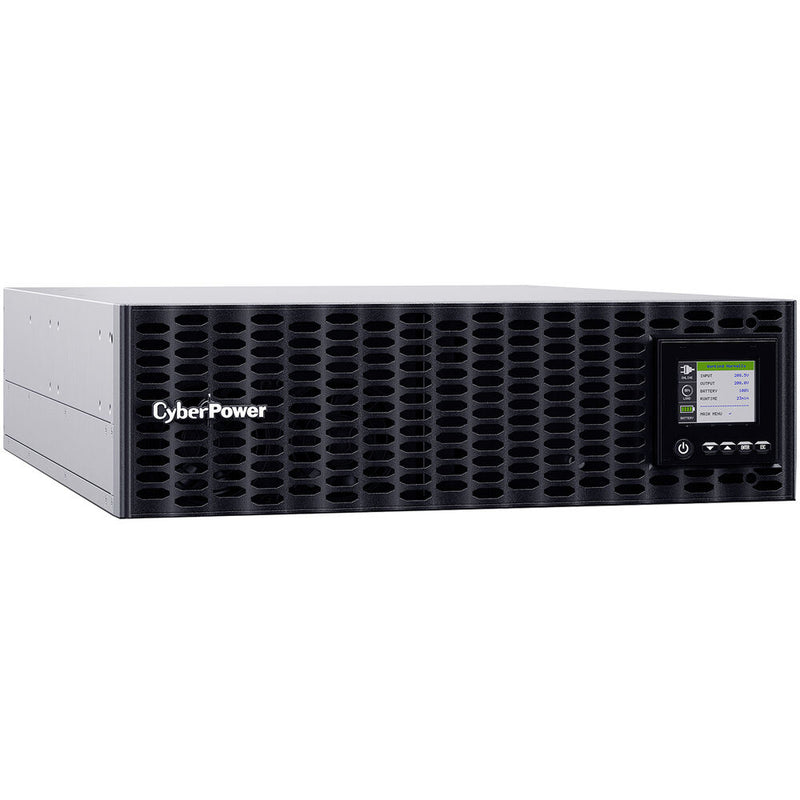

Built with a preinstalled RMCARD205 network management card that lets you remotely manage, monitor, and control your UPS using a standard web browser or network management system (NMS), the OL5KRTHDL Smart App Online UPS from CyberPower features a high-density design that offers more power in a 3 RU rack space or as a tower. It has also been built with double-conversion topology that provides battery backup and power protection via sine waveform output, plus surge protection to critical applications and equipment that require seamless power correction. Optional Extended Battery Module (EBM) expands runtime, and Fast Charge Technology charges the battery up to 90% in four hours. It comes equipped with an output capacity of 5000VA / 5000W, an input voltage range of 120-280 VAC @ 40-70 Hz, and integrated circuitry for EMI/RFI filters. This Smart App UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the load/current level, runtime, battery level, temperature, input voltage, output voltage, battery in use, and more.

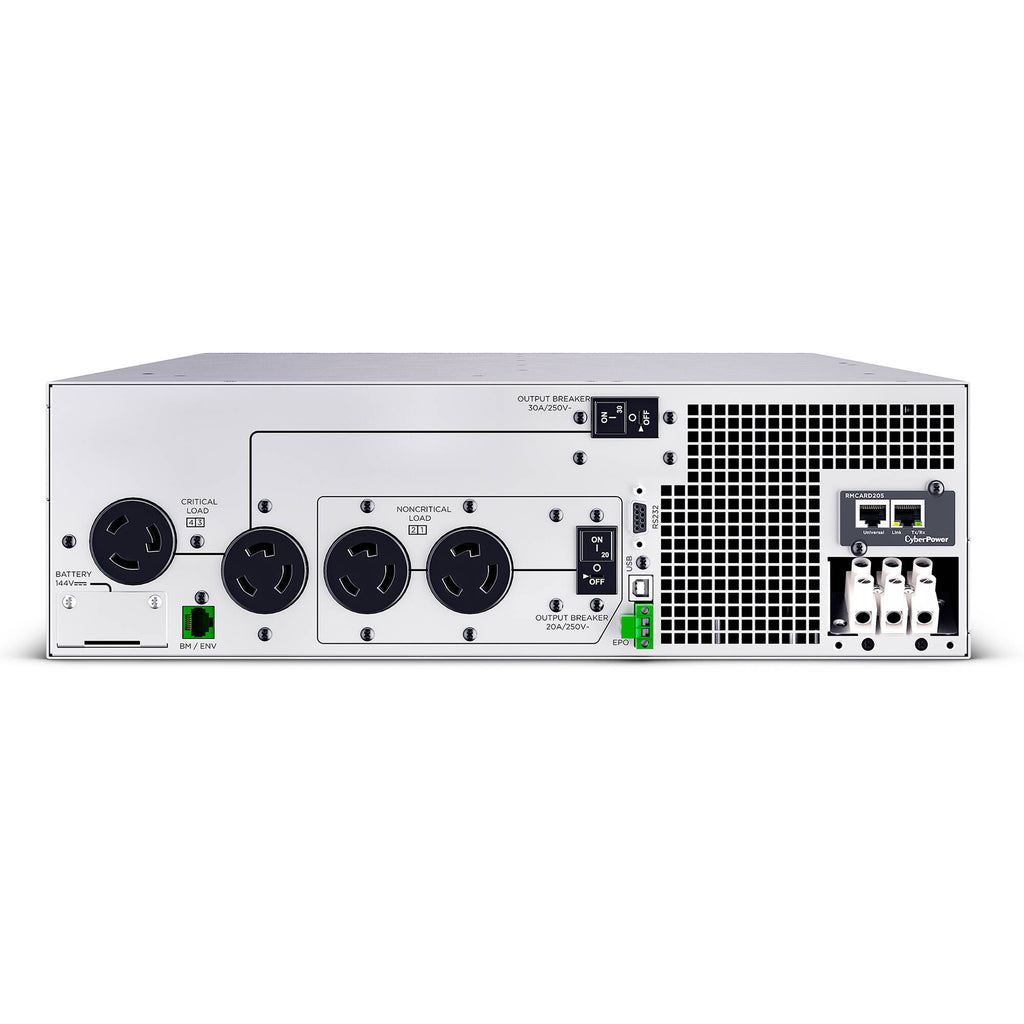

When running a full load, this UPS can power devices for up to 4.9 minutes. When running a half load, it will last for up to 14.3 minutes. The OL5KRTHDL offers two NEMA L6-20R outlets and two NEMA L6-30R outlets with up to 2430 joules for keeping your devices safe against surges and spikes. Other connections offered are a hardwire plug with a NEMA L6-30P power cord option, RS-323 serial, USB-B, and RJ45 Ethernet. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000.
Typical Applications
- Core Network Equipment
- Corporate Servers
- Enterprise Servers
- Hyperconverged Infrastructure (HCI)
- Server Rooms
- Server Virtualization Infrastructures
- Storage Systems
- VoIP Infrastructure
Double-Conversion Topology
This provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitiveelectronic devices.
Sine Wave Output
This keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
Full Matrix LCD Control Panel
An auto-rotating, multifunction color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). The LCD provides UPS status, controls, most recent event logs, and diagnostics.
Toolless Front Panel
A toolless front panel removal makes battery replacement easier.
Hot-Swappable Batteries
Hot-swappable batteries keep equipment running by eliminating downtime during UPS power maintenance.
Extended Battery Module (EBM)
Extend the runtimes of this UPS by adding up to 10 EBMs.
Smart Battery Management (SBM)
Smart Battery Management improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltage of batteries to increase battery life.
Fast Charge Technology
Fast charging allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. It restores the charge from 0 to 90% within four hours, regardless of the number of EBMs.
PowerPanel Business Software
This software provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
RMCARD205 Network Card
This enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
Hanging Rackmount Rail
This ensures easy installation and slides out safely with a safety catch.
Tamperproof Input Circuit Breaker
This ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.
EMI/RFI Filters
These filters prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
ENERGY STAR Certified & GreenPower UPS ECO Mode
This improves UPS efficiency up to 96% reducing electrical and cooling costs.
Upgradeable UPS Firmware
This keeps equipment running by eliminating downtime during UPS power maintenance.
Multiple Language Options
The LCD control panel can be configured in English, Spanish, French, and German for ease of use.
Critical & Non-Critical Load Banks
This maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.
Emergency Power Off (EPO)
Emergency Power Off (EPO) allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible
This ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode
Converter Mode provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50 or 60 Hz output on the LCD control panel.
USB & Serial Connectivity
This enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
Audible Alarms
Audible alarms identify when the UPS is running on battery power, overloaded, or has a low battery.

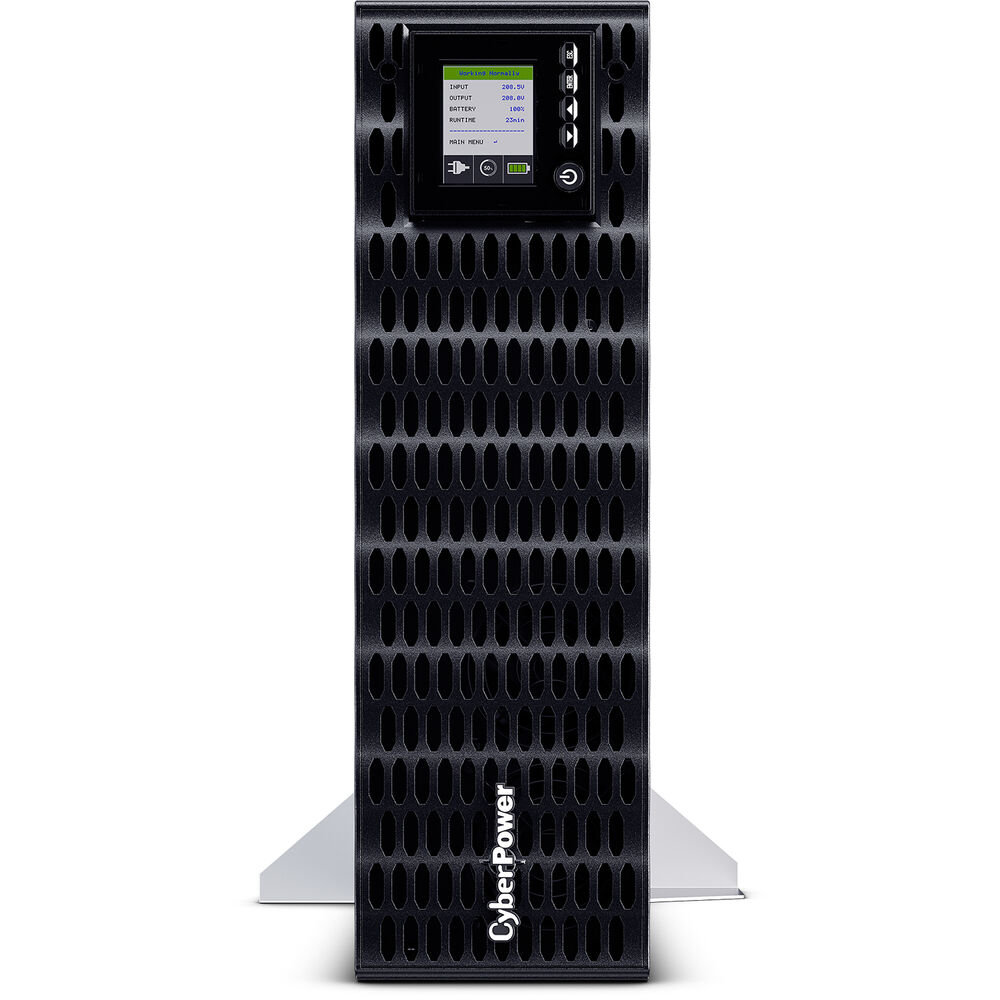

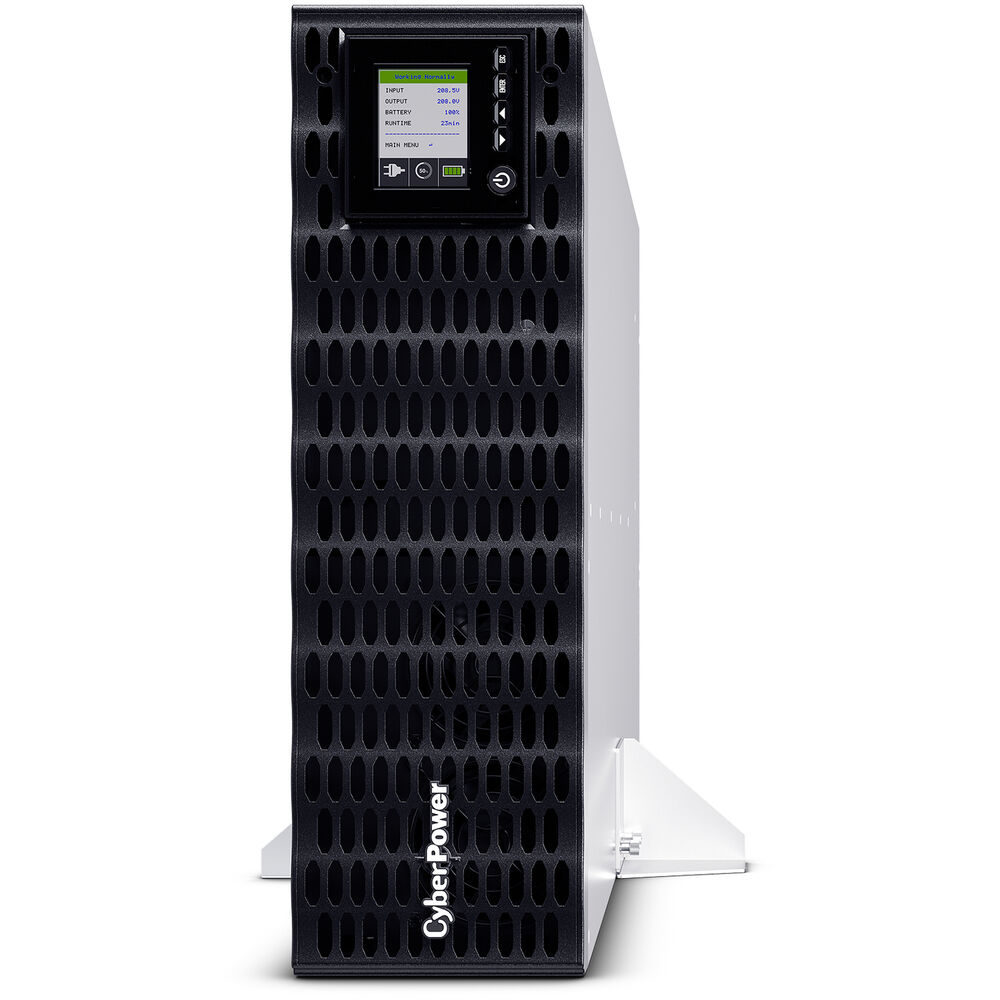

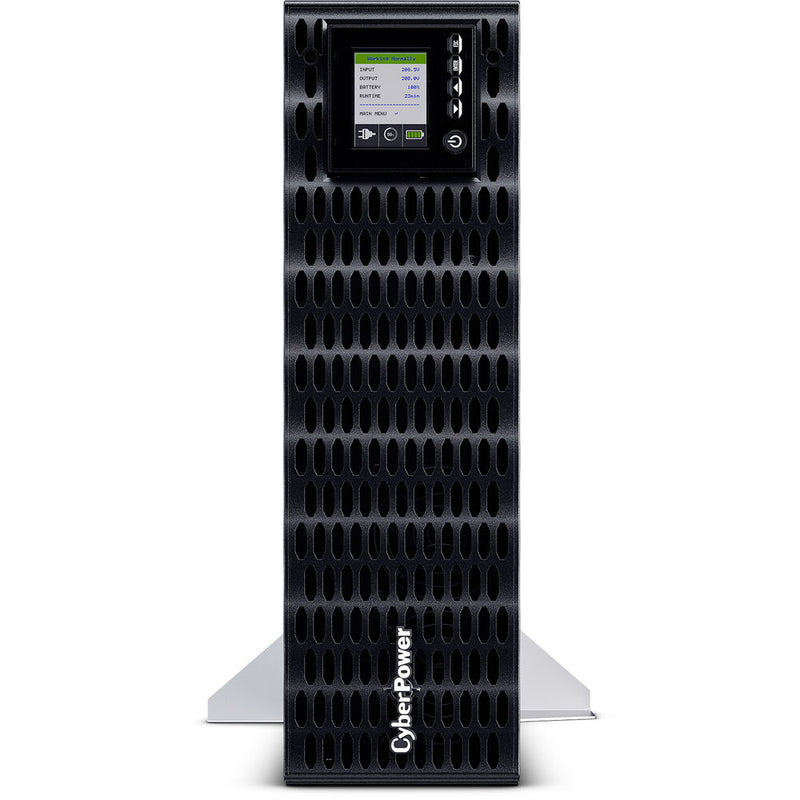

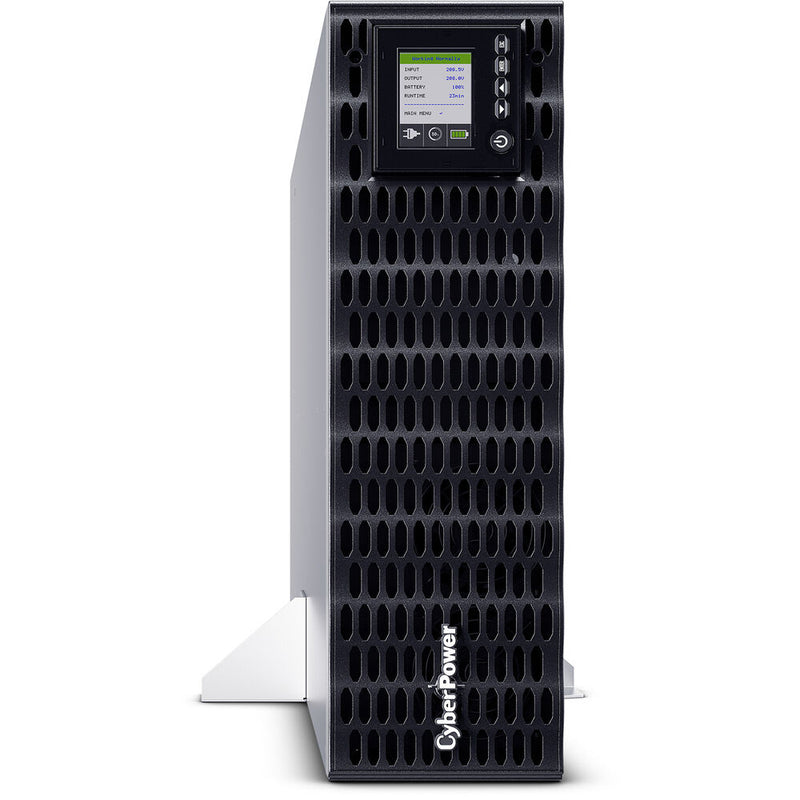

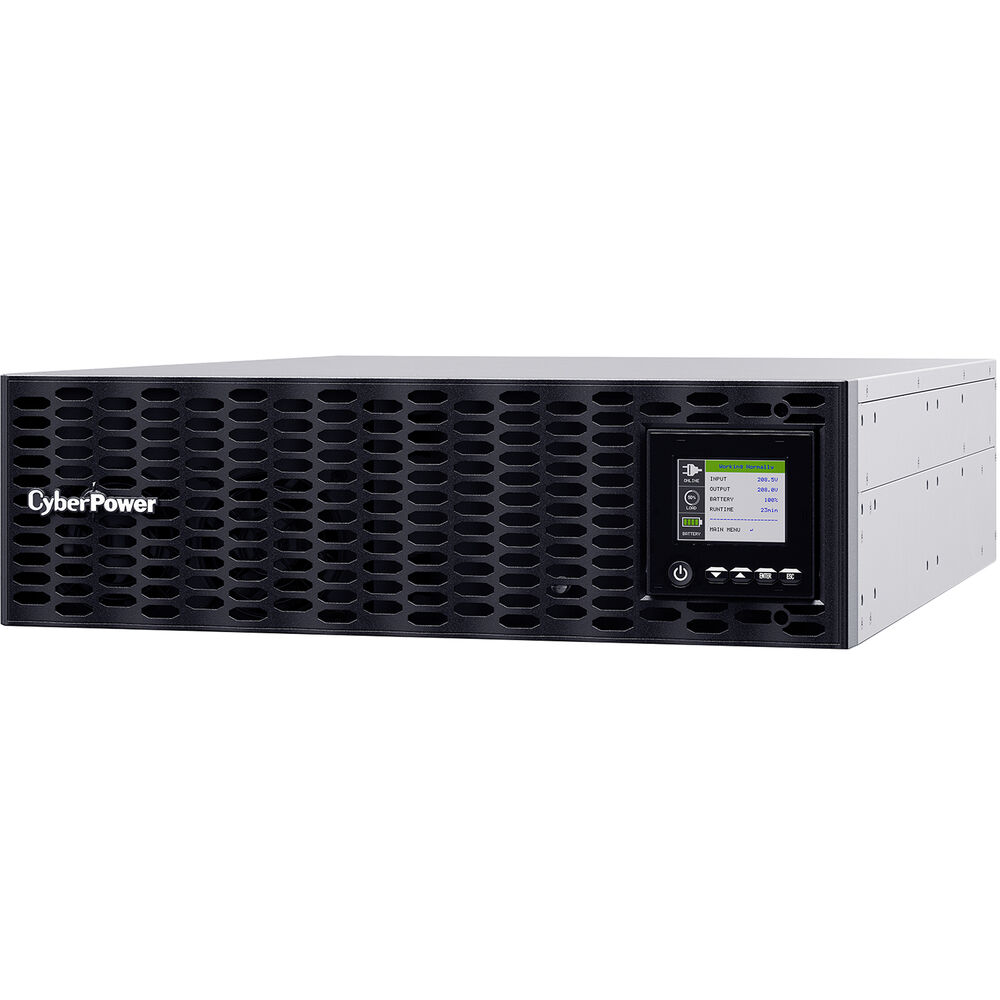

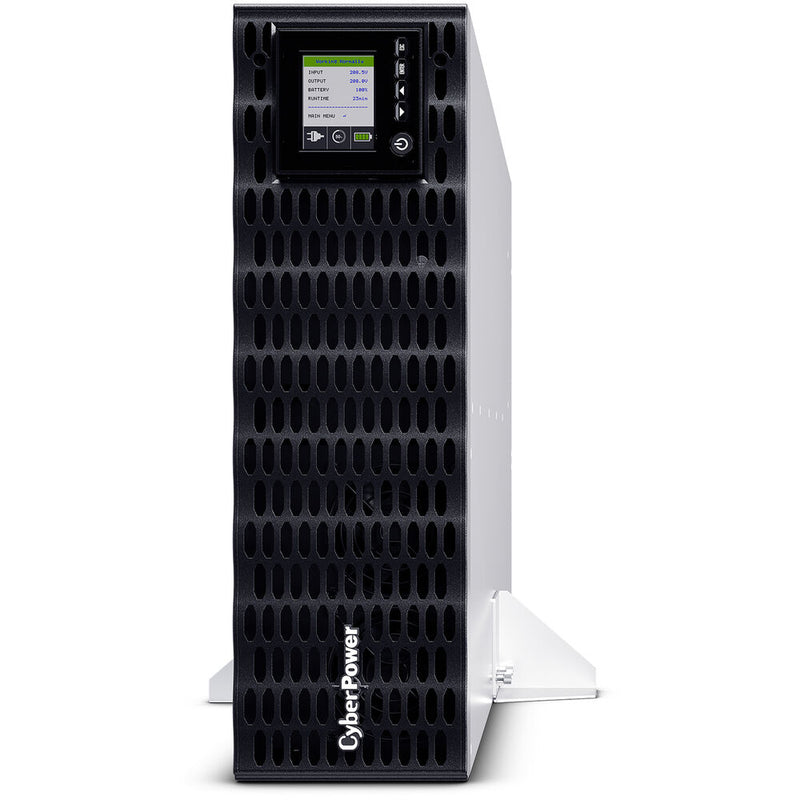

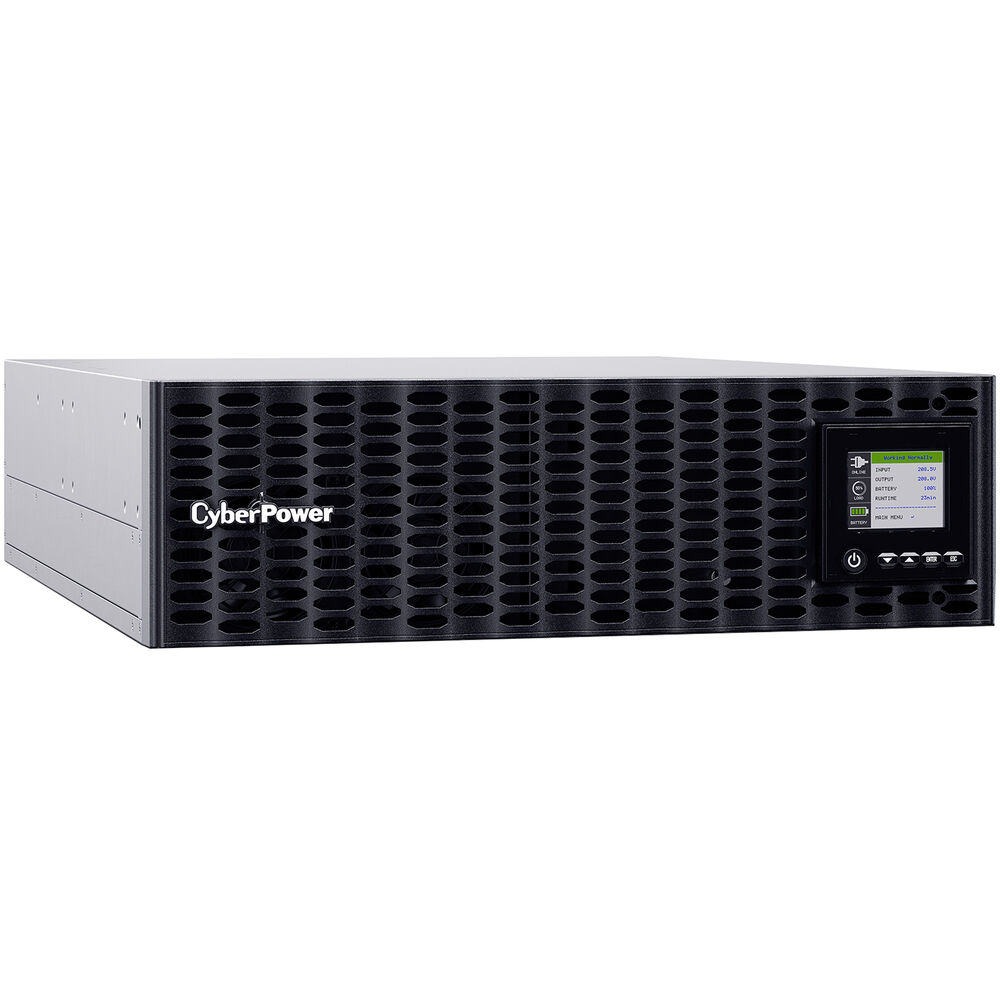

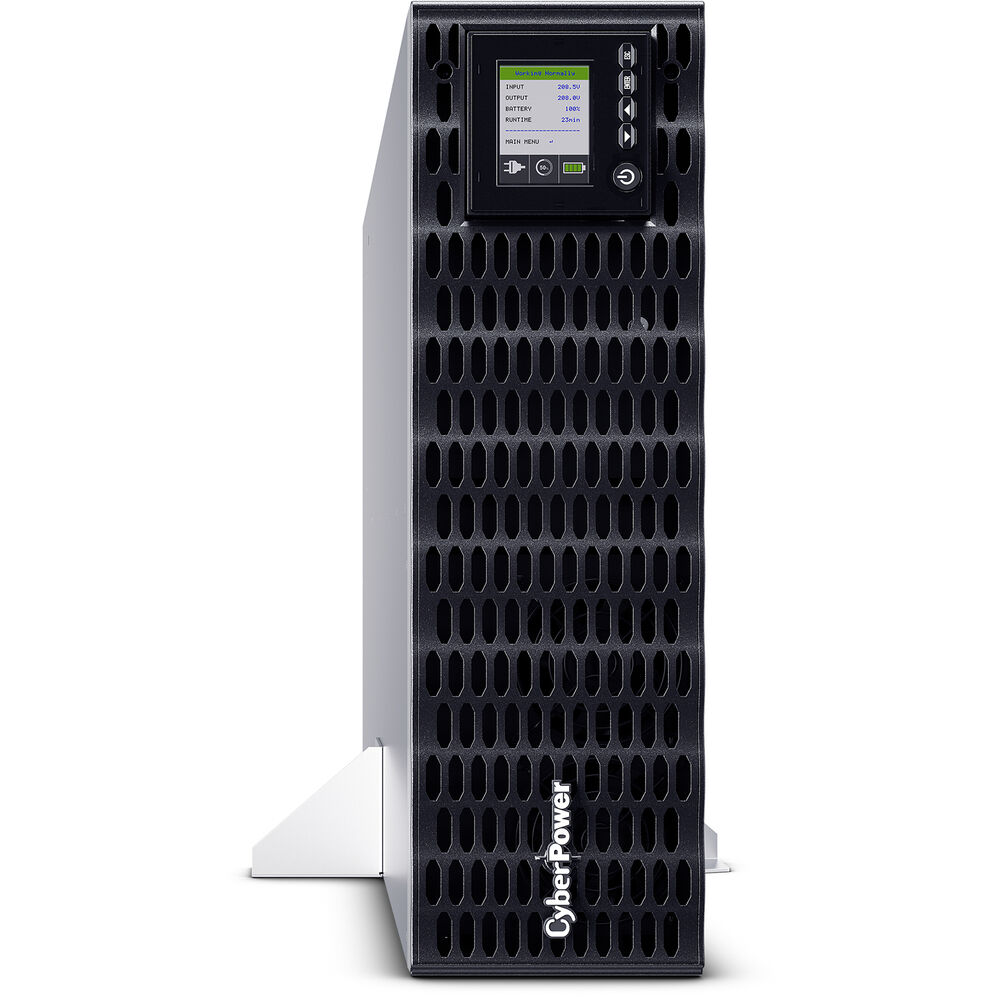

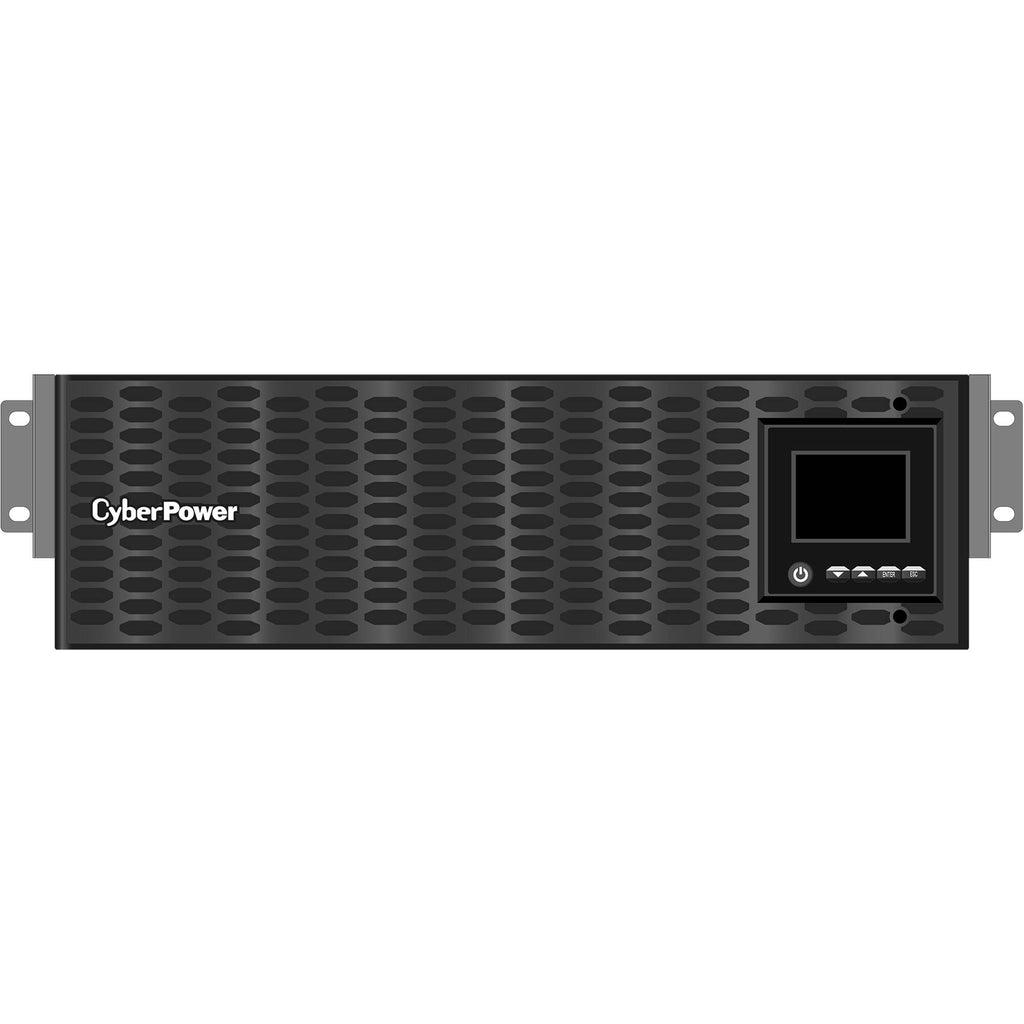

Rack/Tower Versatility
This allows for horizontal rack or vertical tower installation.
Connected Equipment Guarantee
CyberPower will properly replace connected equipment, up to $300,000, if it is damaged by a power surge.
UPC: 649532936199
Items Included
- CyberPower OL5KRTHDL Smart App Online UPS
- Input Terminal Block Cover & NEMA L6-30P Power Cord
- Rackmount Left Rail
- Rackmount Right Rail
- Left Hanging Bracket
- Right Hanging Bracket
- Serial Interface Cable (RS-232)
- USB Communication Cable
- 2 x Rackmount Ear
- 8 x M5X7L Flat Head Screw (Black)
- 12 x M5X12L Pan Head Screws (Black)
- 6 x M5X6L Pan Head Screws (Silver)
- 8 x Plastic Washer
- 18 x Screw Hole Dust Covers
- 12 x Rubber Pad
- 2 x Stand
- Input Bottom Cover
- Screwdriver
- $300,000 Connected Equipment Guarantee
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
CyberPower OL5KRTHDL Specs
Key Specs
| Total Outlets |
2x NEMA L6-20R
2x NEMA L6-30R |
| Plug Type |
NEMA L6-30P
|
| Surge Protection |
2430 Joules
|
| Maximum Wattage |
5000 W
|
| Full-Load Runtime |
4.9 Minutes
|
General
| Total Outlets |
2x NEMA L6-20R
2x NEMA L6-30R |
| Plug Type |
NEMA L6-30P
|
| SmartSlot Interface |
No
|
| Coax Protection |
No
|
| Data Line Protection |
No
|
| Communications I/O |
USB via Type-B
Serial via DE-9/DB-9 Gigabit Ethernet via RJ45 |
| Emergency Power Off (EPO) Support |
Yes
|
| Topology |
Double Conversion
|
| Transfer Time |
0 ms
|
Power
| Surge Protection |
2430 Joules
|
| Maximum Wattage |
5000 W
|
| Input Voltage Range |
200 to 240 VAC
|
| Input Voltage Adjustable Range |
120 to 180 VAC
|
| Input Frequency |
50/60 Hz ± 10 Hz
|
| Nominal Output Voltage |
240 VAC
|
| Output Voltage Range |
200 to 240 VAC
|
| Output Frequency |
50/60 Hz ± 0.25 Hz (Auto Sensing, Configurable)
|
| Voltage Distortion |
<5%
|
| Load Capacity |
5000 VA
|
| Circuit Breaker Rating |
50 A
|
| Thermal Dissipation |
1186 BTU/Hour
|
| Maximum Efficiency |
96%
|
| Crest Factor |
3:1
|
| Power Factor Correction |
1
|
| Waveform |
Sine Wave
|
Battery
| Cells |
12
|
| Battery Capacity |
(81 VaH)
|
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
4.9 Minutes
|
| Half-Load Runtime |
14.3 Minutes
|
| Recharge Time |
4 Hours
|
| User Replaceable |
Yes
|
| Replacement Battery |
RB1290X12
|
| Hot-Swap Support |
Yes
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
0 to 95%
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Storage Humidity |
0 to 95%
|
| Storage Altitude |
0 to 50,000' / 0.0 to 15,240 m
|
