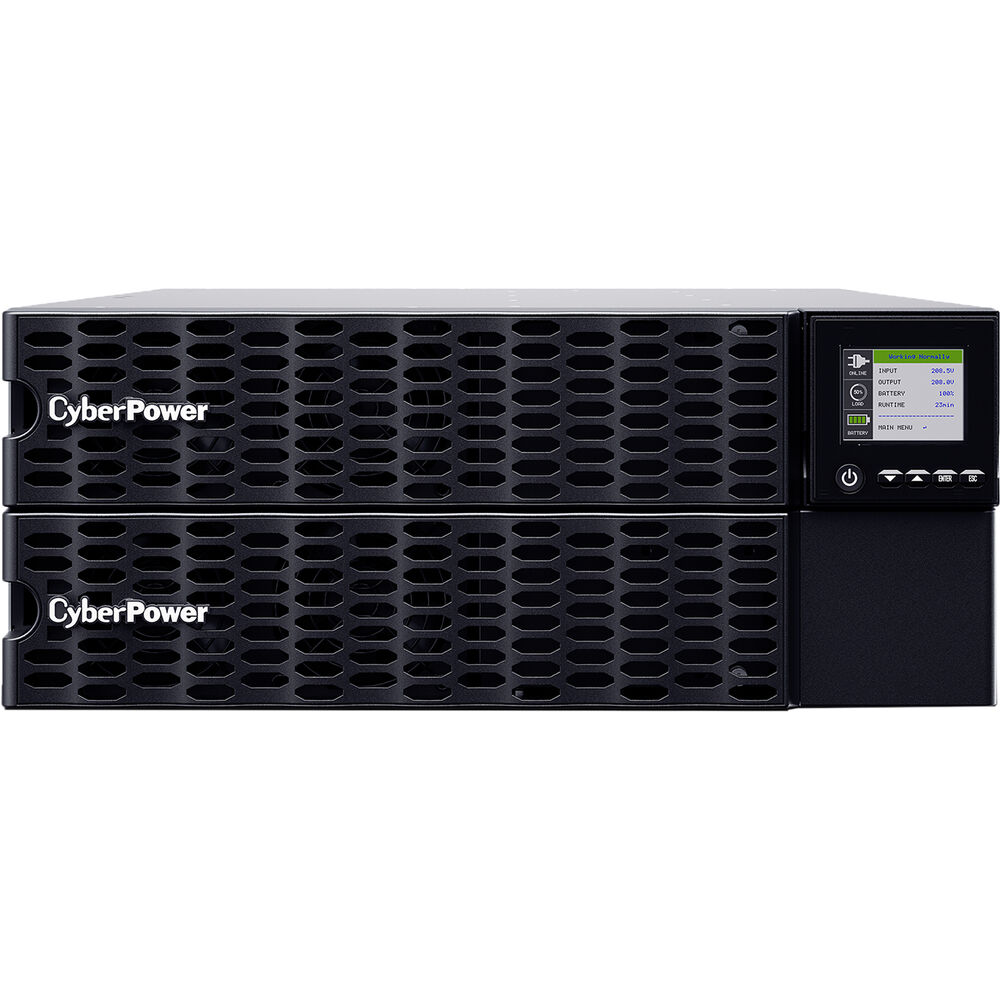

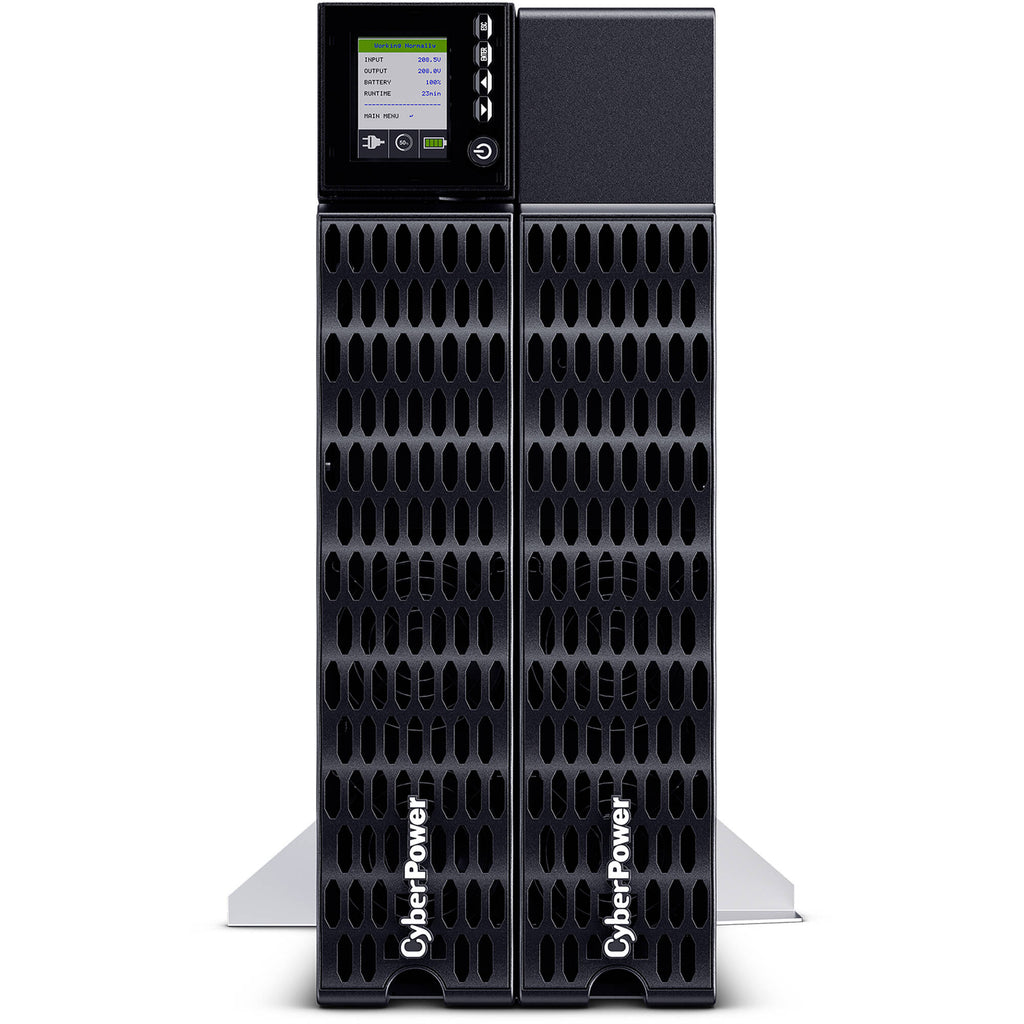

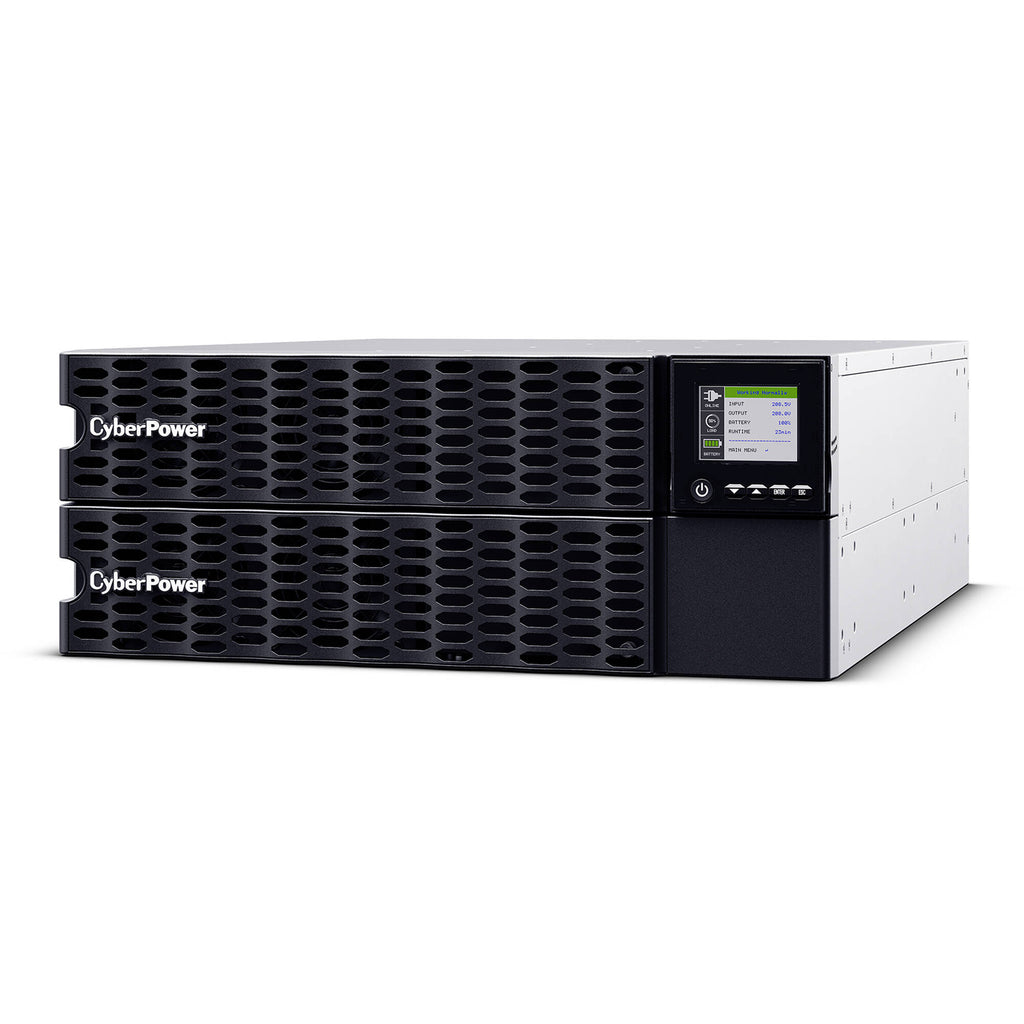

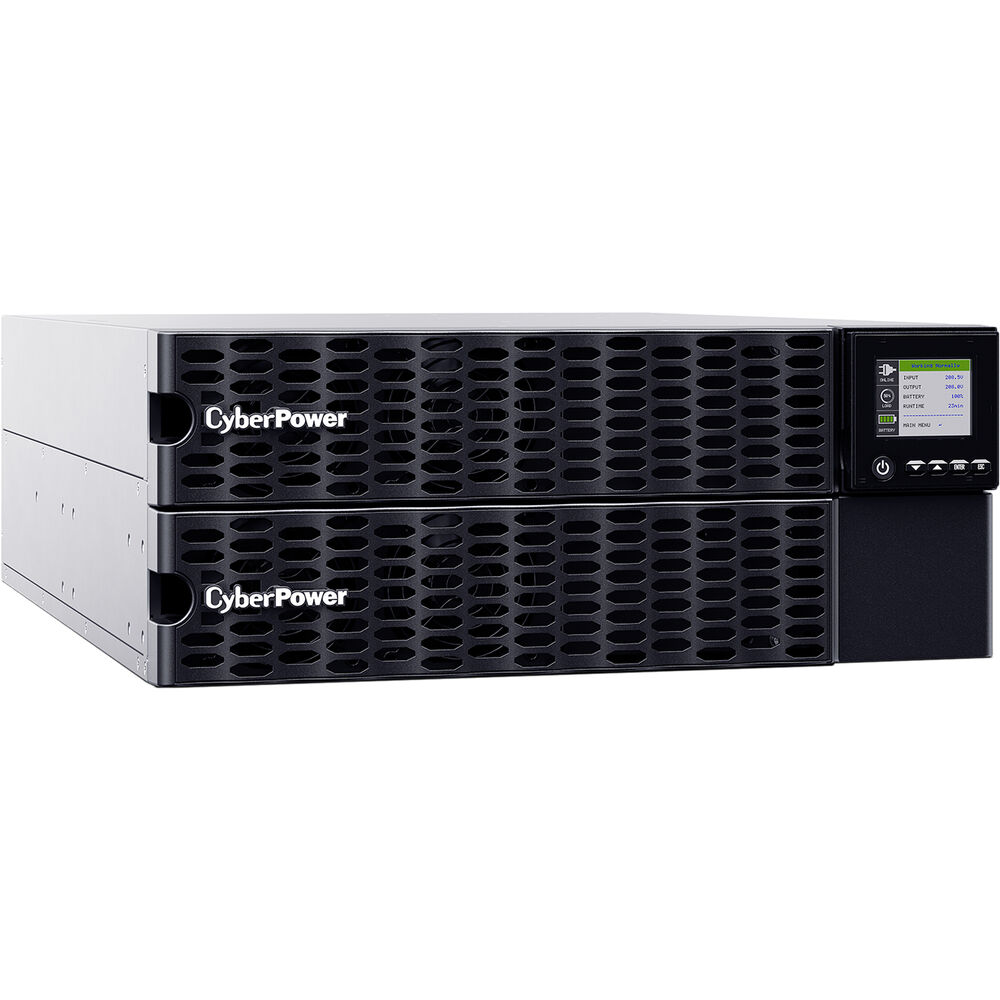

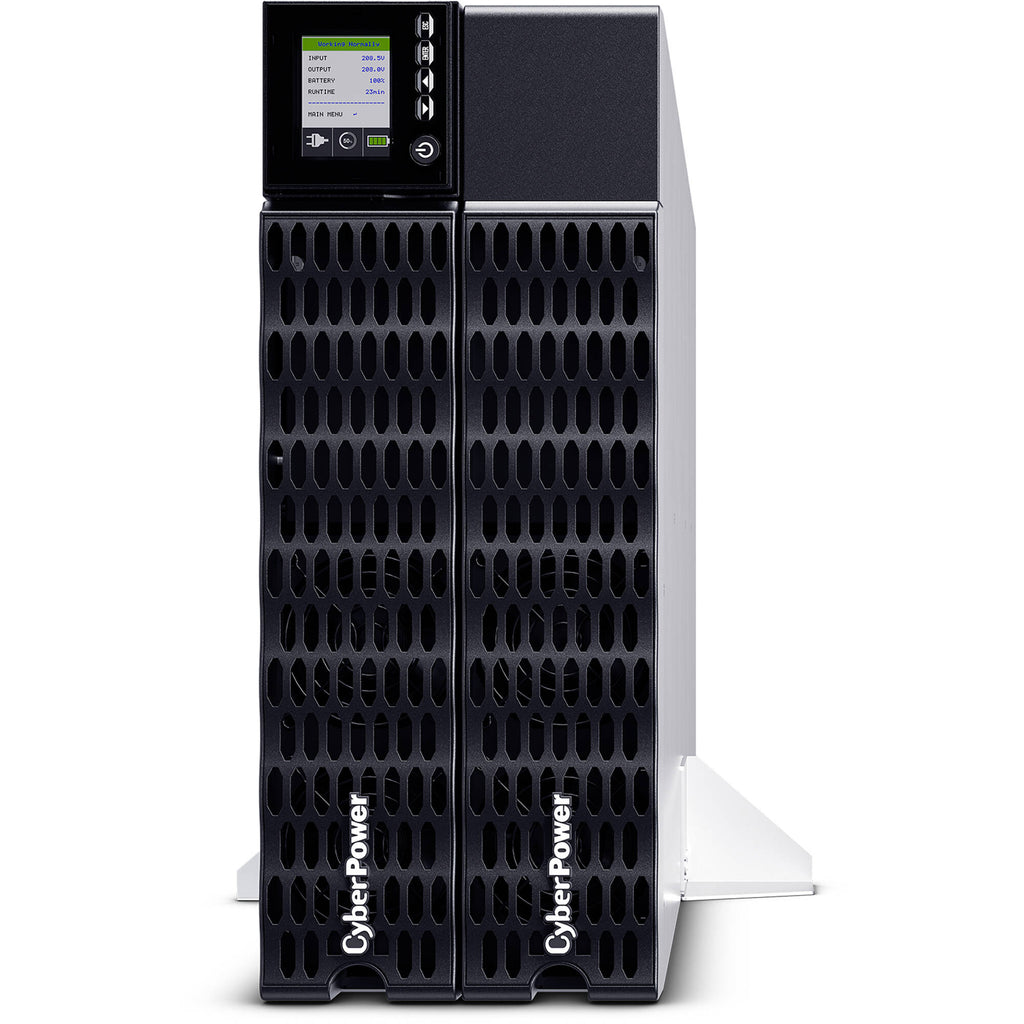

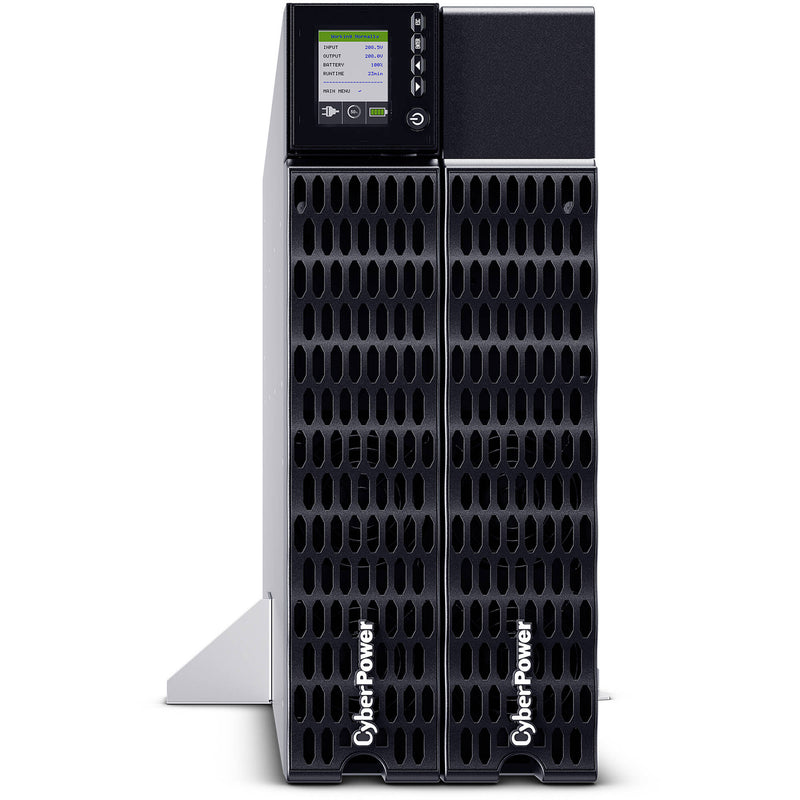

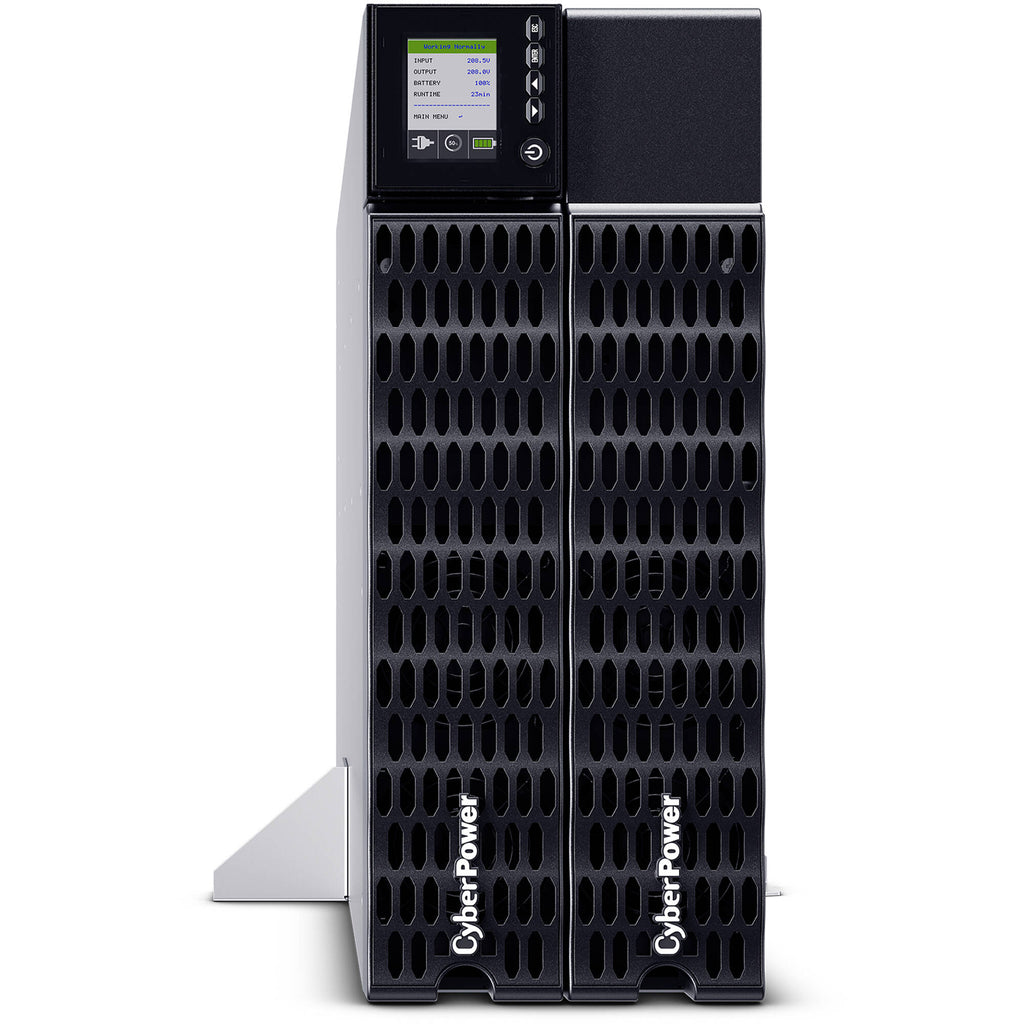

CyberPower OL10KRTHD Smart App Online UPS

Built with a preinstalled RMCARD205 network management card that lets you remotely manage, monitor, and control your UPS using a standard web browser or network management system (NMS), the OL10KRTHD Smart App Online UPS from CyberPower features a high-density design that offers more power in a 4 RU rack space or as a tower, which gives you room to grow other components. It has also been built with double-conversion topology that provides battery backup and power protection via sine waveform output, plus surge protection to critical applications and equipment that require seamless power correction. Optional Extended Battery Module (EBM) expands runtime, and Fast Charge Technology charges the battery up to 90% in four hours. It comes equipped with an output capacity of 10,000VA / 10,000W, an input voltage range of 120-280 VAC @ 40-70 Hz, and integrated circuitry for EMI/RFI filters. This Smart App UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the load/current level, runtime, battery level, temperature, input voltage, output voltage, battery in use, and more.

When running a full load, this UPS can power devices for up to 2.4 minutes. When running a half load, it will last for up to 8.3 minutes. The OL10KRTHD offers four NEMA L6-20R outlets and two NEMA L6-30R outlets, and one of the L6-30R outlets is equipped with battery and surge protection and can absorb up to 2430 joules for keeping your devices safe against surges and spikes. Other connections offered are a hardwire plug, RS-232 serial, USB-B, and RJ45 Ethernet.

This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000.

• Description
• Typical Applications
• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Toolless Front Panel
• Hot-Swappable Batteries
• Extended Battery Module (EBM)
• Smart Battery Management (SBM)
• Battery Equalization Technology
• Fast Charge Technology
• PowerPanel Business Software
• RMCARD205 Network Card
• Hanging Rackmount Rail
• Tamperproof Input Circuit Breaker
• EMI/RFI Filters
• ENERGY STAR Certified & GreenPower UPS ECO Mode
• Upgradeable UPS Firmware
• Multiple Language Options
• Critical & Non-Critical Load Banks
• Emergency Power Off (EPO)
• Generator Compatible
• Converter Mode
• USB & Serial Connectivity
• Audible Alarms
• Rack/Tower Versatility
• Limited 3-Year Warranty
• Connected Equipment Guarantee
