CyberPower EC550G Overview
-
1Description
-
2ECO Mode
-
3Energy-Saving Technology
-
4Ultra-Quiet Operation
-
5EMI/RFI Filters
-
6Transformer-Spaced Outlets
-
7USB Connectivity
-
8Convenient Mounting
-
9LED Indicators
-
10Audible Alarms
-
11Resettable Circuit Breaker
-
12PowerPanel Personal Edition
-
13Windows Compatibility

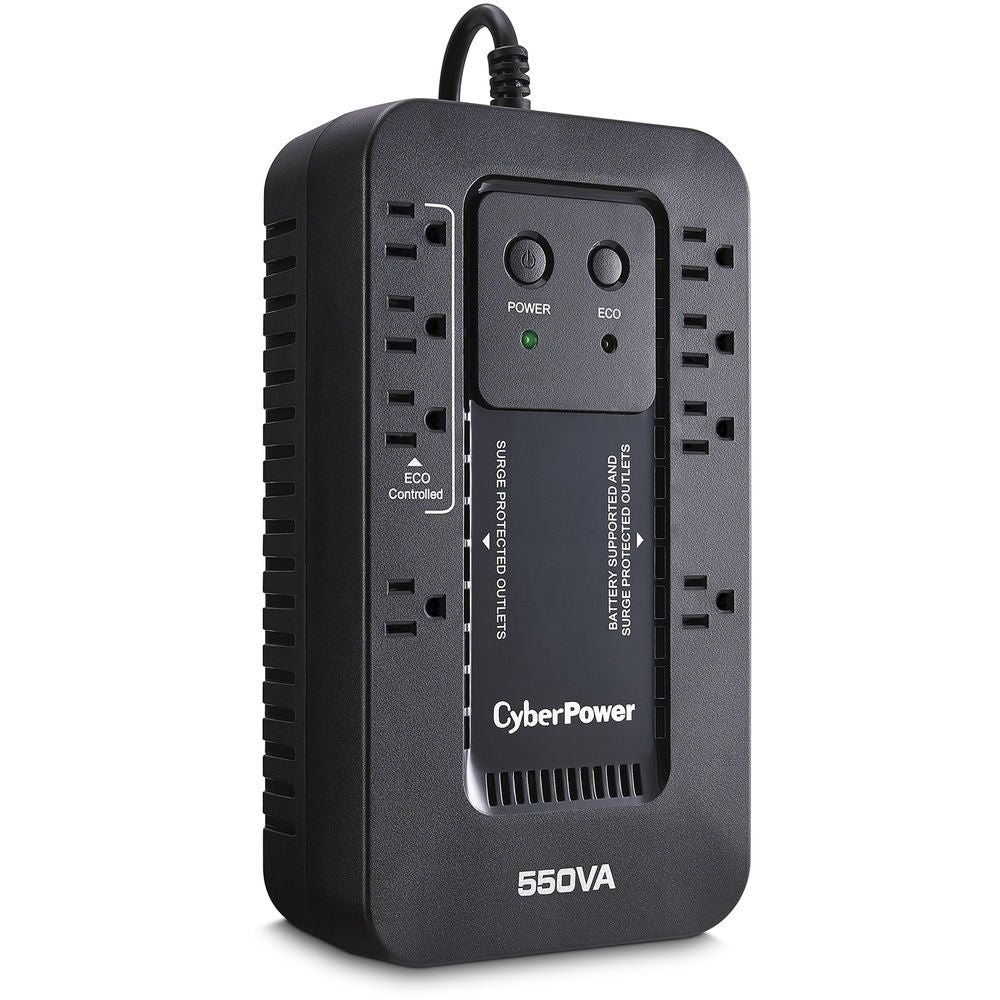

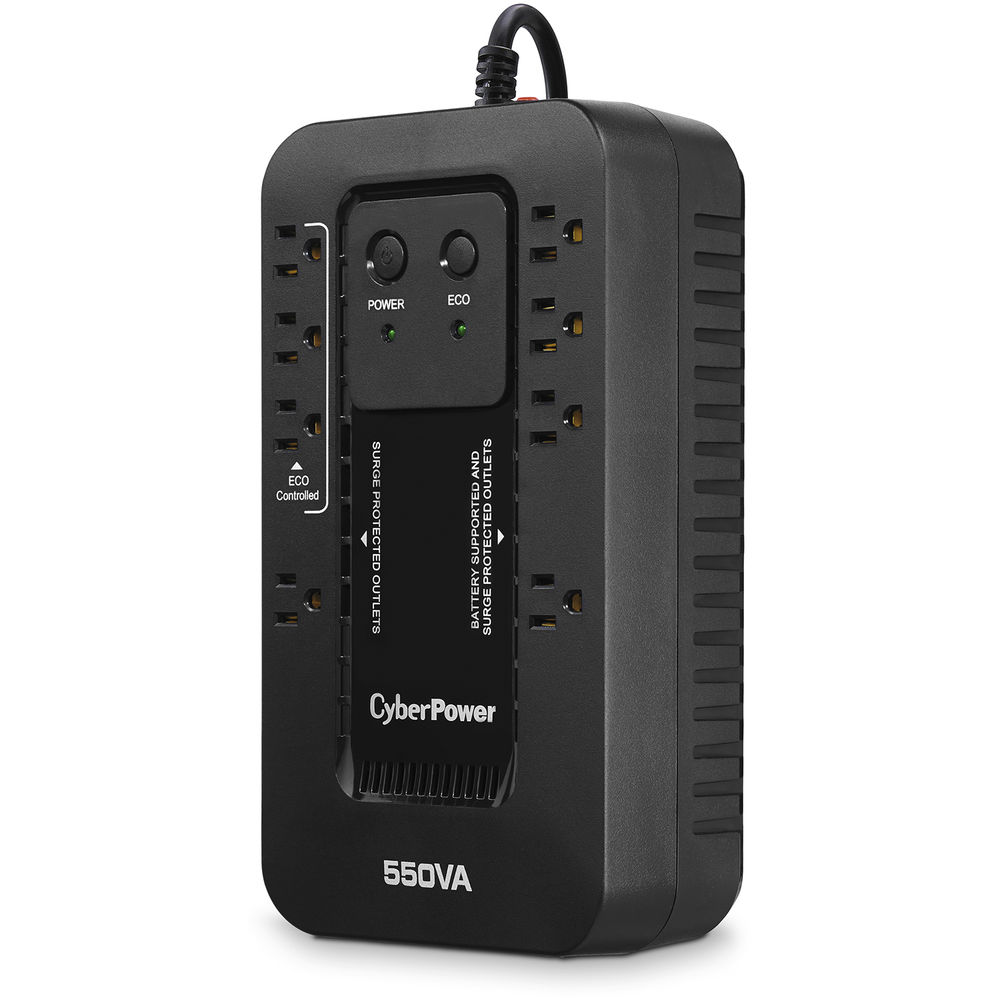

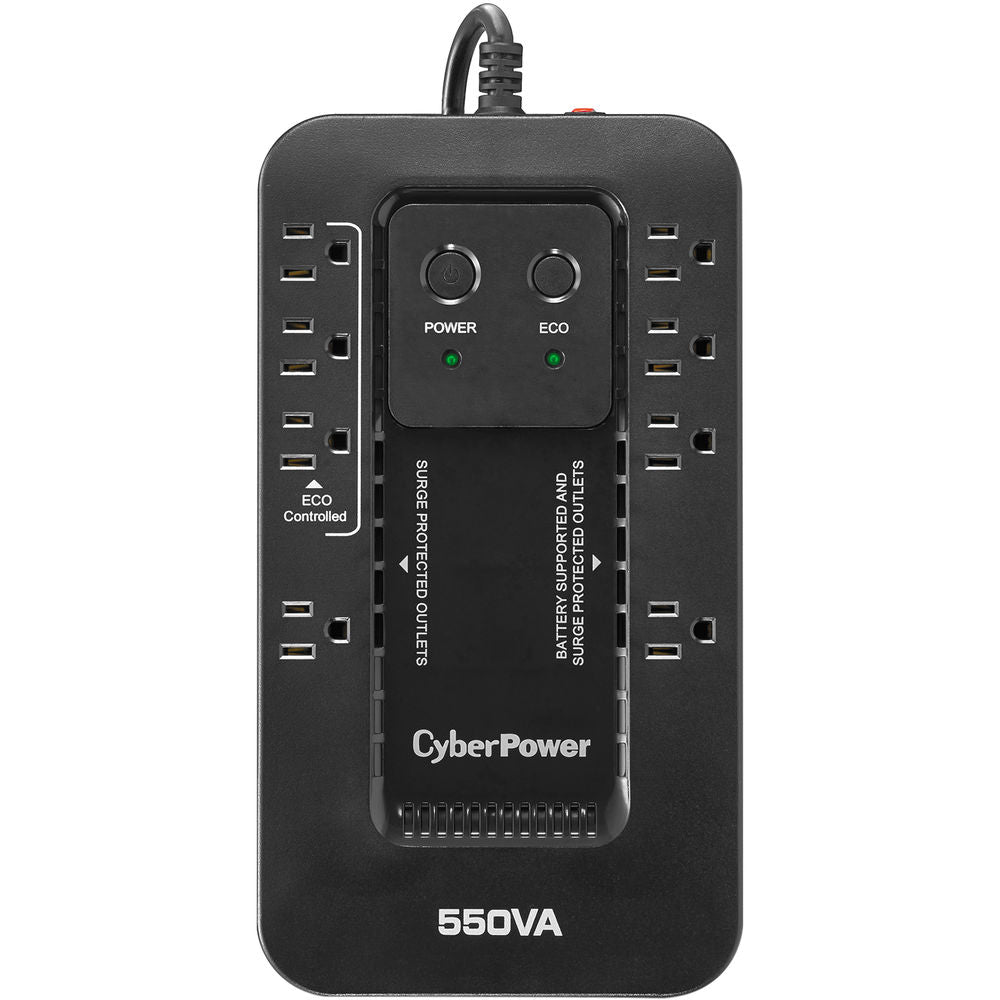

The EC550G Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with eight electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with four battery- and surge-protected outlets and four surge-only protected outlets providing both surge protection and battery backup in the case of a power interruption.
The included sealed lead-acid battery comes with a typical recharge time of 8 hours and is capable of an 2.4 minute run time at 300W and 7.35 minutes at 150W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and eventually safely shut down the PC when the backup battery is depleted.
The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.
This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.
This uninterruptable power supply comes with reduced sound emissions.
Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
Transformer-Spaced Outlets
Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS.

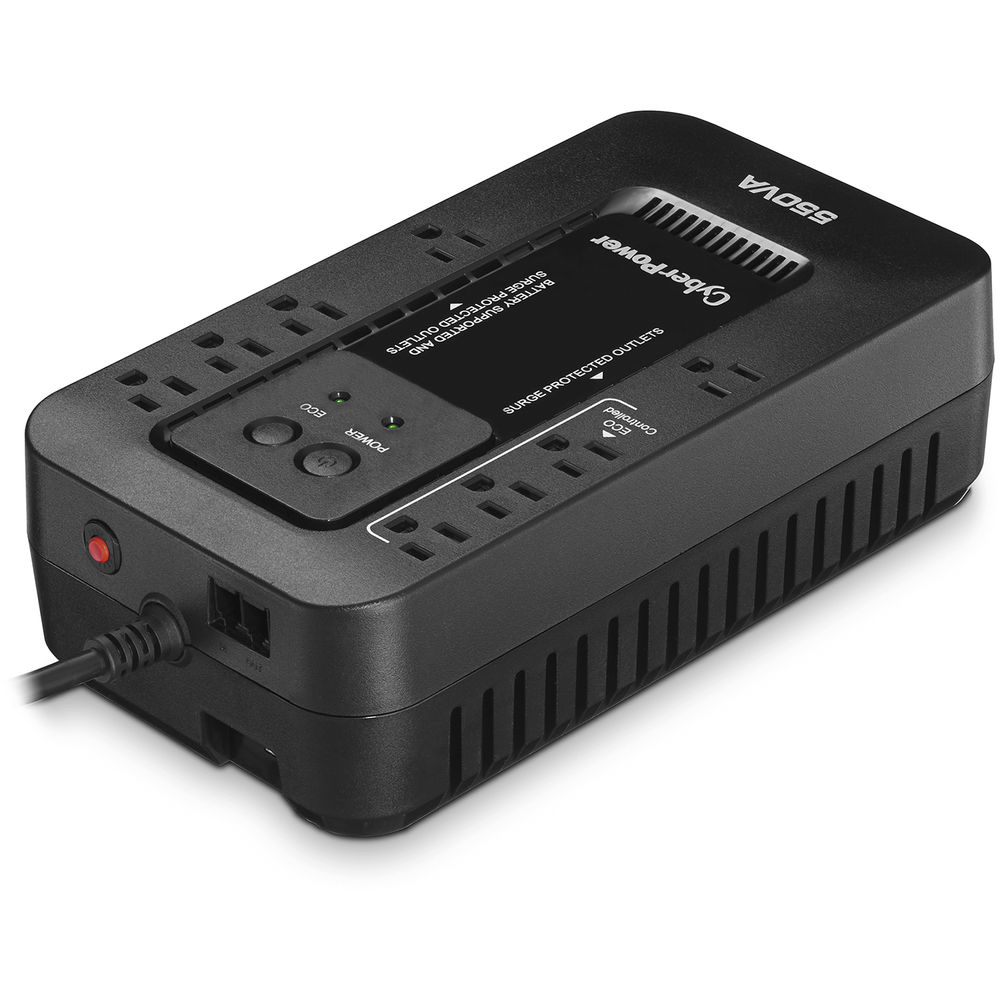

Compact size for mounting horizontal or vertical.
LED status lights indicate Power-On and ECO on/off.
Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
Resettable Circuit Breaker
The user may use this convenient unit reset switch in case of an overload.
PowerPanel Personal Edition
In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008, and Server 2012.
![]()
UPC: 649532607570
In the Box
- CyberPower EC550G Ecologic Series Uninterruptible Power Supply
- Limited 3-Year Warranty
Table of Contents
- Description
- ECO Mode
- Energy-Saving Technology
- Ultra-Quiet Operation
- EMI/RFI Filters
- Transformer-Spaced Outlets
- USB Connectivity
- Convenient Mounting
- LED Indicators
- Audible Alarms
- Resettable Circuit Breaker
- PowerPanel Personal Edition
- Windows Compatibility
CyberPower EC550G Specs
General
| Total Outlets |
8 (2 Transformer-Sized) |
| Protected Outlets |
4 (Battery and Surge)
4 (Surge Only) |
| Plug Type |
NEMA 5-15P Offset Right-Angle |
| Topology |
Standby |
| Transfer Time |
4 ms |
Power
| Surge Energy Rating |
526 Joules |
| Maximum Wattage |
330 W |
| Input Voltage Adjustable Range |
96 to 140 VAC |
| Input Frequency |
50/60 Hz ± 3 Hz |
| Nominal Output Voltage |
120 VAC |
| Output Frequency |
50/60 Hz ± 1% (Auto Sensing) |
| Load Capacity |
550 VA |
| Waveform |
Simulated Sine Wave |
Battery
| Chemistry |
Lead-Acid |
| Full-Load Runtime |
2 Minutes |
| Half-Load Runtime |
7 Minutes |
| Recharge Time |
8 Hours |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 90% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% |
| Operating Altitude |
10,000' / 3000 m |
| Storage Altitude |
50,000' / 15,000 m |
| Certifications |
RoHS
*as per Manufacturer |
Physical
| Cable Length |
5' / 1.5 m |
| Rackmount Size |
None |
| Dimensions (W x H x D) |
10.6 x 3.1 x 5.9" / 26.9 x 7.9 x 15 cm |
| Weight |
6 lb / 2.7 kg |
Packaging Info
| Package Weight |
6.5 lb |
| Box Dimensions (LxWxH) |
13.4 x 8 x 4.5" |
