CyberPower CP800 Overview
-
1Description
-
2Battery Backup
-
3Surge Protection
-
4Line-Interactive Topology
-
5Automatic Voltage Regulation
-
6Simulated Sine Wave Output
-
7GreenPower UPS Bypass
-
8Ultra Quiet Design
-
9Transformer-Spaced Outlets
-
10PowerPanel Personal Software
-
11ENERGY STAR

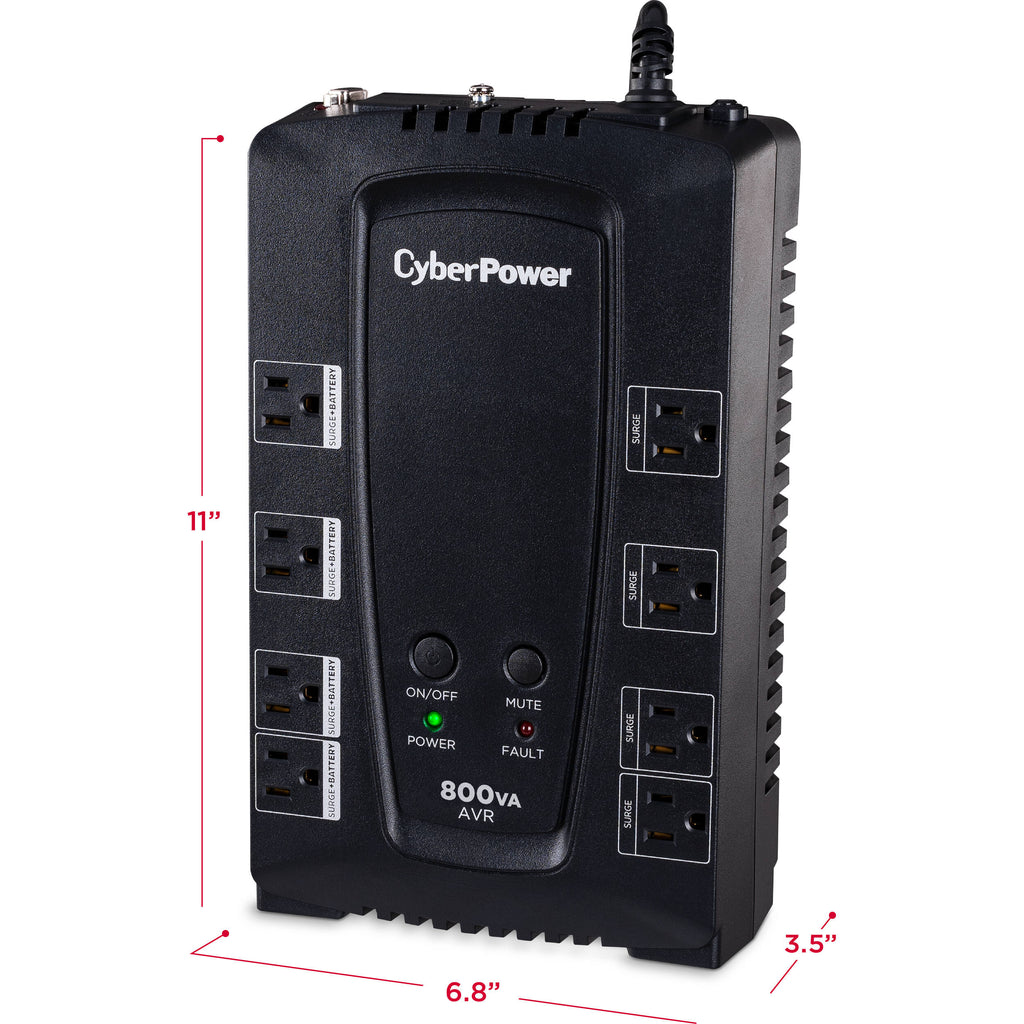

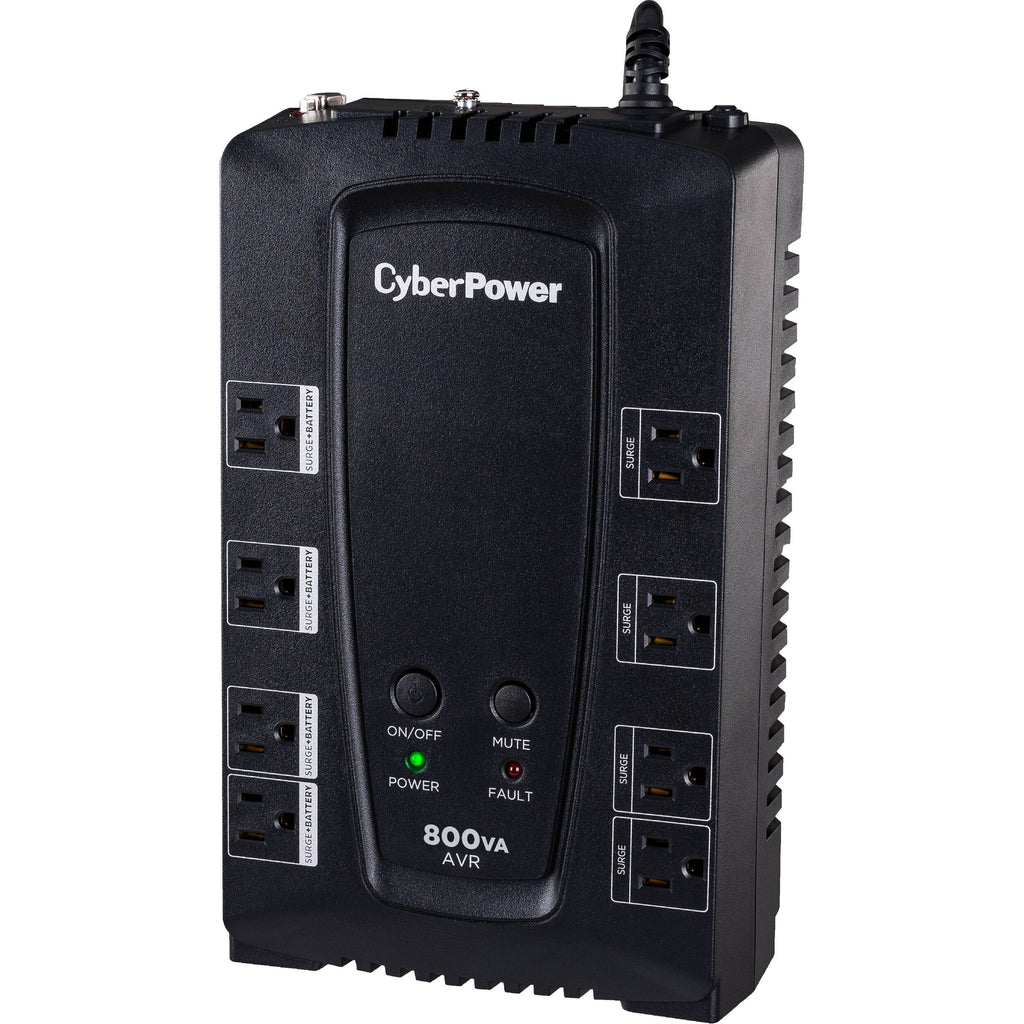

Keep devices powered and protected with the CP800AVR 800VA/450W Compact Uninterruptible Power Supply from CyberPower. Featuring a MEMA 5-15P input, this UPS provides eight total 5-15R outlets, including four with surge protection and another four outlets with both surge protection and battery backup. Furthermore, a USB Type-B and DB9 port provide interfacing options. Delivering an output of 800VA or 450W, this uninterruptible power supply is compatible with 120 VAC inputs. Keep connected computers and other equipment protected from surges, thanks to a 1030-joule energy rating.
The Simulated Sine Wave and line-interactive topology ensures utility-power performance in the event of an outage or interruption, and EMI and RFI filtering ensure clean power with reduced interference. LED indicators and audible alarms alert you of various conditions, including wiring faults and overloads. The rechargeable batteries feature an 8-hour recharging time, while the 6' power cord and keyhole mounting slots allow for easy installation. Included PowerPanel Personal software can be used for even more in-depth management of the CyberPower CP800AVR UPS.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line-Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages and over voltages without having to switch to battery.
Automatic Voltage Regulation
Automatic Voltage Regulation or AVR provides clean, consistent AC power by automatically increasing or boosting low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS Bypass
A patented design allows utility power to bypass the UPS transformer when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
Transformer-Spaced Outlets
Widely spaced outlets accommodate transformer-based plugs without compromising access to other outlets.
PowerPanel Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
ENERGY STAR
This model is an ENERGY STAR certified Uninterruptible Power Supply system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
![]()
UPC: 649532008001
In the Box
- CyberPower CP800AVR 800VA/450W Compact Uninterruptible Power Supply
- USB Cable
- PowerPanel Software
- Limited 3-Year Warranty
Table of Contents
- Description
- Battery Backup
- Surge Protection
- Line-Interactive Topology
- Automatic Voltage Regulation
- Simulated Sine Wave Output
- GreenPower UPS Bypass
- Ultra Quiet Design
- Transformer-Spaced Outlets
- PowerPanel Personal Software
- ENERGY STAR
CyberPower CP800 Specs
General
| Total Outlets |
8 x NEMA 5-15R (4 Transformer-Sized) |
| Protected Outlets |
4 x NEMA 5-15R (Battery and Surge)
4 x NEMA 5-15R (Surge Only) |
| Plug Type |
NEMA 5-15P Offset Right-Angle |
| USB Charging Ports |
None |
| SmartSlot Interface |
None |
| Coax Protection |
None |
| Data Line Protection |
None |
| Communications |
USB via Type-B
Serial via DE-9/DB-9 |
| Topology |
Line Interactive |
| Transfer Time |
4 ms |
Power
| Surge Energy Rating |
1030 Joules |
| Maximum Wattage |
450 W |
| Input Voltage Range |
90 to 140 VAC |
| Input Frequency |
60 Hz ± 3 Hz |
| Nominal Output Voltage |
120 VAC |
| Output Frequency |
60 Hz ± 1% |
| Load Capacity |
800 VA |
| Waveform |
Simulated Sine Wave |
Battery
| Battery Capacity |
108 VAh |
| Chemistry |
Lead-Acid |
| Full-Load Runtime |
1.2 Minutes |
| Half-Load Runtime |
13.5 Minutes |
| Recharge Time |
8 Hours |
| User Replaceable |
Yes |
| Replacement Battery |
RB1290 |
| Hot-Swap Support |
No |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 90% |
| Certifications |
ENERGY STAR, FCC, RoHS, UL, cUL, as per Manufacturer |
Physical
| Cable Length |
6' / 182.9 cm |
| Rackmount Size |
None |
| Dimensions (W x H x D) |
11 x 6.8 x 3.5" / 27.9 x 17.3 x 8.9 cm |
| Weight |
12.74 lb / 5.78 kg |
Packaging Info
| Package Weight |
14.055 lb |
| Box Dimensions (LxWxH) |
14.5 x 9.9 x 5.1" |
