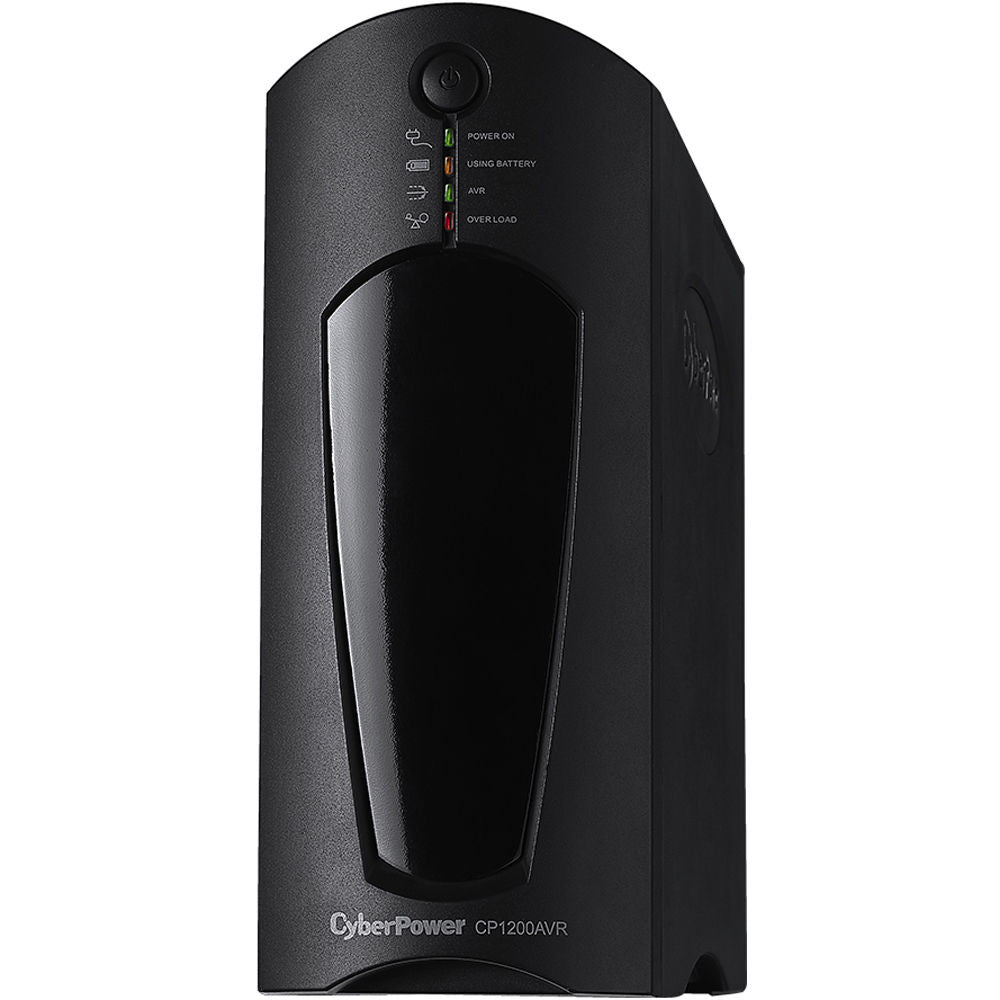

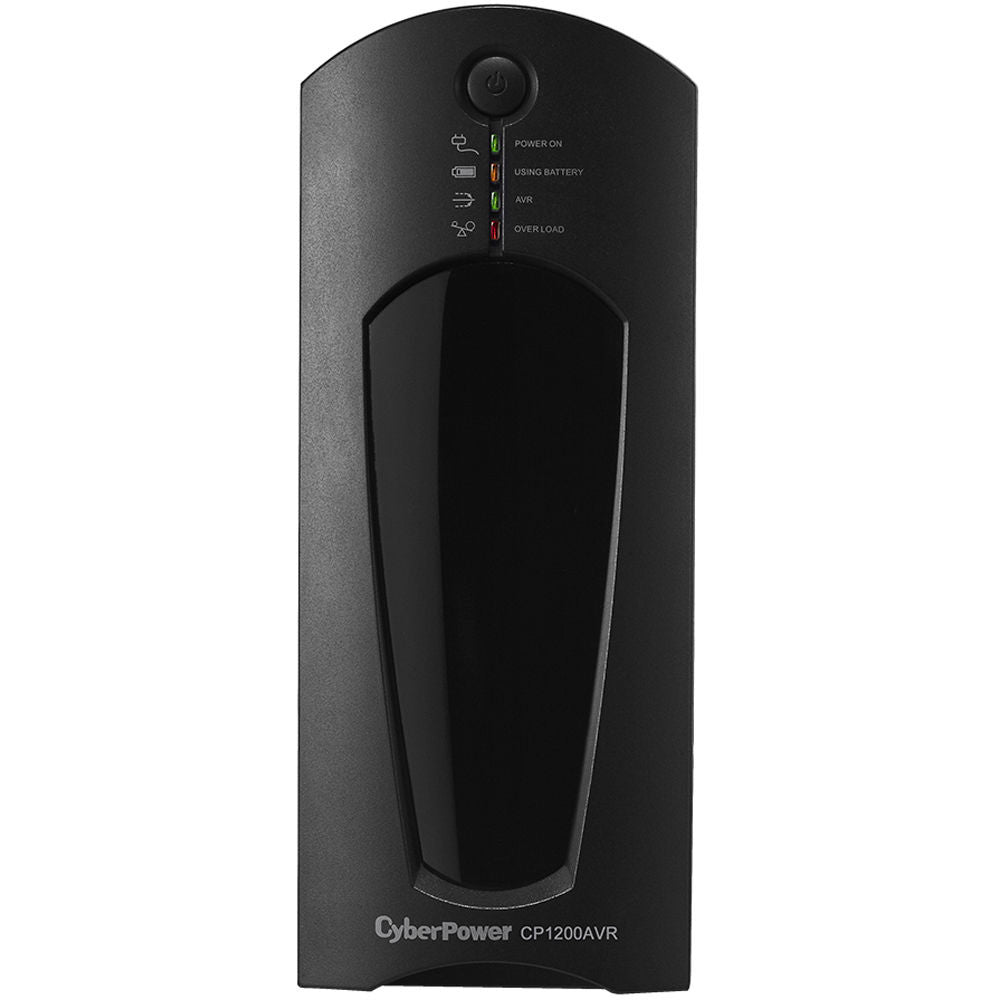

The CyberPower CP1200AVR AVR Mini-Tower UPS (1200VA/720W) safeguards PCs and other electronics from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its AVR (Automatic Voltage Regulation) boost/buck technology delivers a consistent and clean AC power, for protecting connected equipment and preventing business interruptions.�The composite integrated circuitry offers improved lightning protection.
The UPS system is ENERGY STAR qualified with GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat build-up.
- Suitable for desktop computers, home networking/VoIP, personal electronics, and home theater devices
- Capacity of 1200VA/720W
- Line Interactive Topology
- AVR (Automatic Voltage Regulation)
- GreenPower UPS
- ENERGY STAR qualified
- Full-time surge protection and battery backup
- Mini-tower form factor
- RJ11/RJ45 and Coax RG6 Protection
- 8 outlets and USB and serial ports
- PowerPanel Personal edition software
- EMI/RFI filtration
In the Box
CyberPower CP1200AVR AVR Mini-Tower UPS (1200VA/720W)
General |
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS bypass technology |
Input |
Input Frequency | 60 Hz � 3 Hz |
Voltage Range | 90 to 140 VAC |
Plug Type | NEMA 5-15P |
Plug Style | Right angled |
Cord Length | 6' (1.82 m) |
Output |
VA | 1200 |
Watts | 720 |
On Battery Voltage | 120 VAC � 5% |
On Battery Frequency | 60 Hz |
On Battery Waveform | Simulated sine wave |

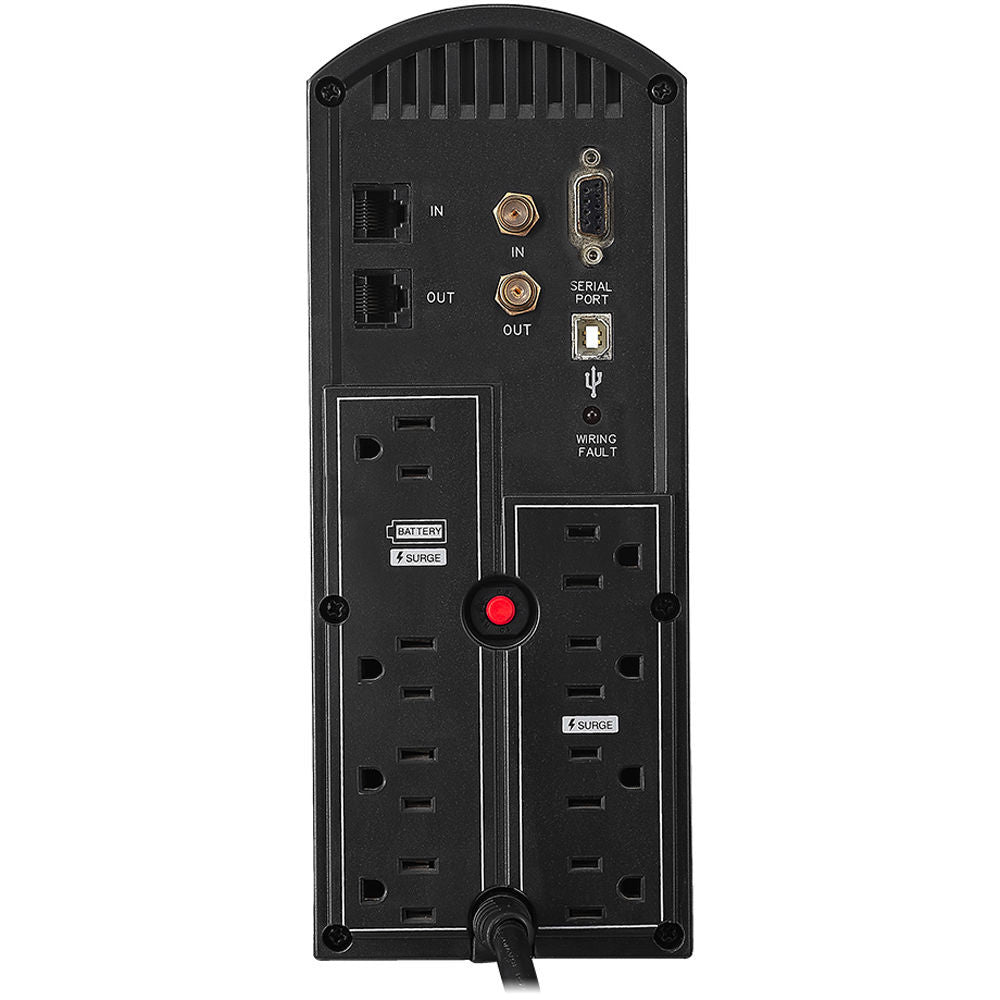

Outlets | Total: 8 Battery & Surge Protected: 4 Surge-Only Protected: 4 Widely Space: 1 |
Overload Protection | Internal circuitry limiting / circuit breaker |
Transfer time | 4 ms |
Battery |
Runtime | 12 minutes at half load 3 minutes at full load |
Battery Type | Sealed lead-acid |
Battery Size | 12 V/8 Ah |
Replacement Battery | RB1280X2D |
User Replaceable | Yes |
Battery Quantity | 2 |
Typical Recharge Time | 8 hours |
Surge Protection / Filtering |
Surge Suppression | 1080 joules |
Ports | 1-In, 1-Out (combo of Phone RJ11 / Ethernet RJ45) |
Coax Protection RG6 | 1-In, 1-Out |
Management and Communications |
USB Port | Yes |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Management Cable | USB |
LED Indicators | Power On, Wiring Fault, Using Battery, AVR, Overload |
Alarms | Audible: On Battery, Low Battery, Overload |
Software | PowerPanel Personal edition |
Environmental |
Operating Temperature | 32 to 95�F (0 to 35�C) |
Operating Humidity | 0 to 95% non-condensing |
Certifications |
Safety | UL1778, cUL 107.1, FCC DOC Class B |
Environmental | RoHS compliant |
Physical |
Form Factor | Mini-tower |
Dimensions (W x H x D) | 4 x 9.75 x 13.25" (101.6 x 247.65 x 336.55 mm) |
Weight | 25 lb (11.33 kg) |
