- Output: 1000 VA / 600W
- Input: 120V
- 5 x Battery/Surge Protected Outlets
- 9 x NEMA 5-15R Outlets
- Recharge Time: 8 Hours
- Line-Interactive Topology
- Automatic Voltage Regulation (AVR)
- 1,080 Joules Surge Suppression
- Phone RJ11/Ethernet RJ45/Coax Protection
- Multifunction LCD Panel

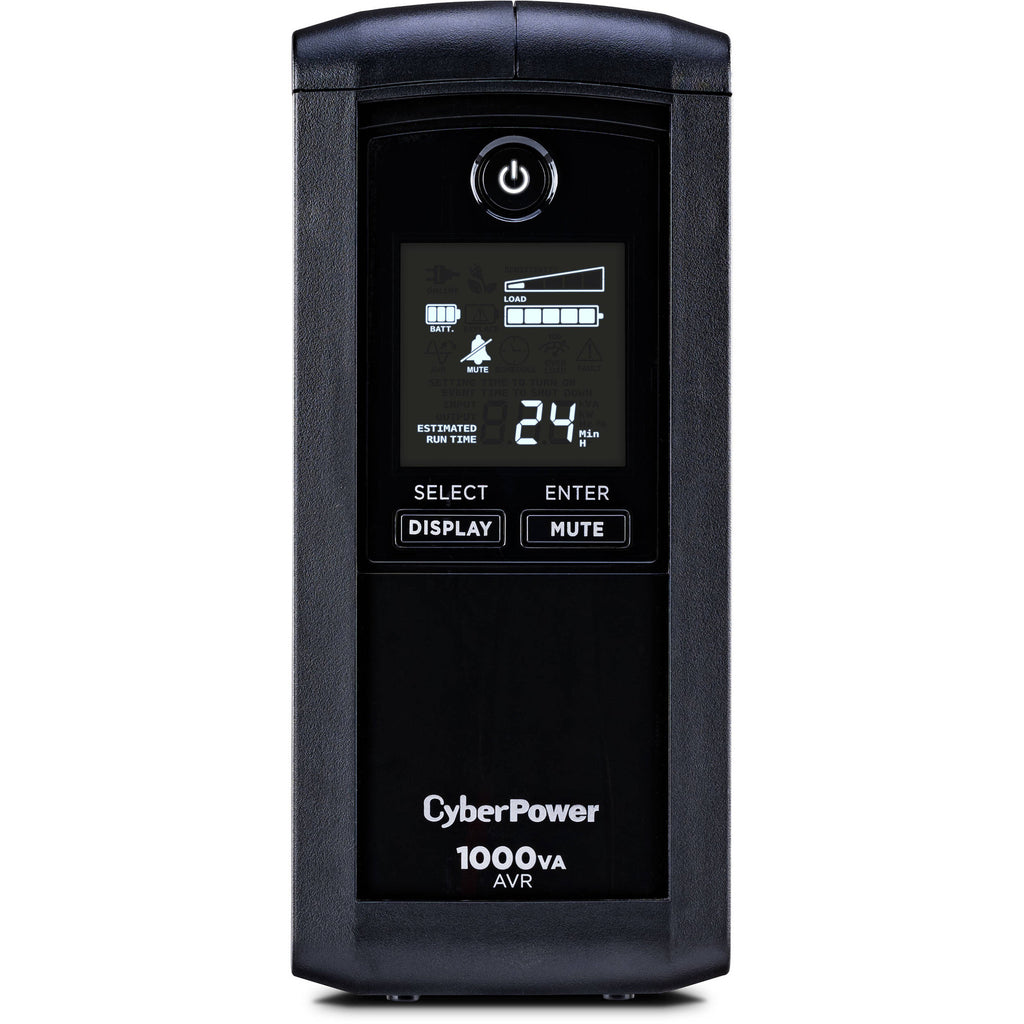

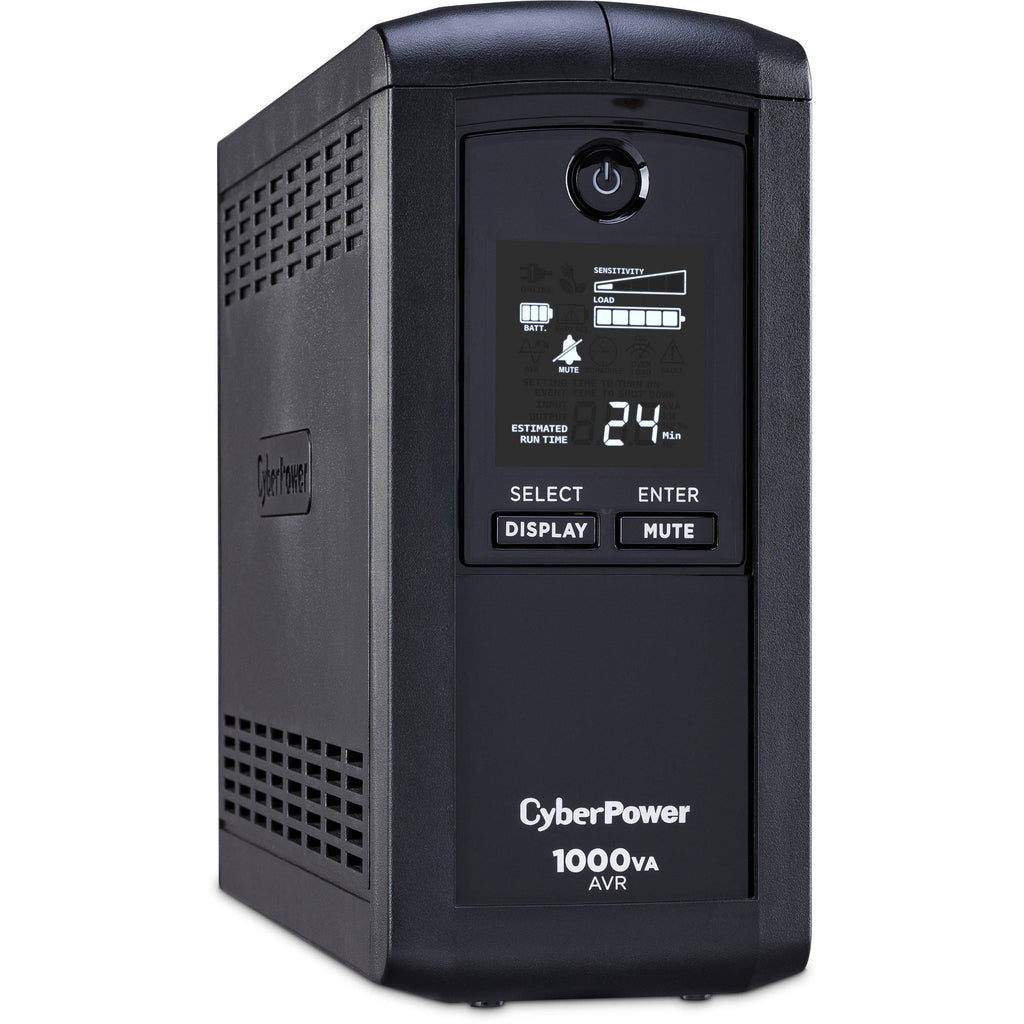

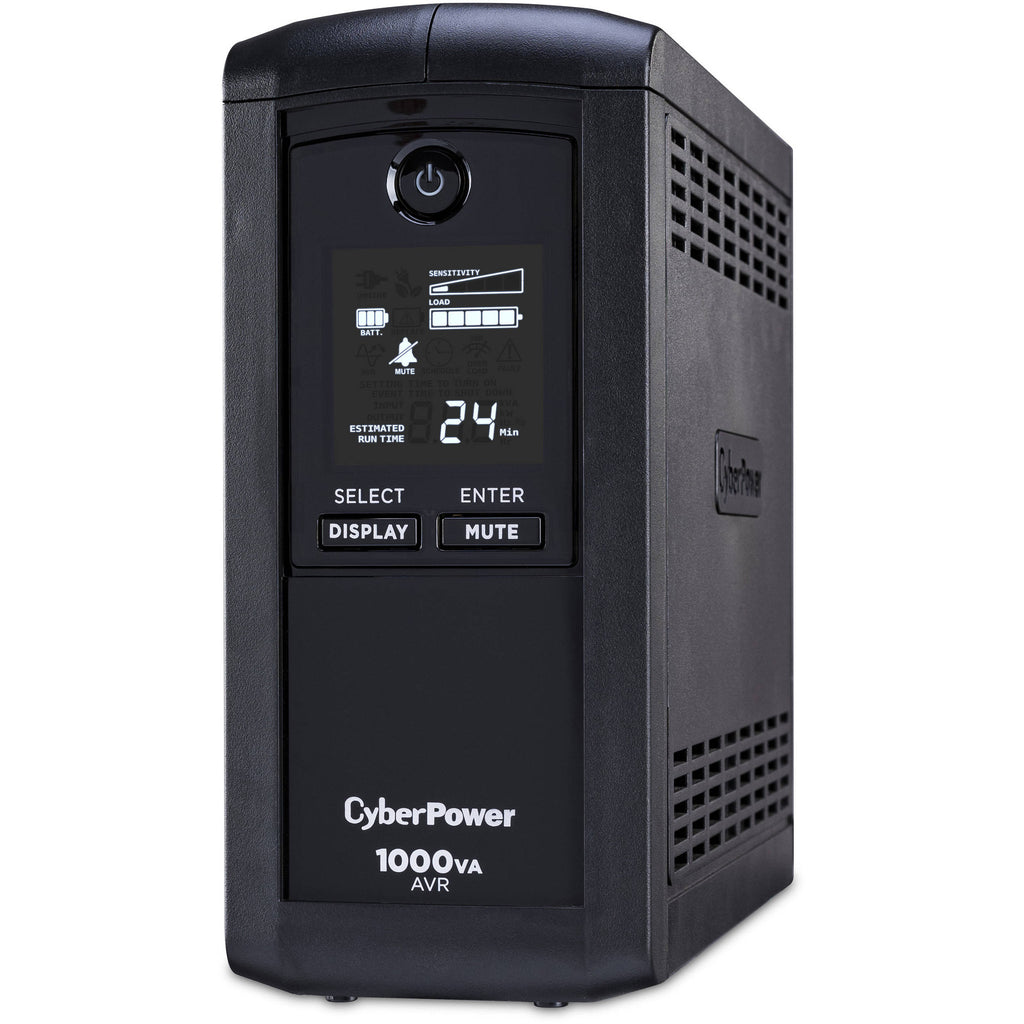

The CP1000AVRLCD Intelligent LCD UPS from CyberPower comes equipped with an output capacity of 1000 VA / 600W that delivers power for up to nine electronic devices. This power supply features Automatic Voltage Regulation which provides consistent and clean AC power to all your connected equipment such as desktop computers, workstations, networking devices, home entertainment systems, and more. Furthermore, it has integrated circuitry for EMI/RFI filters. The Intelligent LCD UPS provides an integrated panel for displaying real-time UPS vitals, such as load capacity %, battery charge %, input/output voltage and frequency, estimated runtime, and more.

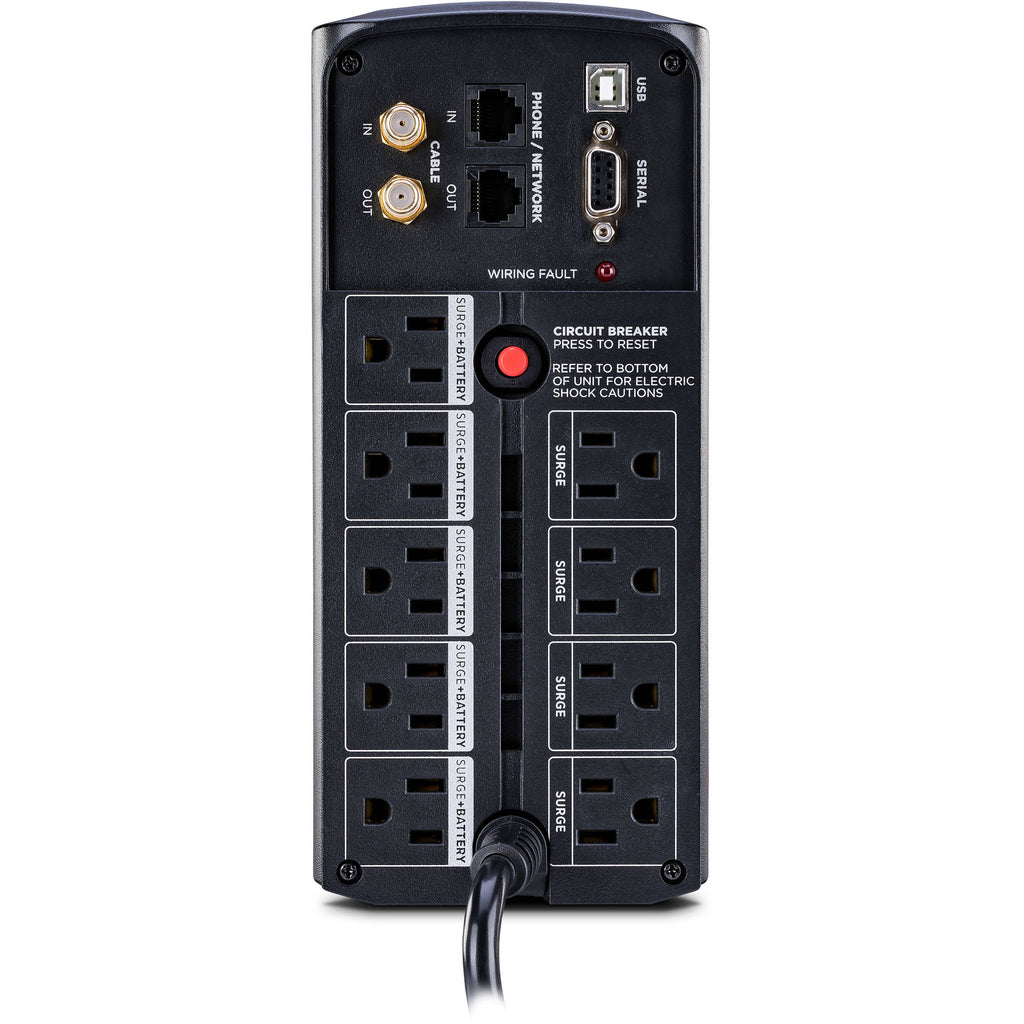

This mini-tower power supply offers nine total outlets that are capable of absorbing up to 1,080 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, five of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, while the other four just provide surge protection. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6 ports.
This power supply is Energy Star qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal Edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $350,000.
Typical Applications
- Desktop Computers
- Home Networking/VoIP
- Personal Electronics
- Home Theater Device
Features
- Capacity: 1000 VA / 600W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Runtime (half/full): 9 minutes / 2 minutes
- Plug type & cord: NEMA 5-15P, 6' cord
- Outlets: 9 (4 surge, 5 surge + battery backup)
- Communication: USB, Serial
- Data line protection: Telephone, Ethernet, Coaxial
- Management software: PowerPanel Personal Edition
- ENERGY STAR qualified: Yes
- Lifetime $350,000 Connected Equipment Guarantee
UPC: 649532010004
| General |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS Bypass Technology |
| Input |
| Voltage | Nominal 120 V |
| Automatic Voltage Regulation | Yes - Single Boost (10%) |
| Input Voltage Range | 90 - 142 VAC |
| Frequency | 60 Hz ± 3 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | 45° Offset Right |
| Cord Length | 6.0' / 1.8 m |
| Output |
| VA | 1,000 |
| Watts | 600 |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets - Total | 9 |
| Outlets - Battery & Surge Protected | 5 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4 ms |
| Battery |
| Runtime at Half Load | 9 minutes |
| Runtime at Full Load | 2 minutes |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| User Replaceable | Yes |
| Hot Swappable | Yes |
| Typical Recharge Time | 8 hours |
| Replacement Battery | RB1290 |
| Battery Quantity | 1 |
| Protections |
| Surge Suppression | 1,080 joules |
| EMI/RFI Filtration | Yes |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo 10 / 100) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications |
| LCD Backlight | Black |
| Intelligent Multifunction LCD Interface | Displays: Load Capacity %, Load Capacity Absolute, Battery Charge %, Input / Output Voltage, Input/ Output Frequency, Estimated Runtime, AVR, On Battery, Overload, Schedule, Silence, Fault |
| HID Compliant USB Port | Yes |
| Serial Port | Yes (Dry Contact) |
| Management Cable | USB Cable |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Software | PowerPanel Personal Edition (free download) |
| SNMP/HTTP Remote Monitoring | No |
| Environmental |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Relative Humidity | 0 - 90% (non-condensing) |
| Operating Elevation | 10,000' / 3,048 m |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Storage Elevation | 50,000' / 15,240 m |
| Physical |
| Form Factor | Mini-Tower |
| Dimensions | 3.9 x 9.0 x 10.2" / 9.9 x 22.9 x 25.9 cm |
| Weight | 15.0 lb / 6.8 kg |
| Packaging Info |
| Package Weight | 17.45 lb |
| Box Dimensions (LxWxH) | 15.0 x 12.5 x 7.1" |
In the Box
CyberPower CP1000AVRLCD Intelligent LCD UPS
- $350,000 Lifetime Connected Equipment Guarantee
- Limited 3-Year Warranty
