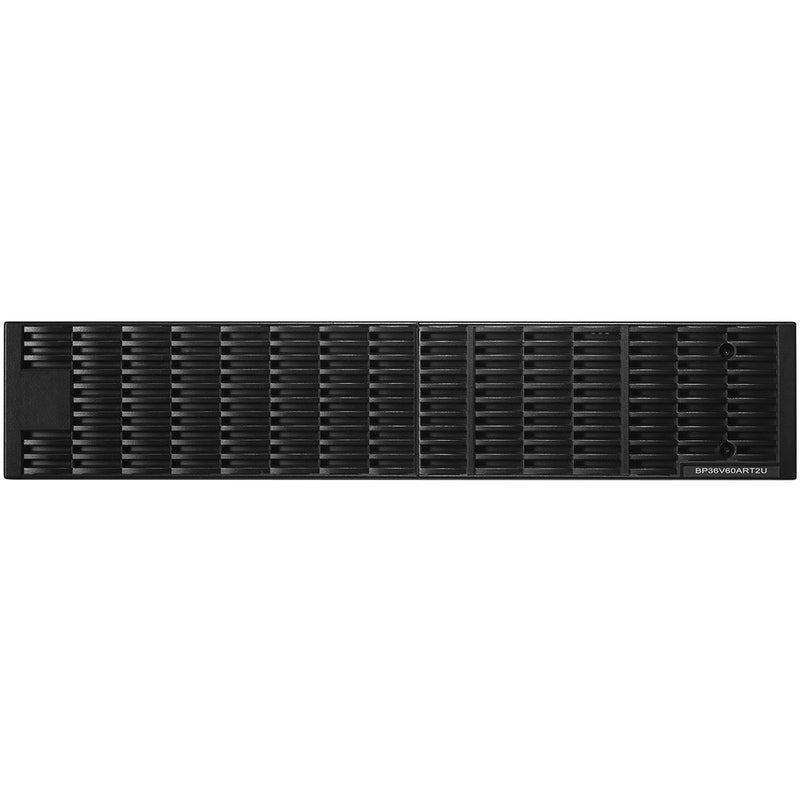

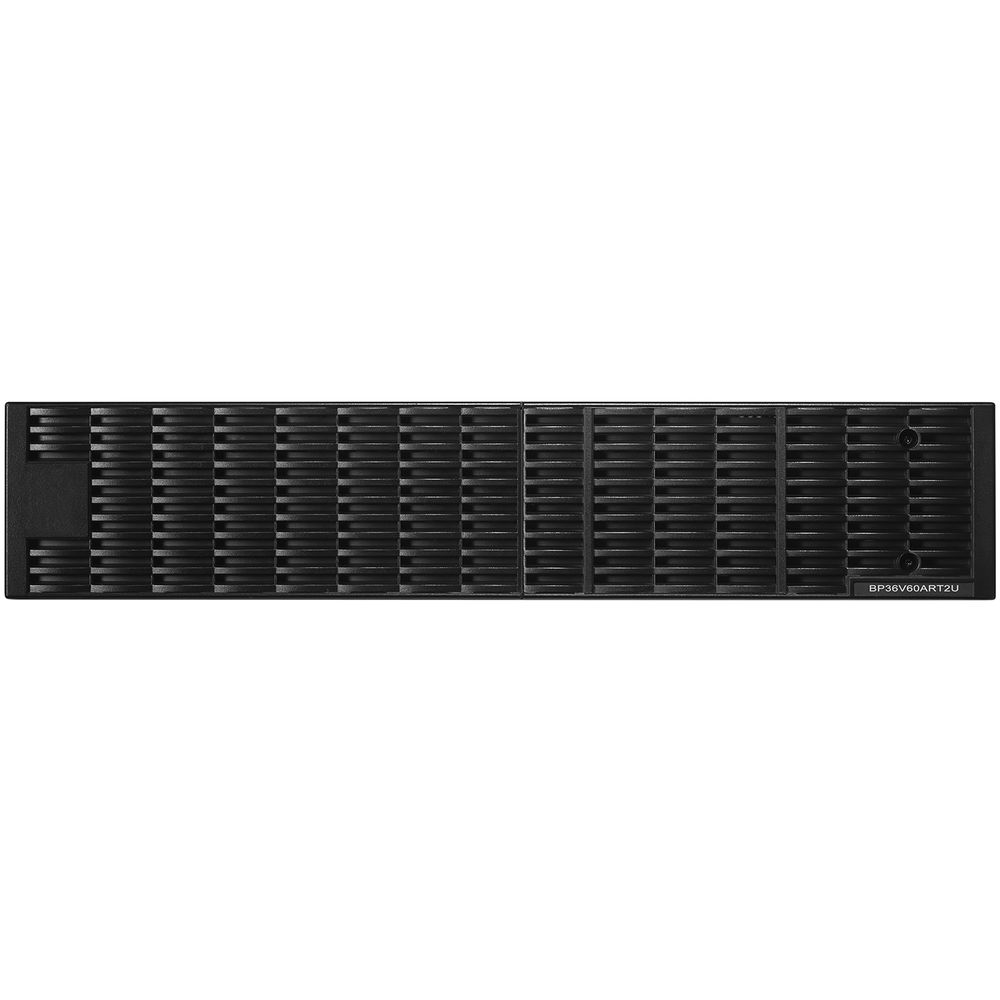

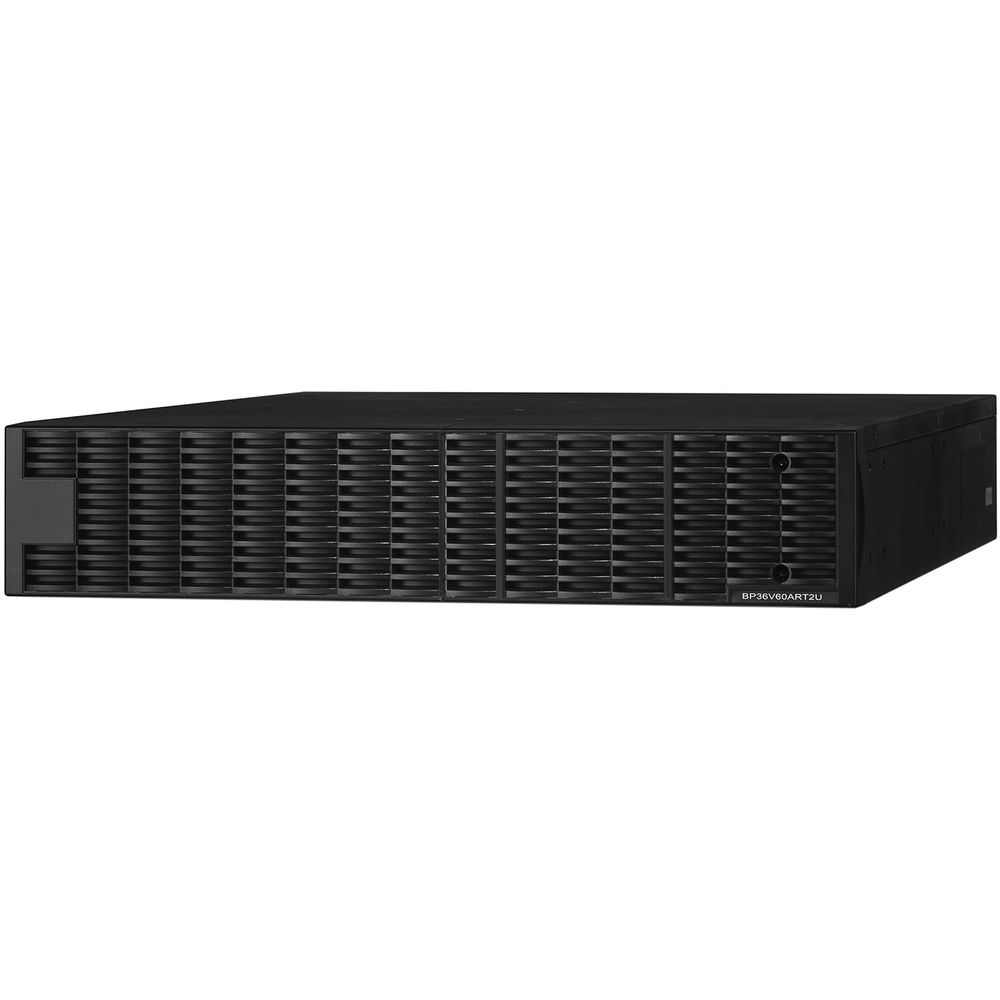

CyberPower BP36V60ART2U Overview
The BP36V60ART2U Extended Battery Module Extended Battery Module from CyberPower will extend the battery life of select models of their Smart App Online UPS systems during power outages. This battery module features a hot-swappable and user-replaceable battery pack consisting of six 12V/9Ah sealed lead-acid cells with a typical recharge time of 4 hours from 0 to 90%. Thanks to a 2 RU form factor, this module can be installed in a rack or tower configuration to match the form factor of the UPS it is supporting. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity. Additionally, up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system.
OL1000RTXL2U Smart App Online UPS Series
OL1000RTXL2UN Smart App Online UPS Series
OL1500RTXL2U Smart App Online UPS Series
OL1500RTXL2UN Smart App Online UPS Series
Expands runtime and quickly restores full backup power with Fast Charge Technology.
Can be replaced without powering down vital equipment.
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Uses a three-cycle charging mode that improves battery life and reduces generated heat.

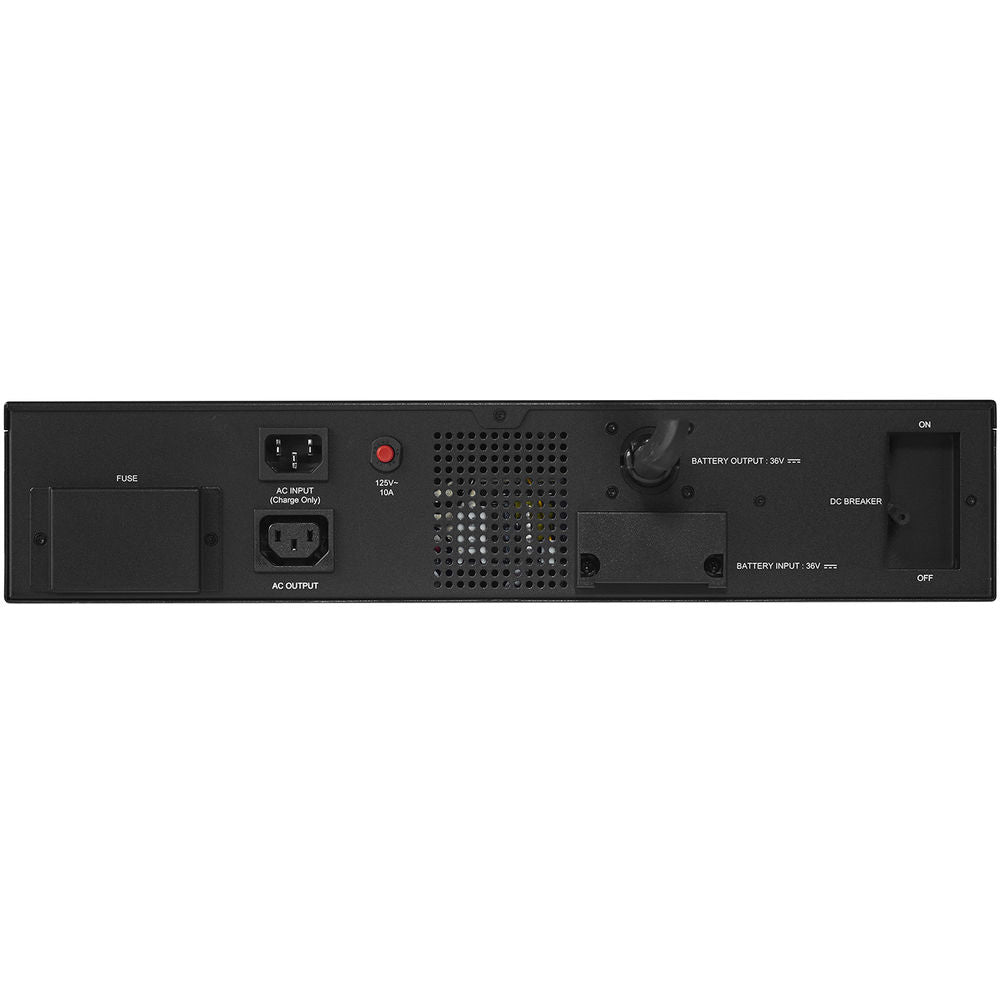

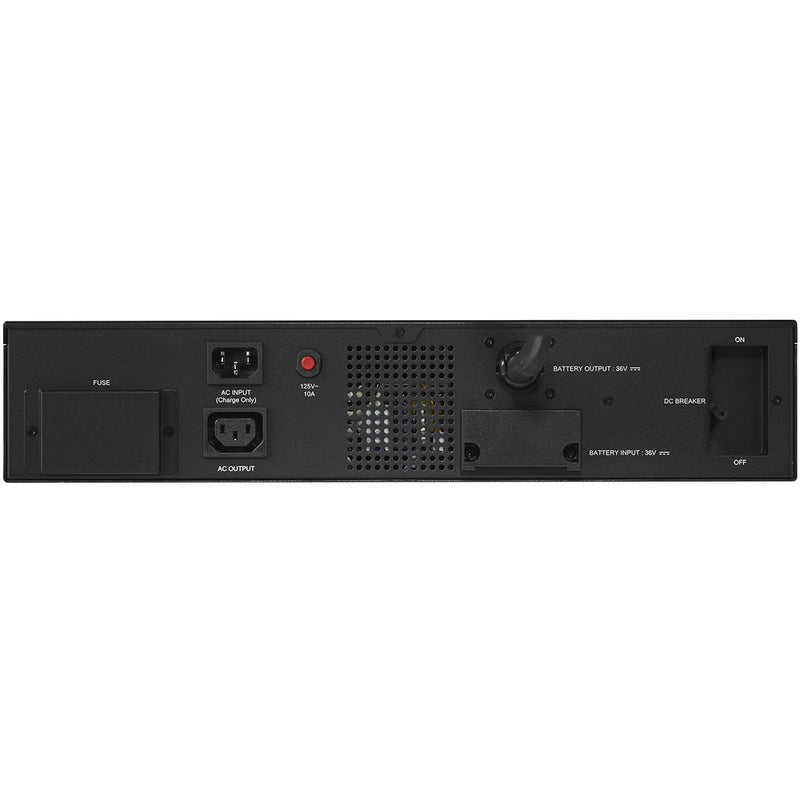

Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system.
User-Replaceable DC Fuses
Are located behind an easy-access panel.
Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload.
Allows for horizontal rack or vertical tower installation.
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
![]()
UPC: 649532604951
In the Box
- CyberPower BP36V60ART2U Extended Battery Module
- Left Rackmount Rail
- Right Rackmount Rail
- Left Hanging Bracket
- Right Hanging Bracket
- IEC320 C14 to NEMA 5-15P Power Cord
- 2 x Rackmount Ears/Stands
- Tie Plate
- 8 x M5X8L Pan Head Screws (Black)
- 12 x M5X12L Pan Head Screws (Black)
- 6 x MX56L Pan Head Screws (Silver)
- 8 x Plastic Washers
- 10 x Screw Hole Dust Covers
- 12 x Rubber Feet
- Limited 3-Year Warranty
CyberPower BP36V60ART2U Specs
| Cells |
6 |
| Battery Capacity |
108 VAh |
| Chemistry |
Lead-Acid |
| Maximum Current |
60 A |
| Output Voltage |
36 VDC |
| Recharge Time |
4 Hours |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 90% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% |
| Operating Altitude |
0 to 10,000' / 0.00 to 3048 m |
| Storage Altitude |
0 to 50,000' / 0.00 to 15,240 m |
| Certifications |
CSA, FCC, RoHS, UL
*as per Manufacturer |
Physical
| Rack Form Factor |
2 RU |
| Dimensions |
17 x 16.9 x 3.5" / 431.8 x 429.3 x 88.9 mm |
| Weight |
50.6 lb / 23 kg |
Packaging Info
| Package Weight |
66 lb |
| Box Dimensions (LxWxH) |
22.63 x 21.63 x 9.38" |
