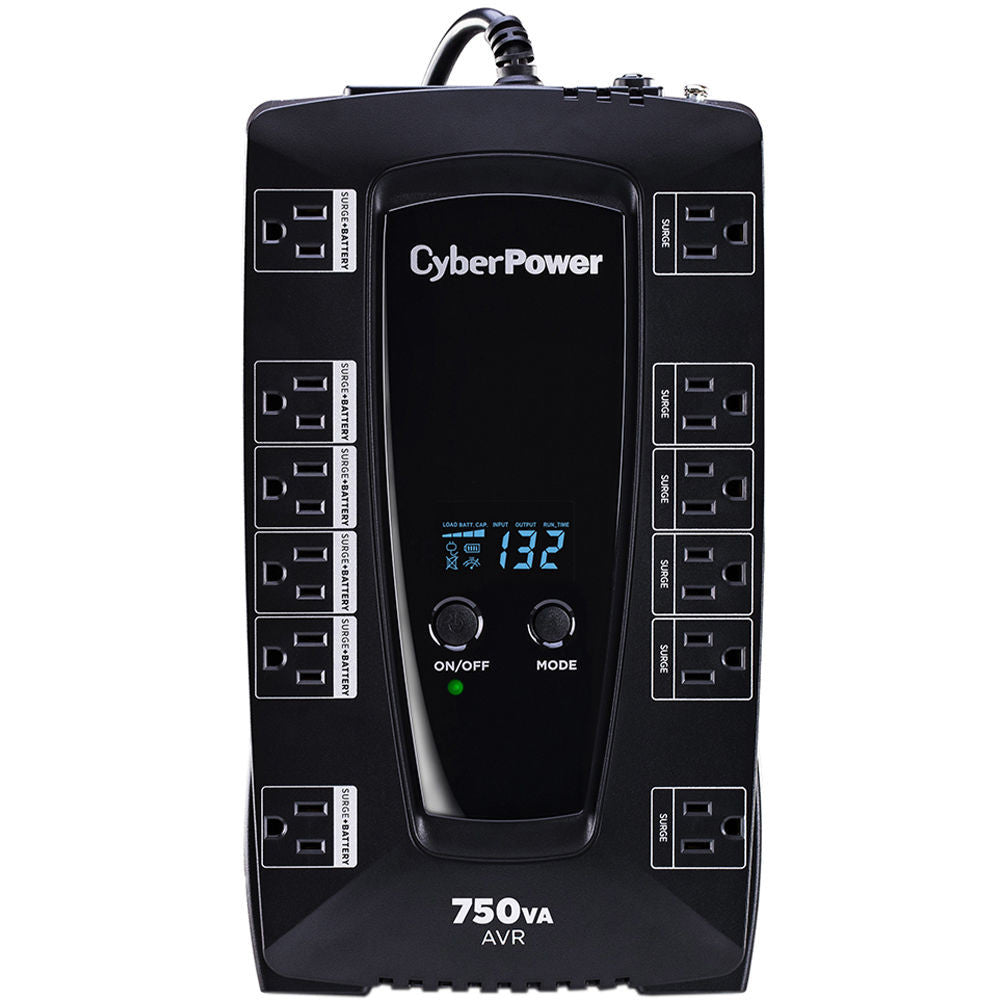

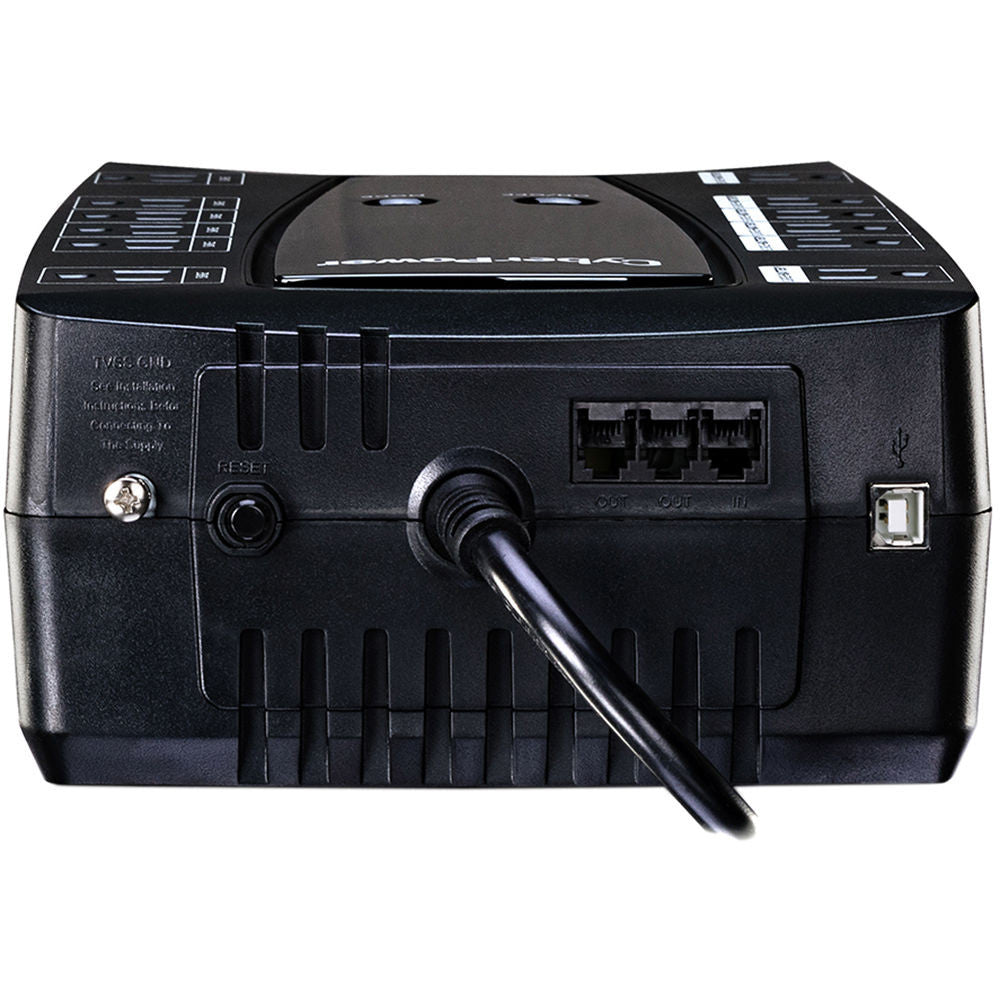

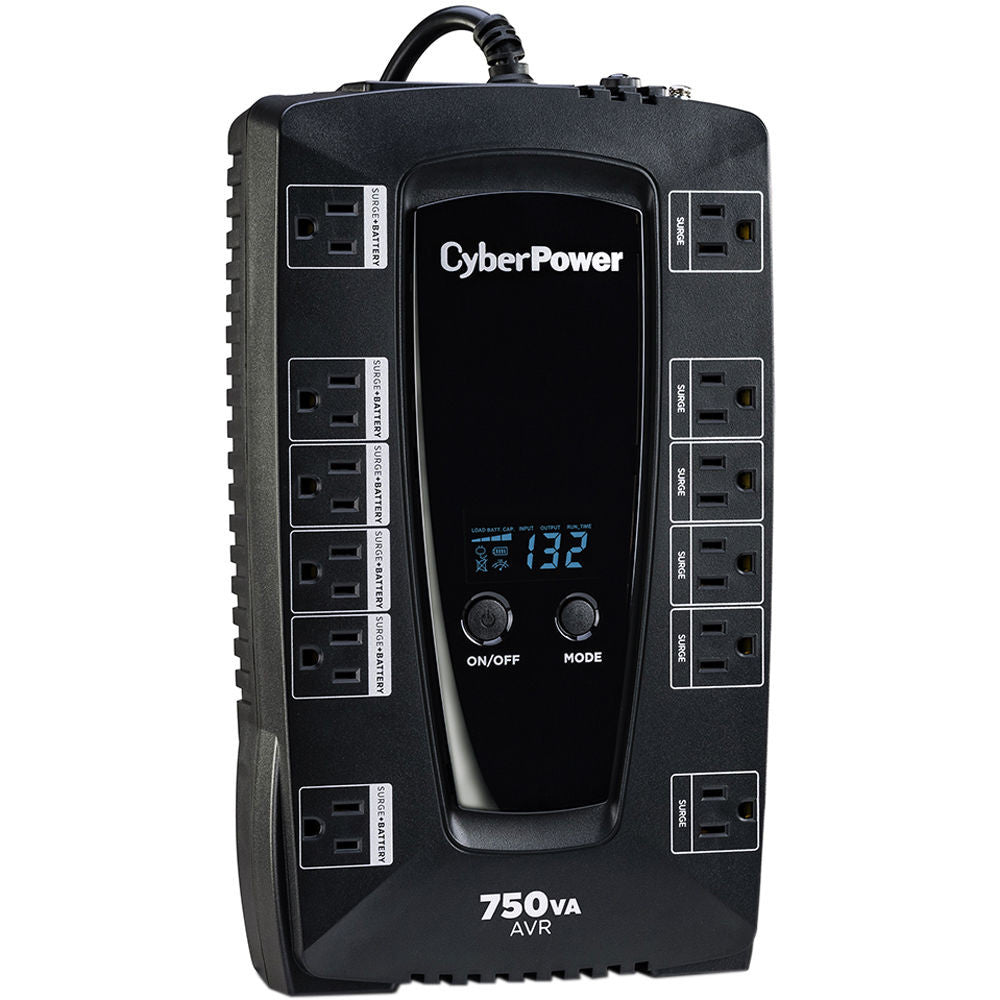

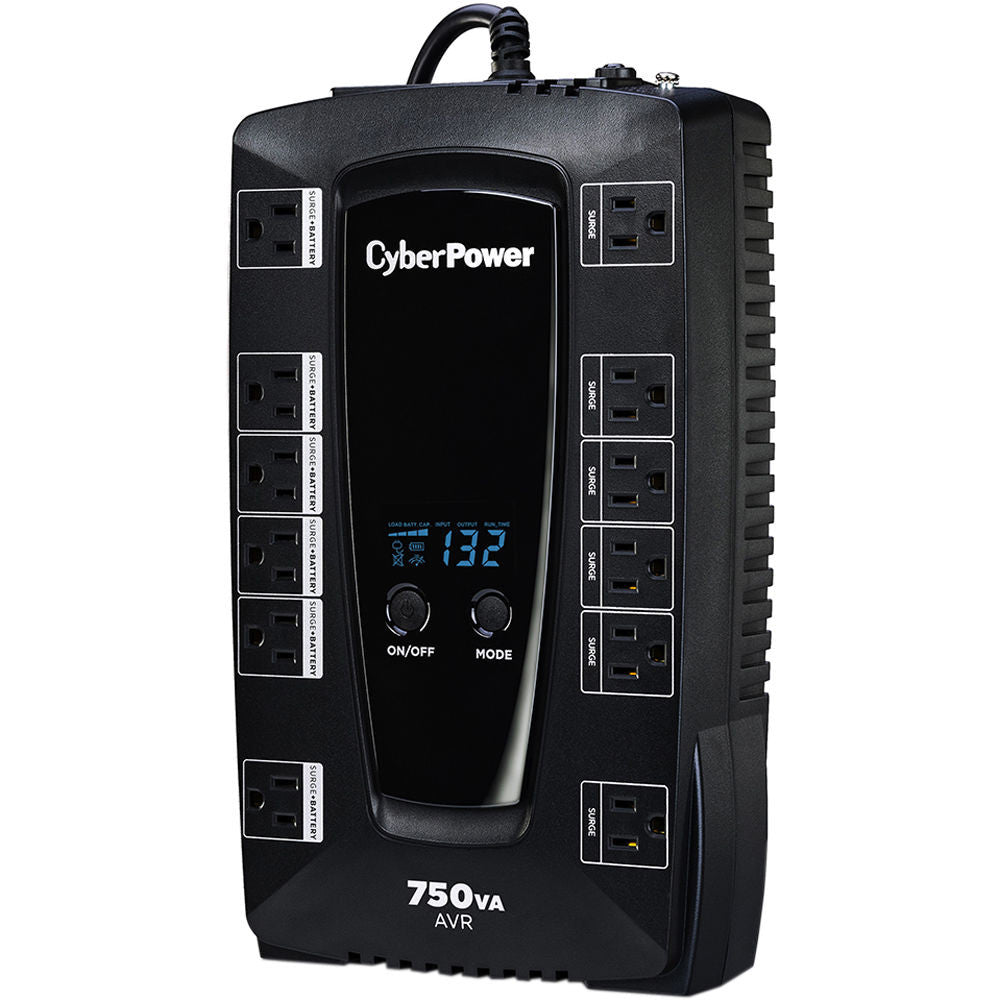

The AVRG750LCD Intelligent LCD UPS (750VA/450W) from CyberPowe r safeguards PCs and other electronics (monitors, cable/DSL modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its AVR (Automatic Voltage Regulation) boost/buck technology delivers consistent and clean AC power, for protecting connected equipment and preventing business interruptions. The composite integrated circuitry offers advanced lightning protection.
The UPS system is ENERGY STAR qualified with GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat build-up.
- Suitable for desktop computers, home networking/VoIP, personal electronics, and home theater devices
- Capacity of 750VA/450W
- Line Interactive Topology
- AVR (Automatic Voltage Regulation)
- Multi-function LCD Screen
- GreenPower UPS
- ENERGY STAR qualified
- Full-time surge protection and battery backup
- Desktop form factor
- 12 outlets, USB port, and RJ11 protection
- PowerPanel Personal edition software
- EMI/RFI filtration
UPC: 649532617661
| General |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS bypass technology |
| Input |
| Input Voltage | Nominal 120 V |
| Input Frequency | 60 Hz ± 3 Hz |
| Voltage Range | 90 to 148 VAC |
| Plug Type | NEMA 5-15P |
| Plug Style | Right angled, 45° offset right |
| Cord Length | 5' (1.52 m) |
| Output |
| VA | 750 VA |
| Watts | 450 W |
| Automatic Voltage Regulation (AVR) | Boost: 1 +10%
Buck: -10% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated sine wave |
| Outlets | Total: 12
Battery & Surge Protected: 6
Surge-Only Protected: 6 |
| Outlet Type | NEMA 5-15R |
| Power Factor | Rated: 0.6 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer time | 4 ms |
| Battery |
| Runtime | 7.6 minutes at half load
2.5 minutes at full load |
| Battery Type | Sealed lead-acid |
| Battery Size | 12 V/ 7 Ah |
| Replacement Battery | RB1270B |
| User Replaceable | Yes |
| Battery Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Management and Communications |
| HID Compliant USB Port | Yes |
| Management Cable | USB |
| LED Indicators | Power On, Wiring Fault |
| Alarms | Audible: On Battery, Low Battery, Overload, Fault |
| Indicators | LCD: Voltage, Frequency, Runtime, % Load, % Battery, Online, Muted |
| Software | PowerPanel Personal edition |
| Environmental |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 0 to 90% non-condensing |
| Storage Temperature | 5 to 113°F (-15 to 45°C) |
| Maximum Operating Elevation | 6,562' (2000 m) |
| Maximum Storage Elevation | 50,000' (15000 m) |
| Certifications |
| Safety | UL1778 4th, cUL 107.3-05, FCC DOC Class B |
| Environmental | RoHS compliant |
| Physical |
| Form Factor | Desktop |
| Dimensions (W x H x D) | 12.2 x 7 x 3.5" (309.88 x 177.8 x 88.9 mm) |
| Weight | 12.4 lb (5.62 kg) |
| Packaging Info |
| Package Weight | 14.8 lb |
| Box Dimensions (LxWxH) | 14.7 x 9.7 x 5.2" |
In the Box
CyberPower AVRG750LCD Intelligent LCD UPS (750VA/450W)
