CyberPower SX950U Overview
-
1Description
-
2Battery Backup
-
3Surge Protection
-
4Simulated Sine Wave Output
-
5USB Charge Ports
-
6GreenPower UPS High-Efficiency Design
-
7Transformer-Spaced Outlets
-
8PowerPanel Personal Software
-
9ENERGY STAR
-
10Limited Three-Year Warranty
-
11Connected Equipment Guarantee

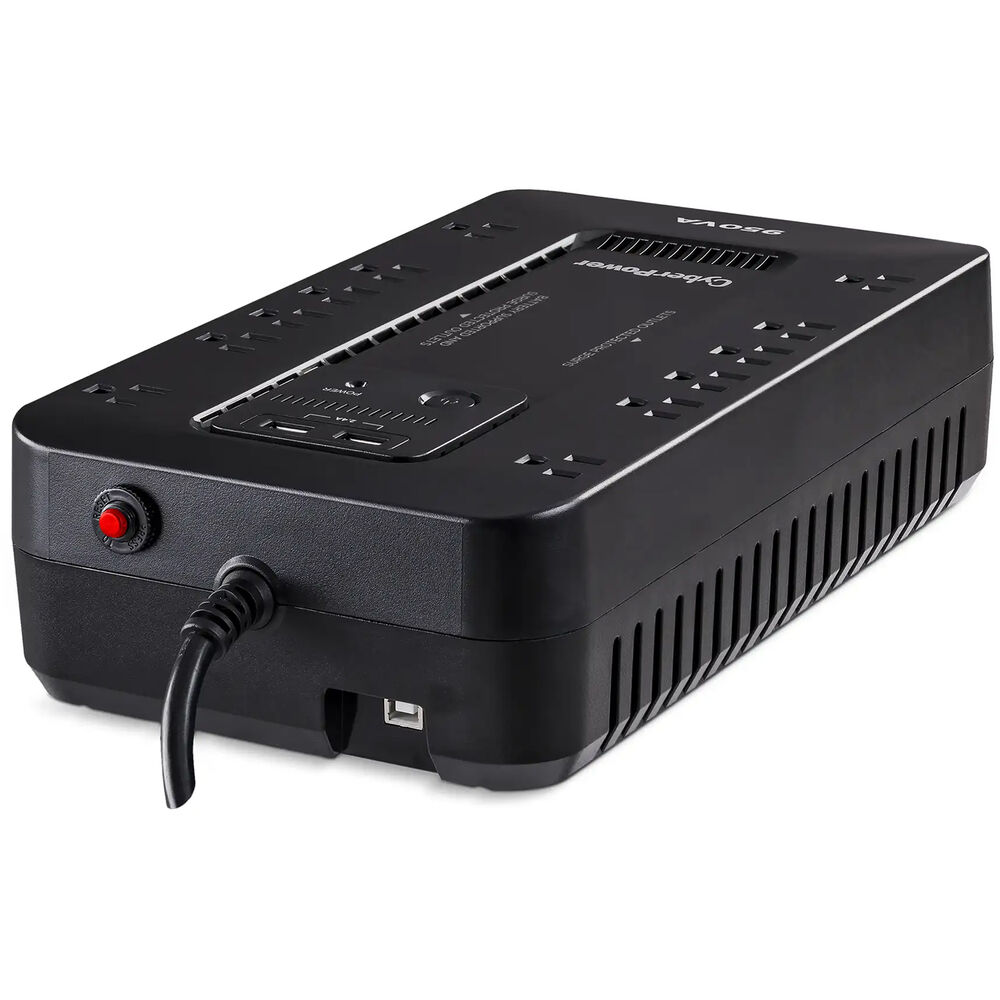

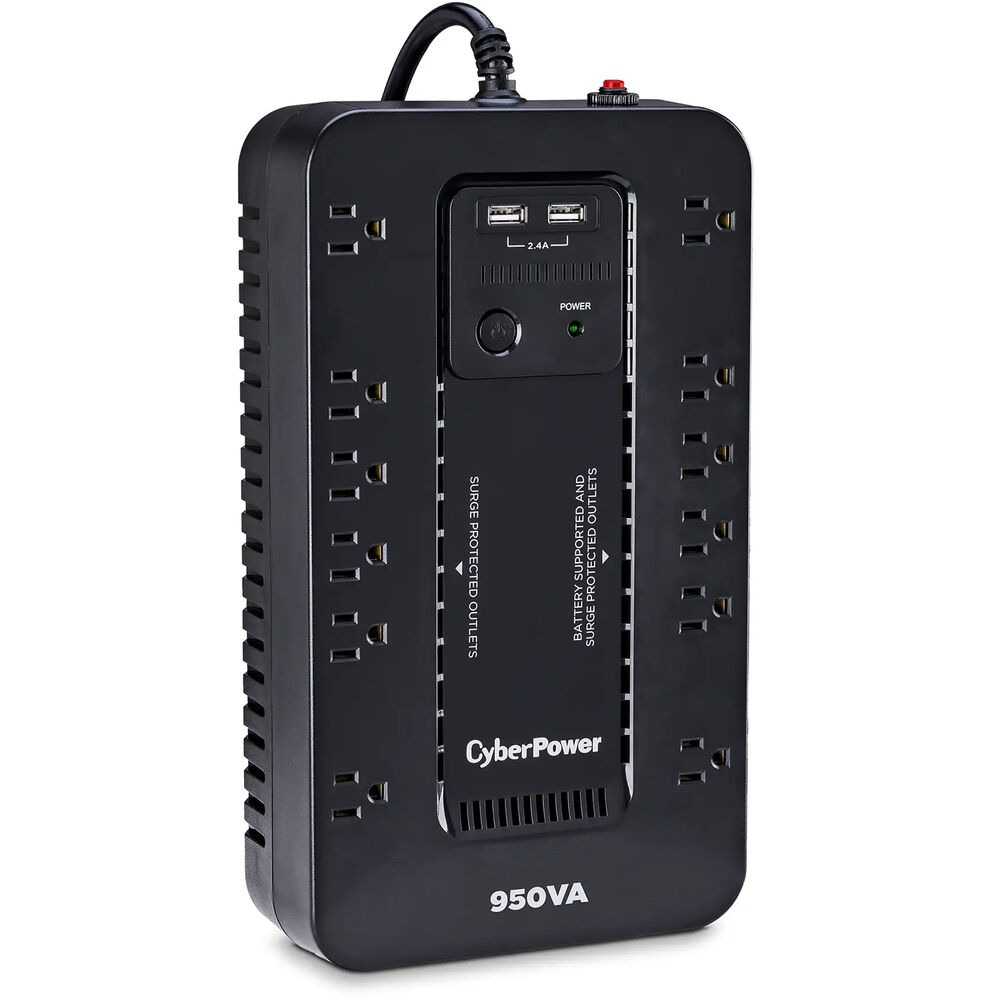

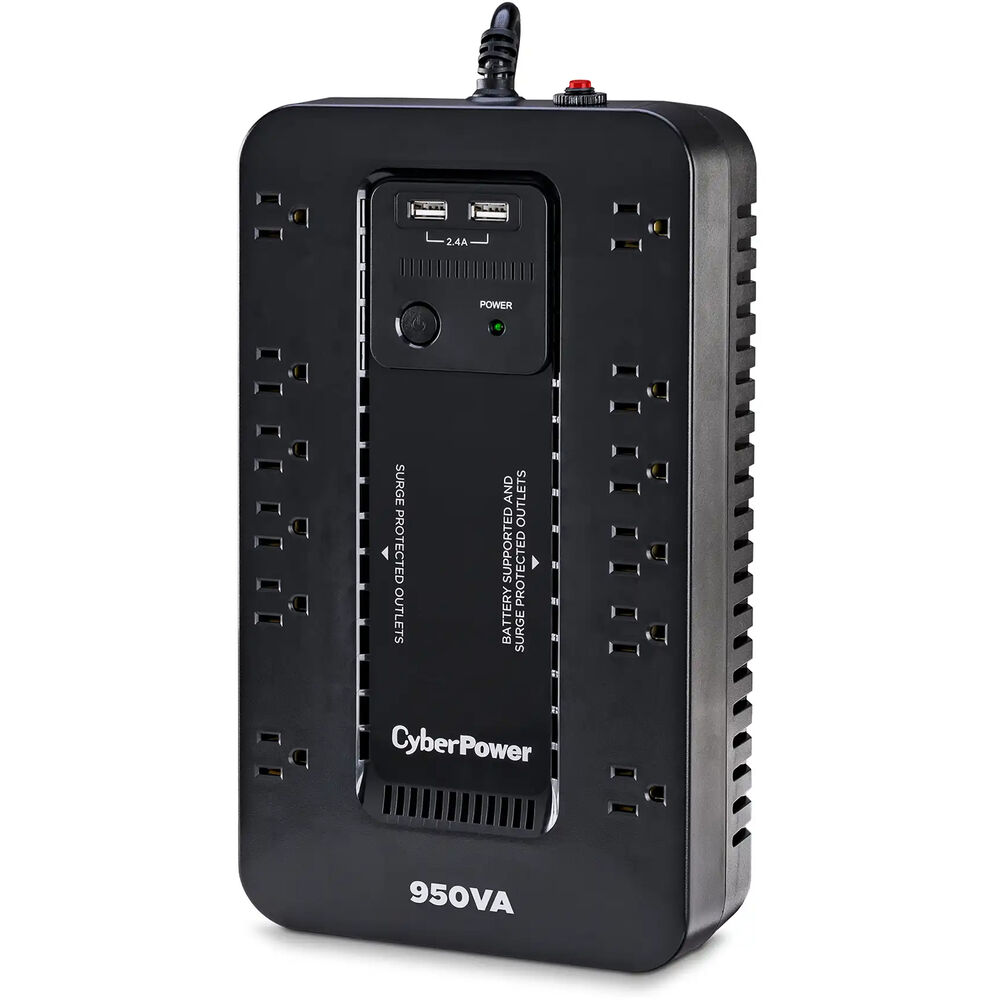

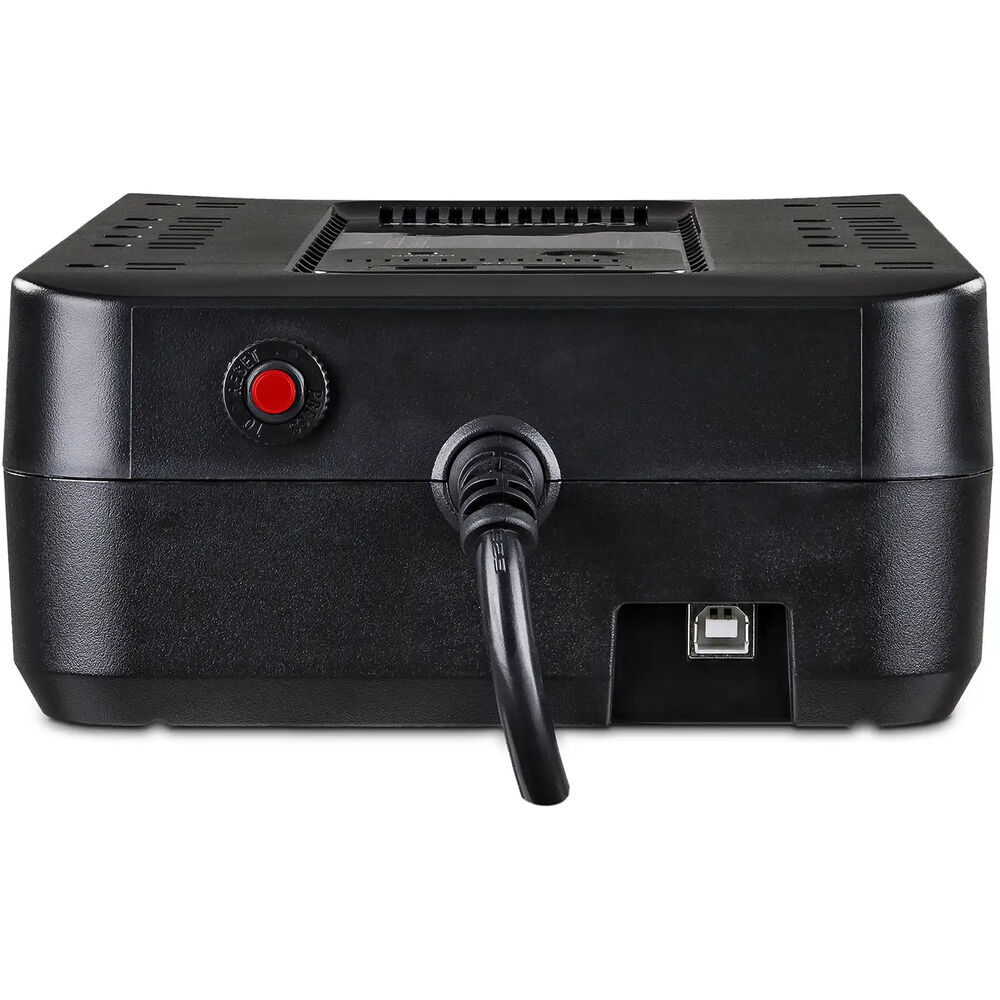

Keep crucial equipment protected with the 12-Outlet 950VA/510W Standby UPS from CyberPower. Sporting twelve surge-protected NEMA 5-15R outlets, this UPS provides battery backup power on six of the outlets, allowing you to safely power down connected equipment during a surge or overage. Two USB Type-A ports also provide a total of 2.4A of power for tablets, phones, and other accessories. An integrated circuit breaker provides 890 Joules of energy protection when 120V input exceeds 15A.
Rated at 950VA of apparent power or a charging capacity of 510W, this uninterruptible power supply delivers two minutes of runtime at full load, extended to seven and a half minutes at half load. It also features an eight-hour recharge time. Plus, audible alarms alert you to the USP entering battery mode, low battery, overloads, or faults. A USB Type-B communication port allows you to control power supply settings from a connected host. A compact design and 5' power cable terminating in a NEMA 5-15P plug ensure easy deployment.
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require pure sine wave output.
Rapidly charge and power USB devices such as tablets, iPads, smartphones, MP3 players, and other mobile accessories.
GreenPower UPS High-Efficiency Design
Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
Transformer-Spaced Outlets
Accommodates large transformer-based plugs without compromising the access of other outlets.
PowerPanel Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. A free software download is available from CyberPower.
This model is an ENERGY STAR qualified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Limited Three-Year Warranty
CyberPower will replace a defective UPS system (including batteries) within three years of the purchase date.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
In the Box
- CyberPower 12-Outlet 950VA/510W Standby UPS
- USB Type-A to B Cable
Table of Contents
- Description
- Battery Backup
- Surge Protection
- Simulated Sine Wave Output
- USB Charge Ports
- GreenPower UPS High-Efficiency Design
- Transformer-Spaced Outlets
- PowerPanel Personal Software
- ENERGY STAR
- Limited Three-Year Warranty
- Connected Equipment Guarantee
CyberPower SX950U Specs
General
| Total Outlets |
12 x NEMA 5-15R (4 Transformer-Sized) |
| Protected Outlets |
6 x NEMA 5-15R (Battery and Surge)
6 x NEMA 5-15R (Surge Only) |
| Plug Type |
NEMA 5-15P |
| USB Charging Ports |
2 x USB Type-A (2.4 A) |
| SmartSlot Interface |
None |
| Coax Protection |
None |
| Data Line Protection |
None |
| Communications |
USB via Type-B |
Power
| Surge Energy Rating |
890 Joules |
| Maximum Current |
15 A |
| Maximum Wattage |
510 W |
| Nominal Input Voltage |
120 VAC |
| Input Frequency |
50/60 Hz ± 3 Hz |
| Nominal Output Voltage |
120 VAC |
| Output Frequency |
50/60 Hz ± 1% (Auto Sensing) |
| Load Capacity |
950 VA |
| Circuit Breaker Rating |
15 A |
| Waveform |
Simulated Sine Wave |
Battery
| Chemistry |
Lead-Acid |
| Full-Load Runtime |
2 Minutes |
| Half-Load Runtime |
7.5 Minutes |
| Recharge Time |
8 Hours |
| User Replaceable |
No |
| Hot-Swap Support |
No |
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C |
| Operating Humidity |
0 to 95% (Non-Condensing) |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% (Non-Condensing) |
| Operating Altitude |
0 to 10,000' / 0.0 to 3048 m |
| Storage Altitude |
0 to 50,000' / 0.0 to 15,240 m |
| Certifications |
CEC, ENERGY STAR, FCC-B, RoHS, cUL
*as per Manufacturer |
Physical
| Cable Length |
5' / 1.5 m |
| Material of Construction |
Plastic |
| Rackmount Size |
None |
| Dimensions (W x H x D) |
12.2 x 7 x 3.1" / 310 x 178 x 79 mm |
| Weight |
7.69 lb / 3.49 kg |
Packaging Info
| Package Weight |
8.925 lb |
| Box Dimensions (LxWxH) |
15.1 x 9.9 x 4.3" |
