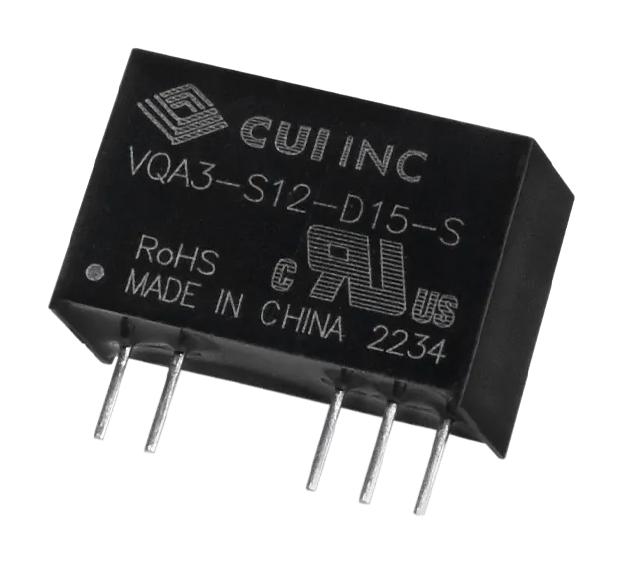

VQA3-S15-D15-S is a VQA3-S series 7-pin SIP isolated DC-DC converter designed for IGBT driver applications. Featuring dual unregulated outputs, an extended temperature range, 5000VDC isolation and high efficiency. This DC-DC converter is ideally suited to provide a fully isolated gate drive for wind turbine and solar panel applications. Certified by 62368 UL/cUL, designed to meet 62368, EN/IEC.
- Typical input voltage is 15VDC, output voltage is 15/-9.0VDC
- Maximum output current is ±100mA
- Typical efficiency is 87%
- Reinforced insulation, CMTI > 200 kV/µs
- Typical ultra-low isolation capacitance is 3.5pF, continuous short circuit protection
- Typical switching frequency is 200KHz (at full load, nominal input)
- Plastic, flame retardant and heat resistant material, natural convection cooling method
- Operating temperature range from -40°C to 105°C
- Dimensions is 19.50 x 9.80 x 12.5mm
Other details
| Brand |
CUI |
| Part Number |
VQA3-S15-D15-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| 3D Product Image EN |
|
| Declaration of Conformity EN |
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
