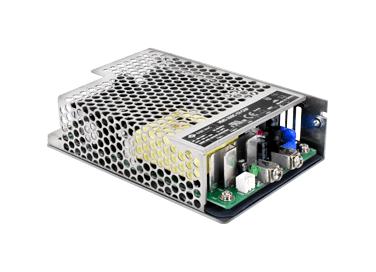

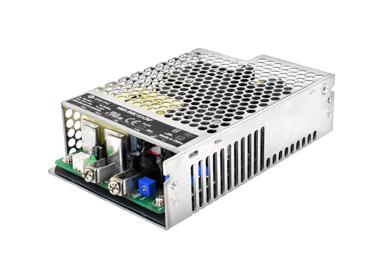

VMS-350C-CNF series is a metal enclosed AC-DC power supply designed for use in a range of medical, dental and home healthcare products. The series features active power factor correction, low leakage current (<0.1mA), low standby power consumption (0.5W) and 60601, 60335 and 61558 certifications. These medically certified AC-DC-power supplies are ideal for medical designs seeking to reduce standby and overall power consumption.
- Metal case with no fan AC to DC converter
- Certified to 60601, 60335 and 61558 safety standards
- Suitable for safety class I or class II installations
- Over voltage, over current, over temperature and short circuit protections
- Adjustable output via trim POT
Product details
| Power Supply Applications:
Household & Medical
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
350.2W
|
| Output Voltage - Output 1:
36VDC
|
| Output Current - Output 1:
9.73A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
90V AC to 264V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
VMS-350C-CNF Series
|
Other details
| Brand |
CUI |
| Part Number |
VMS-350C-36-CNF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
