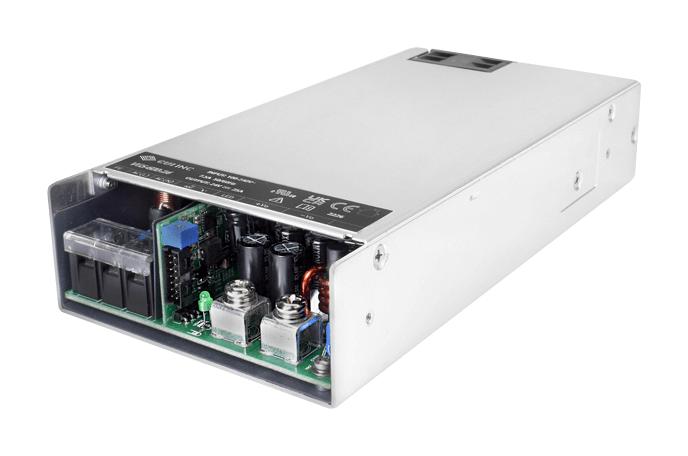

VGS-600-24 is a VGS-600 series internal AC/DC power supply. This internal AC-DC power supply is 62368 certified and is additionally designed to meet 61558 system requirements. Featuring a wide input range and additional conformal coating or terminal cover options, this rugged chassis mount unit is ideal for reducing standby power usage in industrial applications. It includes short-circuit, over-current, over-voltage and over-temperature protection. Certified by certified to 62368: IEC/EN/UL, designed to meet 61558: EN, designed to meet 60335: EN.
- Input voltage range from 80 to 277VAC, 110 to 390VDC, typical output voltage is 24VDC
- Maximum output current is 25A, maximum output power is 600W
- Typical efficiency is 94%(Measured at 230VAC)
- Active PFC, isolation up to 4000VAC
- Operating altitude up to 5000m, remote on/off
- Internal fan cooling, PCB conformal coating
- Remote output voltage sensing, metal (AL1100, SGCC) case material
- Operating temperature range from -40°C to 70°C
- Dimension (L x W x H) is 101.6 x 203.1 x 40.6mm
Product details
| Power Supply Applications:
ITE & Household
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
600W
|
| Output Voltage - Output 1:
24VDC
|
| Output Current - Output 1:
25A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
80V AC to 277V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
VGS-600 Series
|
Other details
| Brand |
CUI |
| Part Number |
VGS-600-24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
