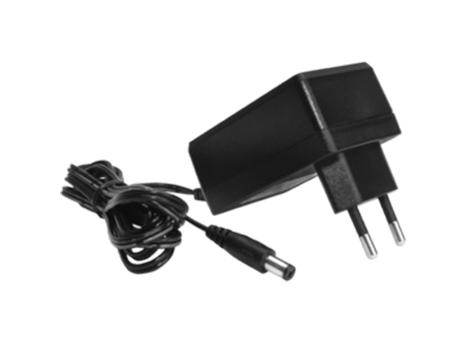

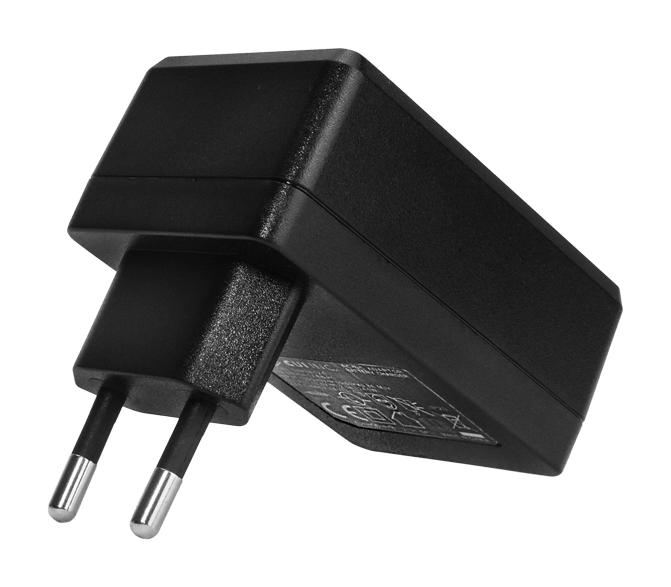

SWH24-9-EB-P5 is a SWH24-E series AC-DC power supply. This designed to meet the current US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Featuring no-load power consumption of less than 0.1W, this AC-DC power supply is a continuation of CUI's initiative to provide customers with the most efficient power solutions utilizing the latest in green power technology.
- Input voltage range from 90 to 264VAC, input frequency range from 47 to 63Hz
- Nominal output voltage is 9VDC, maximum output current is 2.2A
- Maximum output power is 19.8W, efficiency level is 65% (10%)
- Europe AC input type, black case colour
- Centre positive plug polarity, household appliance applications
- UL 61558 certified, IEC 61558 and EN 60335 compliant
- Universal input voltage range, over current and short circuit protections
- Typical isolation voltage is 3000VAC (input to output at 10mA for 1 minute)
- Operating temperature range from 0 to 40°C
- Dimension is 69.48 x 44.38 x 48.3mm
Other details
| Brand |
CUI |
| Part Number |
SWH24-9-EB-P5 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
