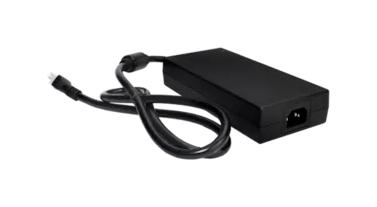

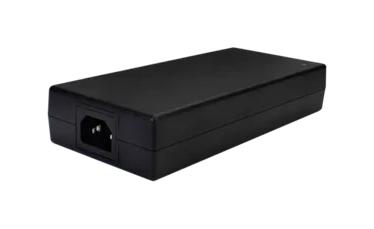

SDM300G-U series is a medical grade desktop AC-DC power supply with C14 inlet certified to the medical 60601-1 edition 3.1 safety standards for MOPP applications and 4th edition EMC requirements. Featuring compact size, medical power supplies utilize GaN (gallium nitride) technology and are a continuation of CUI's initiative to provide customers with global solutions for medical equipment.
- Single regulated outputs, no cable
- Over voltage, over current, over temperature and short circuit protections
- Power factor correction
- Output voltage of 24VDC
- Maximum output current of 12.5A, maximum output power of 300W
- Dimension is 183mm length x 85mm width x 35mm height
- Maximum ripple and noise is 240mVp-p (at full load, nominal input, 20MHz bandwidth oscilloscope)
- VI efficiency level, operating temperature of -20 to 40°C (60°C maximum at 50% load)
- Each output terminated with 0.1µF multilayer ceramic and 47µF low ESR electrolytic capacitors
- AC inlet type is IEC320/C14, safety approvals are UL/cUL 60601, TUV, UKCA, CB, EMI/EMC-CE, FCC
Other details
| Brand |
CUI |
| Part Number |
SDM300G-24-U-P219 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
