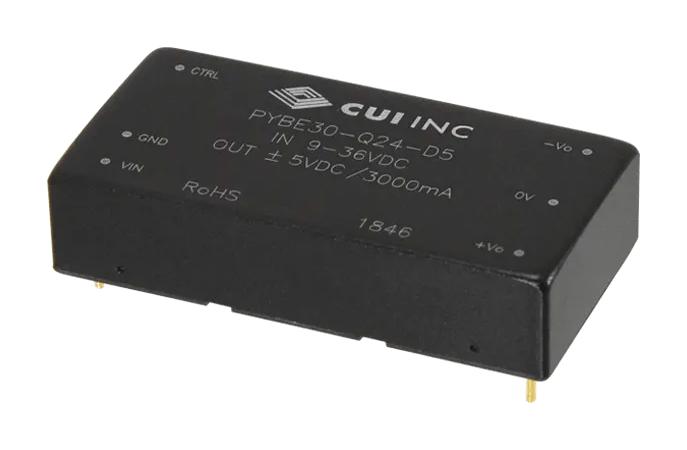

PYBE30-Q24-D5H is a PYBE30 series high-efficiency isolated DC to DC converter packaged in an industry standard footprint. Supporting a 4:1 input range and regulated output, the series is ideal for battery-driven applications where charging and discharging conditions require an ultra-wide input range. This encapsulated unit also come standard with an operating temperature range of -40 to +85°C, providing a rugged solution for use in harsh environments.
- 9VDC to 36VDC input voltage range (24VDC typical), dual regulated outputs
- ±5VDC output voltage, ±3000mA maximum output current, 30W maximum output power
- With heatsink, 86% typical efficiency
- Industry standard pin-out, 1500VDC isolation
- Overvoltage protection, overcurrent protection and continuous short circuit protection
- Certified to 62368-1: EN, BS EN and 60950: UL
- Typical switching frequency is 300KHz PWM mode)
- Aluminium alloy case material
- Board mounting style
- Dimension is 51.40 x 26.20 x 16.50mm
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
4:1
|
| Output Power Max:
30W
|
| No. of Outputs:
2 Output
|
| Output Voltage - Output 1:
5V
|
| Output Current - Output 1:
3A
|
| Output Voltage - Output 2:
-5V
|
| Output Current - Output 2:
-3A
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
DIP
|
| Input Voltage DC Nom:
24V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
26.2mm
|
| Height:
16.5mm
|
| Depth:
51.4mm
|
| Input Voltage DC Min:
9V
|
| Input Voltage DC Max:
36V
|
| Product Range:
PYBE30 Series
|
Other details
| Brand |
CUI |
| Part Number |
PYBE30-Q24-D5H |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
