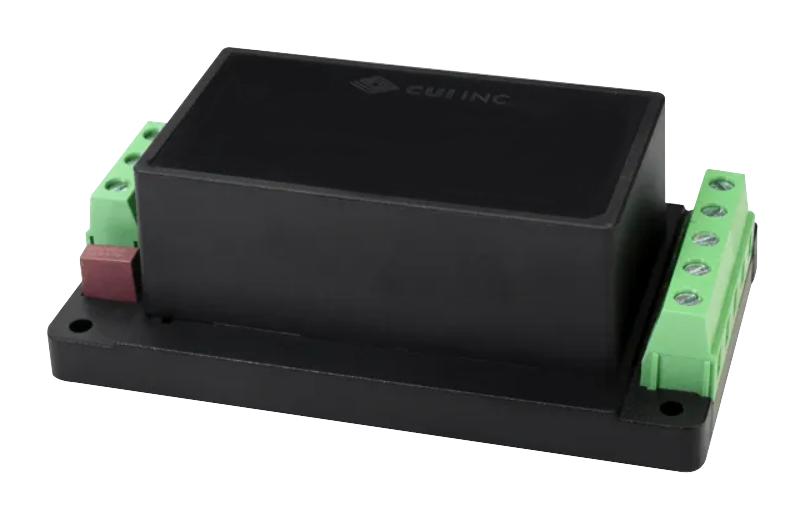

PSK-30D-T series is a family of encapsulated AC to DC power supplies housed in a compact, chassis mount package designed for easy installation. These single output, encapsulated modules feature input overvoltage category III design and a wide operating temperature range from -40 to 85°C. They are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
- 15VDC output voltage, 2A max output current, 30W max output power, 90% efficiency (at 230VAC input)
- Wide input range (85VAC to 305VAC)
- Class B emissions
- Certified to 62368: EN, UL, 60335: EN, 61558: EN safety standards
- Overvoltage, overcurrent, short circuit protections
- Input over voltage category III for fixed installations
- Switching frequency of 65KHz
- Dimension is 96.10mm x 54mm x 32.50mm (chassis mount), weight is 147g
- Black plastic, flame-retardant and heat-resistant (UL94V-0) case material
- Natural convection cooling method
Product details
| Power Supply Applications:
ITE & Household
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
30W
|
| Output Voltage - Output 1:
15VDC
|
| Output Current - Output 1:
2A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
85V AC to 305V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
PSK-30D Series
|
Other details
| Brand |
CUI |
| Part Number |
PSK-30D-15-T |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
