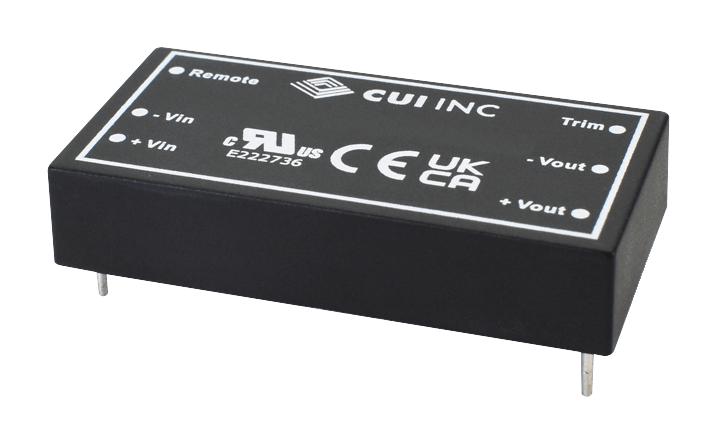

PRFE20W series is a 20W DC to DC converter designed specifically to meet the needs of railway applications. All models are designed to meet EN 45545, EN 50155, and EN 55035 standards while offering a host of features, including an 18:1 input range, regulated output and high efficiency.
- PRQE20W-D series DC to DC converter with 20W single isolated output and 12V output voltage
- UL/EN/IEC 62368 certified
- Meets EN 55032/55035/50155 with external circuit
- 3000VDC isolation
- Remote on/off, positive logic
- Wide operating temperature range from -40 to 105°C
- DIP mounting style, 200KHz switching frequency (output ripple frequency)
- UL 94V-0 rated plastic DAP case, dimensions is (LxWxH) 50.8mm x 25.4mm x 10.2mm
- Overcurrent, overtemperature, overvoltage, short circuit protection
- Dimensions is (LxWxH) 50.8mm x 25.4mm x 10.2mm
Other details
| Brand |
CUI |
| Part Number |
PRFE20W-O72-S12-D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
