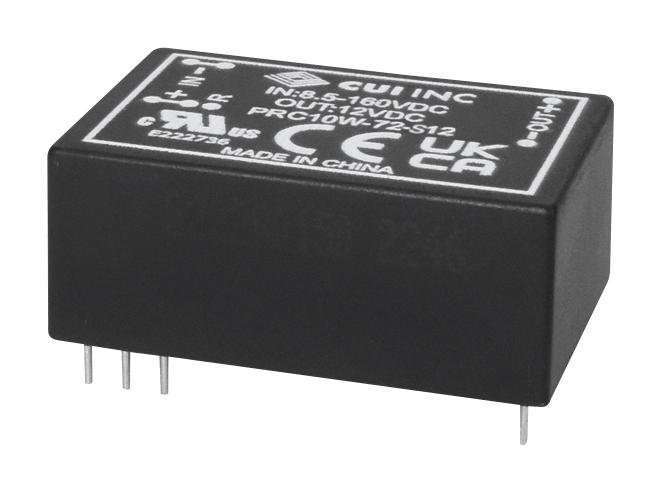

PRC10W-72-D12 is a PRC10W series 10W DC/DC converter. This is designed to meet the needs of the railway and other industrial applications. This model meets EN 50155 standards and offer a host of features, including an ultra-wide input range, and a robust operating temperature range. It includes over voltage, over current, and short circuit protection. Certified by certified to 62368: IEC, BS EN, UL, designed to meet 45545-2: EN.
- Typical input voltage is 72VDC, output voltage is +12VDC
- Maximum output current is ±416mA, dual output
- Typical efficiency is 87% at nominal input voltage 72VDC
- 4200VDC isolation, reinforced insulation
- Switching frequency range from 230 to 280KHz
- Plastic, DAP, UL 94V-0 case material, plastic, LCP, UL 94V-0 base material
- Base copper plated steel wire, plating, tin pin material
- Operating temperature range from -40 to 100°C
- Dimension is 31.8 x 20.3 x 12.7mm
Other details
| Brand |
CUI |
| Part Number |
PRC10W-72-D12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Declaration of Conformity EN |
|
| 3D Product Image EN |
|
| Packaging / Drawing / Footprint EN |
|
