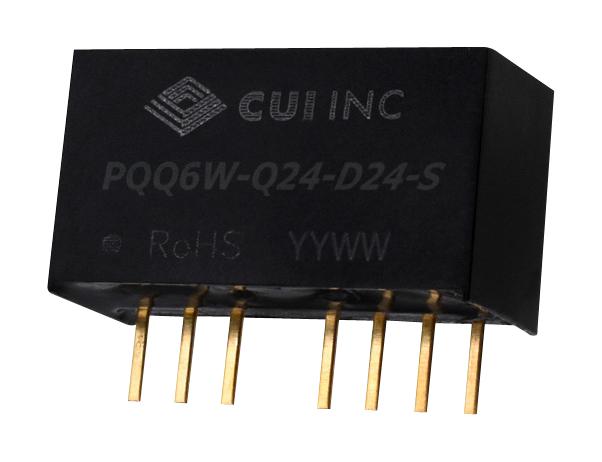

PQQ6W-Q24-D24-S is a PQQ6W-S series 6W DC-DC converter. It features a wide -40 to +105 °C temperature range. With an ultra-wide 4:1 input range, high efficiency and short circuit and over-current protection, this low-power DC-DC converter provides a rugged low-power solution for a variety of industrial, test & measurement, and telecommunication applications. Designed to meet 62368-1: EN/BS EN certified.
- Typical input voltage is 24VDC, output voltage is ±24VDC
- Maximum output current is ±125mA, typical efficiency is 82% (at nominal input voltage)
- Dual output, SIP packaging style
- Switching frequency is 500KHz at PWM mode
- Isolation voltage is 1500VDC
- Black plastic case material
- Dimension is 22mm � 9.5mm � 12mm
Other details
| Brand |
CUI |
| Part Number |
PQQ6W-Q24-D24-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
