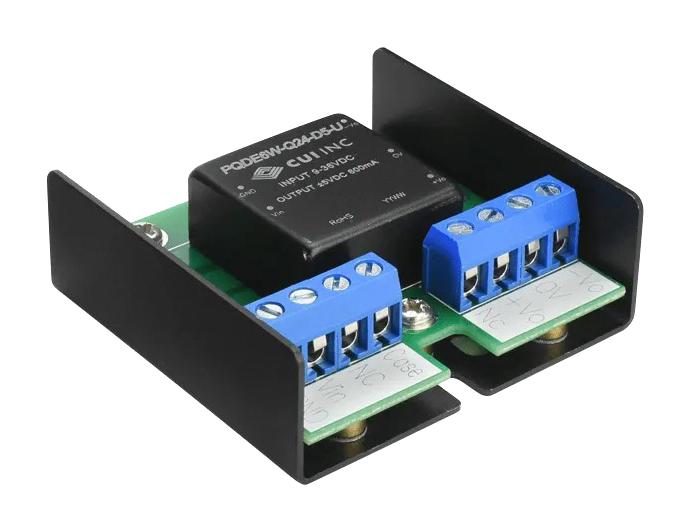

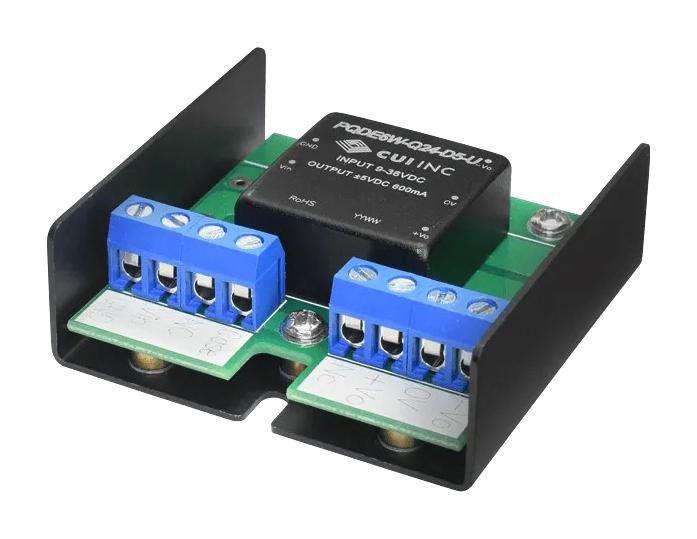

PQDE6W-Q24-S15-U is a PQDE6W-U series DC/DC converter. Producing 6W of continuous power, this family of isolated DC/DC converter housed in a compact chassis mount package designed with easy installation in mind. This low-profile module features a 4:1 input voltage range. It has wide -40 to +85°C operating temperature range. This is suitable for renewable energy, railway, and Industrial applications. It includes input under-voltage, output short-circuit, over-current and over-voltage protections.
- Typical input voltage is 24VDC, output voltage is 15VDC, output current is 400mA (max)
- Typical efficiency is 86% (measured at nominal input voltage and rated output load)
- High efficiency, same side input/output connections, single output
- 1500VDC isolation, EN/BS EN 62368-1 certified, U-frame mounting style
- Typical switching frequency is 300KHz
- Aluminium alloy case material
- Dimensions 55.00 x 52.30 x 19.00mm
Other details
| Brand |
CUI |
| Part Number |
PQDE6W-Q24-S15-U |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
| Declaration of Conformity EN |
|
| 3D Product Image EN |
|
