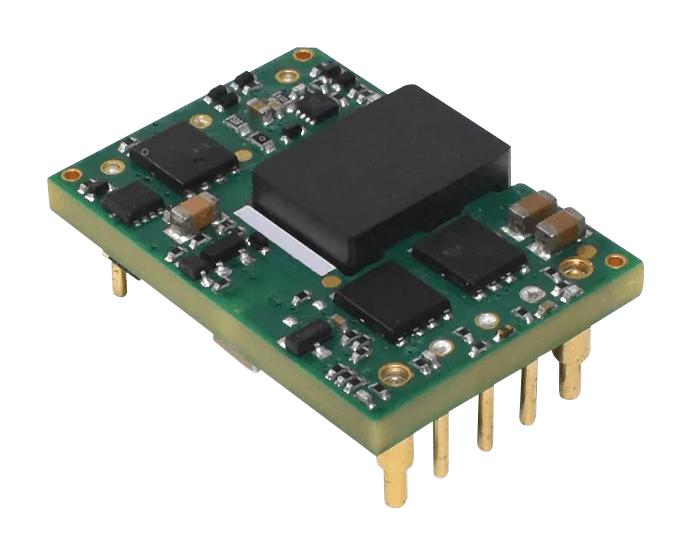

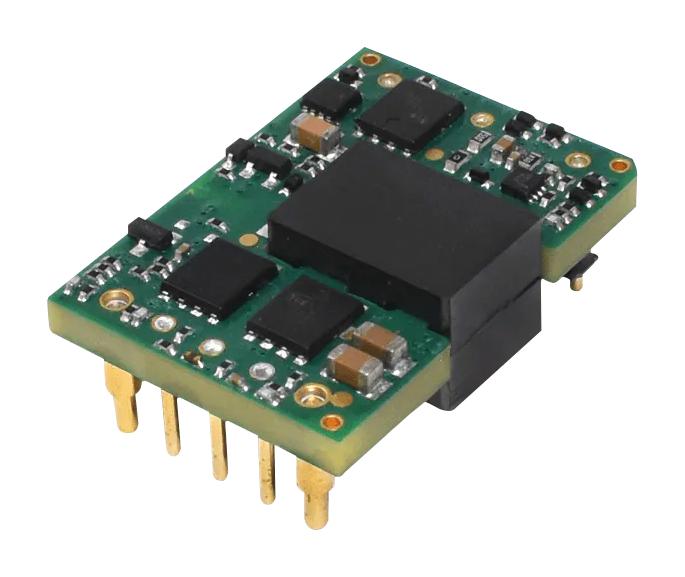

PQC75-48-S28-OH is a PQC75-O series compact, regulated DC-DC converter delivering 75W of output power and a -40 to +85°C temperature range. Featuring a 2:1 input range, remote on/off control, and a variety of protections, these DC-DC converter provides a rugged low power solution for a variety of industrial, test and measurement, and telecommunication applications.
- Input voltage range from 36VDC to 75VDC (48VDC typ), 28V single output voltage
- 2678mA maximum output current, 90% typical efficiency

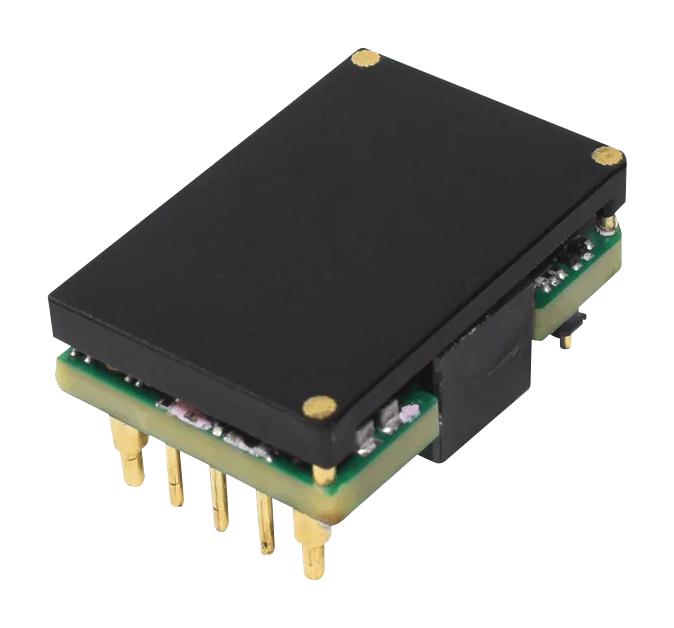

- Industry standard DOSA 1/16 brick, comes with heatsink
- Operating temperature range from -40 to 85°C
- Overcurrent, input undervoltage, overvoltage and output short circuit protection
- Remote on/off control
- EN/BS EN/UL 62368 certified
- Typical switching frequency is 300KHz (PWM mode)
- Isolation voltage is 1,500VDC (input to output for 1 minute at 1mA max)
- Dimension is 33.02 x 22.86 x 13.0mm
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
2:1
|
| Output Power Max:
75W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
28V
|
| Output Current - Output 1:
2.678A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
1/16 Brick, DOSA, Open Frame, DIP
|
| Input Voltage DC Nom:
48V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
22.86mm
|
| Height:
13mm
|
| Depth:
33.02mm
|
| Input Voltage DC Min:
36V
|
| Input Voltage DC Max:
75V
|
| Product Range:
PQC75-O Series
|
Other details
| Brand |
CUI |
| Part Number |
PQC75-48-S28-OH |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
