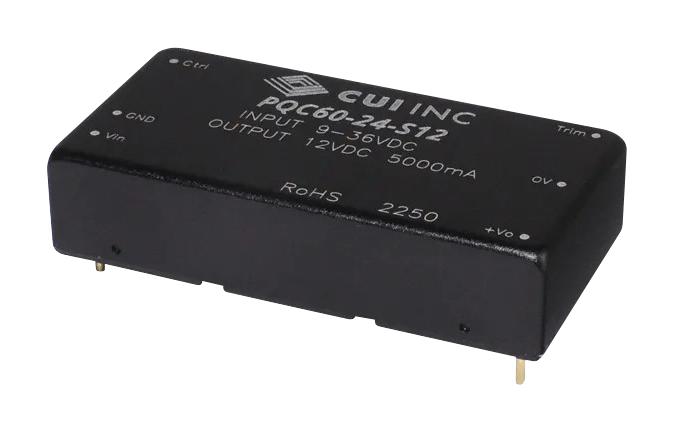

PQC60-24-S12 is a PQC60 series compact, regulated DC/DC converter providing 60W of output power and a wide -40 to +105 °C temperature range. Featuring a 4:1 input range, remote on/off control. It is a low-power solution for a variety of industrial, test and measurement, and telecommunication applications. It includes over-current, input under-voltage, over-voltage and output short-circuit protection. Designed to meet 62368: EN, BS EN approved.
- Typical input voltage is 24VDC, output voltage is 12VDC
- Output current range from 250mA to 5000mA
- Typical efficiency is 93% (measured at nominal input voltage and rated output load)
- 1500VDC isolation, single regulated outputs
- Typical switching frequency is 370KHz (PWM mode, and switching frequency is measured at full load)
- Natural convection cooling method
- 2 years limited warranty
- Dimension is 50.80 x 25.40 x 11.80mm
Other details
| Brand |
CUI |
| Part Number |
PQC60-24-S12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Packaging / Drawing / Footprint EN |
|
| 3D Product Image EN |
|
| Declaration of Conformity EN |
|
