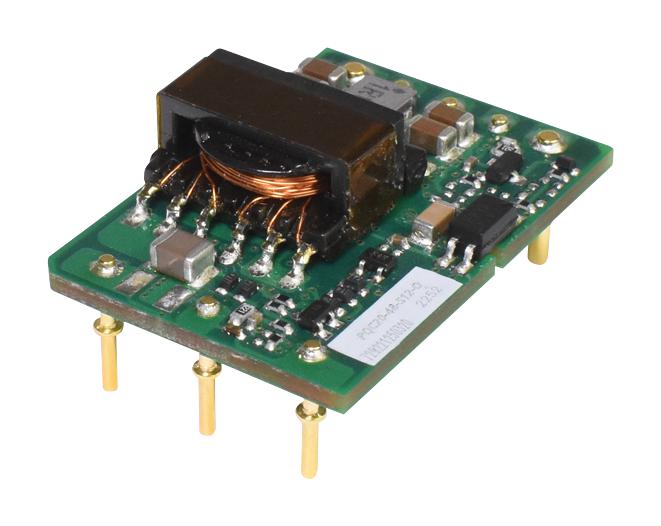

PQC20-48-S5-O is a compact, regulated PQC20-O series DC to DC converter providing 20 W of output power and a -40 to +85 °C temperature range. Featuring a 2:1 input range, remote on/off control, and a variety of protections, this DC to Dc converter provides a rugged low power solution for a variety of industrial, test & measurement, and telecommunication applications.
- Input voltage range from 48(36 to 60)VDC, output voltage of 5VDC
- Maximum output current is 4000mA
- Maximum ripple and noise is 150mVpp
- Typical efficiency is 88%
- Isolation voltage is 1500VDC
- Switching frequency is 230KHz(full load)
- Industry standard 1/16th brick
- Over-current, input under-voltage, over-voltage and output short-circuit protection
- Operating temperature range from -40°C to 85°C
- Dimension is 33.02 x 22.86 x 12.6mm
Other details
| Brand |
CUI |
| Part Number |
PQC20-48-S5-O |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Declaration of Conformity EN |
|
| Packaging / Drawing / Footprint EN |
|
| 3D Product Image EN |
|
