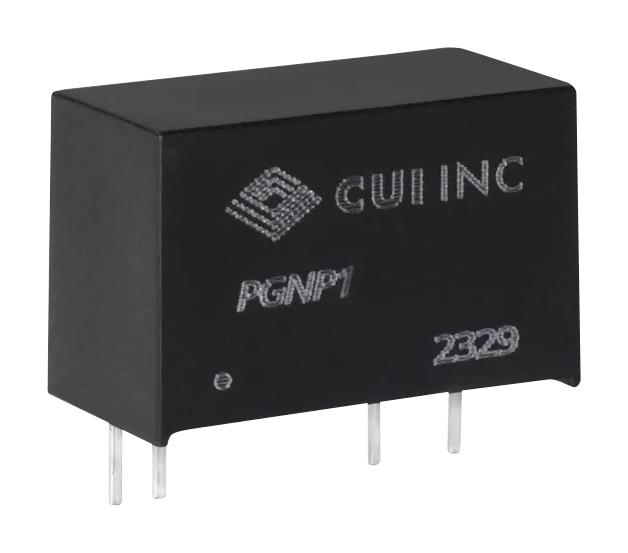

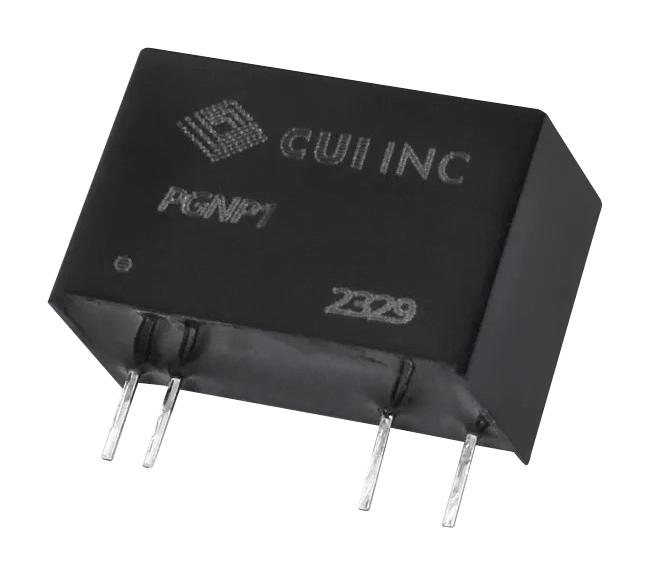

PGNP1-S12-S5-S is a PGNP1-S series of DC to DC converter that offers 1W of power, a 1:1 input range, and a wide operating temperature range of -40 to +105°C. Housed in a compact SIP package, this family of 1W isolated module is EN 60601-1 and UL 60601-1 certified, making it an ideal solution for medical instrumentation, consumer electronics, EV charging, and industrial electronics applications.
- Unregulated single output
- 10.8V to 13.2V input voltage range, 5VDC output voltage
- 200mA maximum output current, 79% efficiency
- 6000VDC isolation
- Designed to meet EN 62368-1
- Leakage current is less than 2µA
- Continuous output short circuit protection
- Reinforced insulation, black flame-retardant and heat-resistant plastic (UL94V-0) case
- 200KHz switching frequency at nominal input, full load
- Dimension is 19.50mm x 9.80mm x 12.50mm
Product details
| Power Supply Applications:
ITE & Medical
|
| Input Ratio:
1:1
|
| Output Power Max:
1W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
5V
|
| Output Current - Output 1:
200mA
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Unregulated
|
| Isolation Voltage:
6kV
|
| DC / DC Converter Type:
SIP
|
| Input Voltage DC Nom:
12V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
9.8mm
|
| Height:
12.5mm
|
| Depth:
19.5mm
|
| Input Voltage DC Min:
10.8V
|
| Input Voltage DC Max:
13.2V
|
| Product Range:
PGNP1-S Series
|
Other details
| Brand |
CUI |
| Part Number |
PGNP1-S12-S5-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
