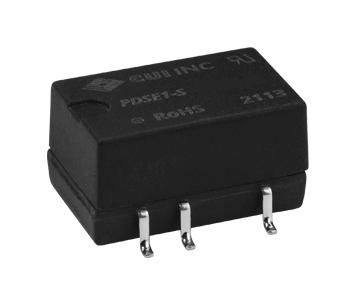

PDSE1-S3-D3-M is a PDSE1-M series unregulated DC to DC converter. This 1W isolated module is designed to offer improved efficiency, higher isolation, and superior thermal performance. Housed in a compact SMT package and featuring an ultra-wide -40 to +105°C operating temperature range, this low power DC to DC converter is ideal for precise conversion and isolation of DC rails within a range of industrial, telecom, security, and machine control applications.
- 2.97VDC to 3.63VDC input voltage range (3.3VDC typical), dual output models
- ±3.3VDC output voltage, ±152mA maximum output current
- 1W maximum output power, 77% typical efficiency
- Continuous, self recovery short circuit protection
- 1500VDC isolation
- No load input current as low as 5mA
- Compact SMT package, UL 62368 approval
- 220 to 270KHz switching frequency (100% load, nominal input voltage)
- Black flame-retardant and heat-resistant plastic (UL94V-0) case material
- Dimension is 15.24mm x 8.50mm x 7.25mm
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
1:1
|
| Output Power Max:
1W
|
| No. of Outputs:
2 Output
|
| Output Voltage - Output 1:
3.3V
|
| Output Current - Output 1:
152mA
|
| Output Voltage - Output 2:
-3.3V
|
| Output Current - Output 2:
-152mA
|
| Output Regulation:
Unregulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
Surface Mount DIP
|
| Input Voltage DC Nom:
3.3V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
8.5mm
|
| Height:
7.25mm
|
| Depth:
15.24mm
|
| Input Voltage DC Min:
2.97V
|
| Input Voltage DC Max:
3.63V
|
| Product Range:
PDSE1-M Series
|
Other details
| Brand |
CUI |
| Part Number |
PDSE1-S3-D3-M |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
