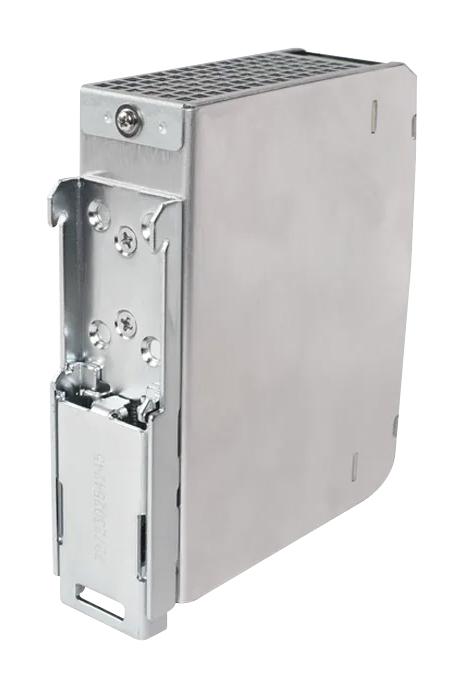

PDRD-75-24 is a PDRD-75 series AC-DC power supply. It is housed in a compact, DIN rail package designed for easy installation in control cabinets. Featuring over current, over voltage, and output short circuit protections, this DIN rail AC-DC power supply provides a rugged solution for use in industrial environments including factory automation and control applications. It is certified to 61010: UL, 62368: EN, BS EN designed to meet 60335: TBA, 61558: TBA, 4943: TBA safety approvals.
- CISPR32/EN55032 CLASS B compliant
- Constant current SCP and OCP, safety CLASS I, output voltage trim
- Input voltage range from 85 to 305VAC, 120 to 430VDC, 24VDC output voltage
- Maximum output current is 3.2A, maximum output power is 76.8W
- Typical efficiency is 90% (at 230VAC)
- Typical switching frequency is 65KHz
- Minimum isolation voltage is 4,000VAC (input to output for 1 minute, 10mA max)
- Operating temperature range from -40 to 85°C
- Metal (AL1100, SGCC) material
- Dimension is 110.00 x 87.50 x 32.00mm
Product details
| Power Supply Applications:
ITE, Household & Laboratory Equipment
|
| No. of Outputs:
1 Output
|
| Output Power Max:
76.8W
|
| Output Voltage - Output 1:
24V
|
| Output Current - Output 1:
3.2A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
85V AC to 305V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
PDRD-75 Series
|
Other details
| Brand |
CUI |
| Part Number |
PDRD-75-24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
