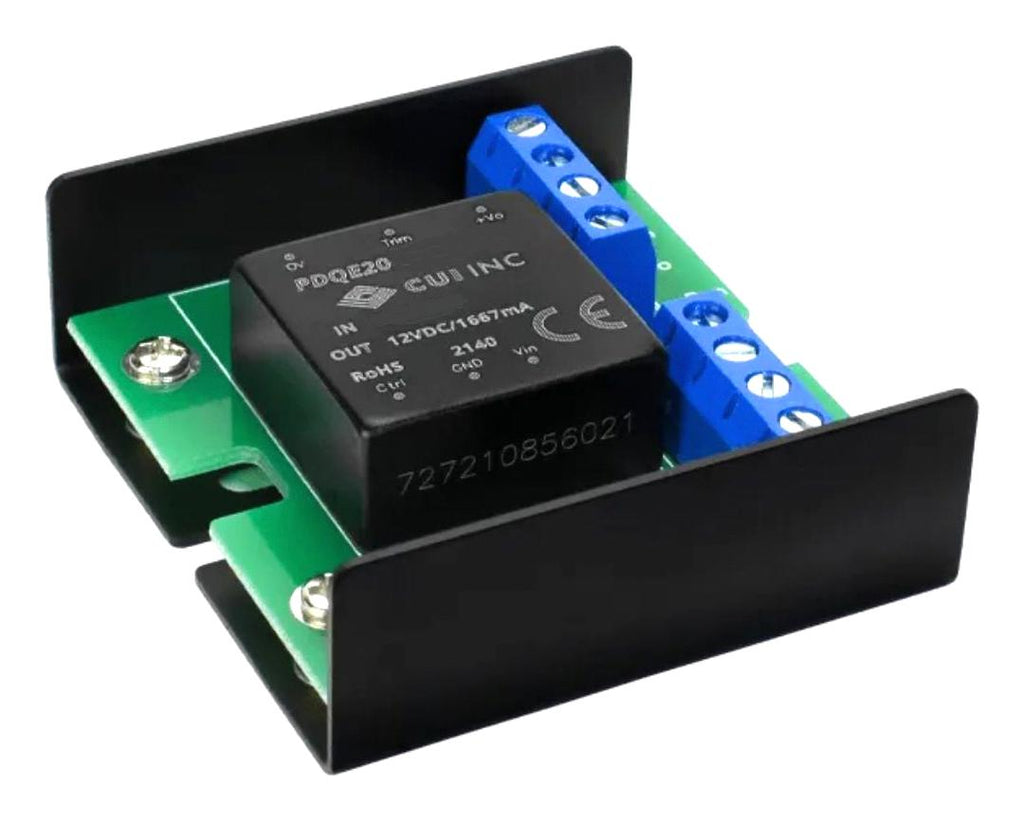

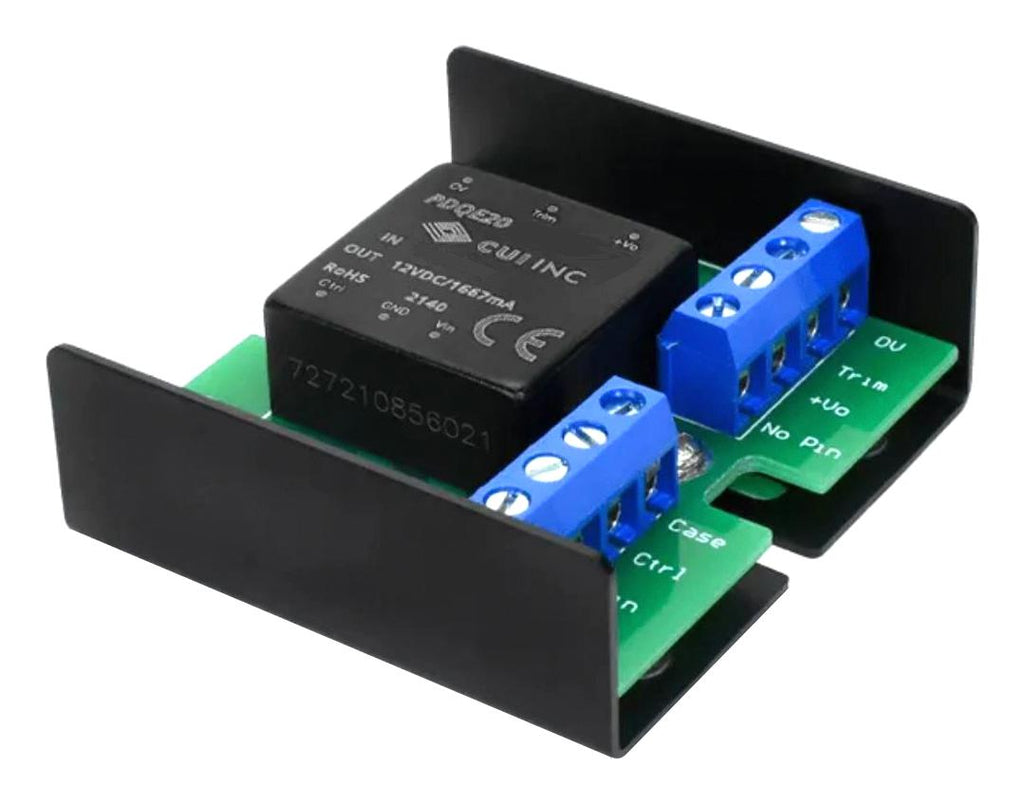

- PDQE20-U series DC-DC converter
- Typ input voltage 24VDC (ultra-wide 4:1 input range)
- Up to 20W isolated output and 1,500VDC isolation
- Same side input/output connections
- Single regulated outputs
- Input under-voltage, output short-circuit, over-current, & over-voltage protections
- Wide operating temperature range (-40 to 105°C)
- 12VDC output voltage and 1667mA output current
- 90% typ efficiency
- EN 62368-1 and meets UL 62368
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
4:1
|
| Output Power Max:
20W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
12V
|
| Output Current - Output 1:
1.667A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
Open Frame
|
| Input Voltage DC Nom:
24V
|
| DC / DC Converter Output Type:
Fixed, Adjustable
|
| Width:
52.3mm
|
| Height:
19mm
|
| Depth:
55mm
|
| Input Voltage DC Min:
9V
|
| Input Voltage DC Max:
36V
|
| Product Range:
PDQE20-U Series
|
Other details
| Brand |
CUI |
| Part Number |
PDQE20-Q24-S12-U |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
