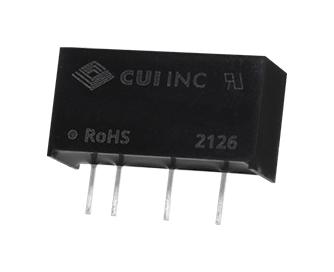

PDME2-S unregulated DC to DC converter series is a family of 2W isolated modules. Housed in a compact SIP package and featuring an ultra-wide -40 to +105°C operating temperature range, these low power DC to DC converters are ideal suited for high volume applications in the industrial, consumer and telecom space.
- Single output module
- 5VDC typical input voltage, 12V output voltage, 167mA maximum output current
- 85% typical efficiency (measured at nominal input voltage, full load)
- Continuous, auto recovery short circuit protection
- 1500VDC isolation
- No load input current as low as 8mA
- EN 62368-1 certified
- Switching frequency of 220KHz (100% load, nominal input voltage)
- Dimension is 19.65mm x 7.05mm x 10.16mm (LxWxH)
- Black flame-retardant and heat-resistant plastic (UL94V-0) case
Other details
| Brand |
CUI |
| Part Number |
PDME2-S5-S12-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
