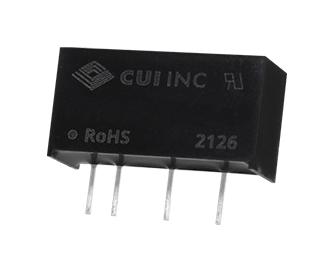

PDME2-S unregulated DC to DC converter series is a family of 2W isolated modules. Housed in a compact SIP package and featuring an ultra-wide -40 to +105°C operating temperature range, these low power DC to DC converters are ideal suited for high volume applications in the industrial, consumer and telecom space.
- Dual output module
- 5VDC typical input voltage, ±9V output voltage, ±111mA maximum output current
- 85% typical efficiency (measured at nominal input voltage, full load)
- Continuous, auto recovery short circuit protection
- 1500VDC isolation
- No load input current as low as 8mA
- EN 62368-1 certified
- Switching frequency of 220KHz (100% load, nominal input voltage)
- Dimension is 19.65mm x 7.05mm x 10.16mm (LxWxH)
- Black flame-retardant and heat-resistant plastic (UL94V-0) case
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
-
|
| Output Power Max:
2W
|
| No. of Outputs:
2 Output
|
| Output Voltage - Output 1:
9V
|
| Output Current - Output 1:
111mA
|
| Output Voltage - Output 2:
-9V
|
| Output Current - Output 2:
-111mA
|
| Output Regulation:
Unregulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
SIP
|
| Input Voltage DC Nom:
5V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
7.05mm
|
| Height:
10.16mm
|
| Depth:
19.65mm
|
| Input Voltage DC Min:
4.5V
|
| Input Voltage DC Max:
5.5V
|
| Product Range:
PDME2-S Series
|
Other details
| Brand |
CUI |
| Part Number |
PDME2-S5-D9-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
