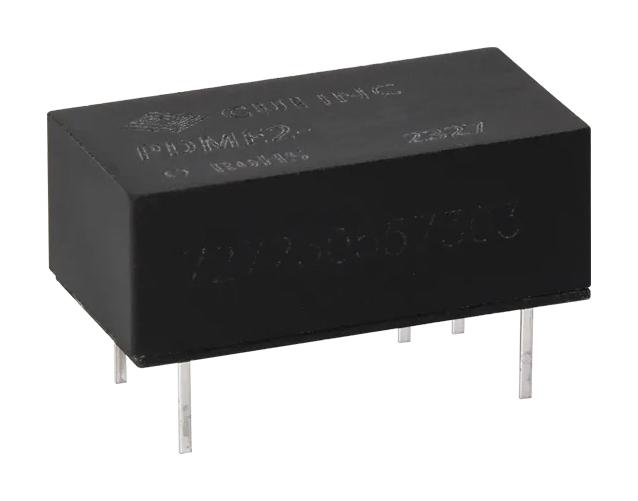

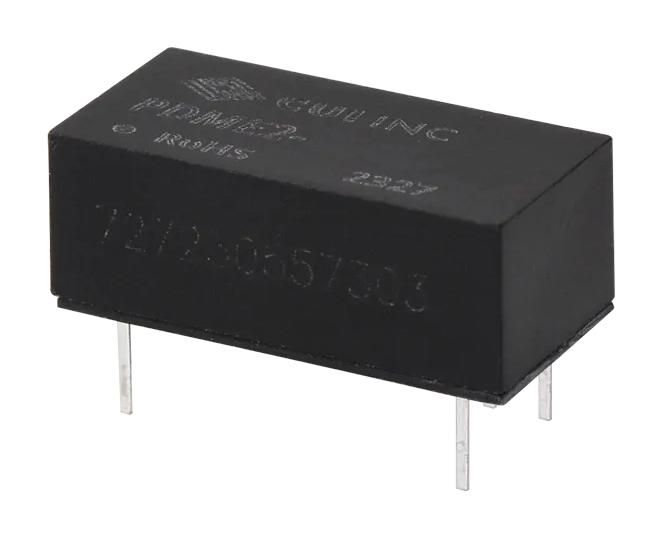

PDME2-5-S5-D is a PDME2-D series DC-DC converter. It is an isolated module housed in a compact DIP package. Featuring an extended -40 to +105°C operating temperature range, unregulated outputs and continuous short circuit protection, this low power DC-DC converter is ideally suited for high volume applications in the industrial, consumer, and telecom space. Designed to meet UL/EN/BS EN 62368.
- 5VDC typical input voltage, 5VDC output voltage, 40 to 400mA output current range
- 2W maximum output power, 84% typical efficiency (nominal input voltage, full load)
- Single unregulated output, 1500VDC isolation minimum (input to output for 1 minute at 1mA)
- 220KHz switching frequency typ
- Black flame-retardant and heat-resistant plastic (UL94V-0) case material
- No-load input current as low as 8mA
- Dimension is 20.32 x 10.16 x 8.20mm
- Operating temperature range from -40 to 105°C
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
1:1
|
| Output Power Max:
2W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
5VDC
|
| Output Current - Output 1:
400mA
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Unregulated
|
| Isolation Voltage:
1.5kV
|
| DC / DC Converter Type:
DIP
|
| Input Voltage DC Nom:
5V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
10.16mm
|
| Height:
8.2mm
|
| Depth:
20.32mm
|
| Input Voltage DC Min:
4.5V
|
| Input Voltage DC Max:
5.5V
|
| Product Range:
PDME2-D Series
|
Other details
| Brand |
CUI |
| Part Number |
PDME2-5-S5-D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
