Description

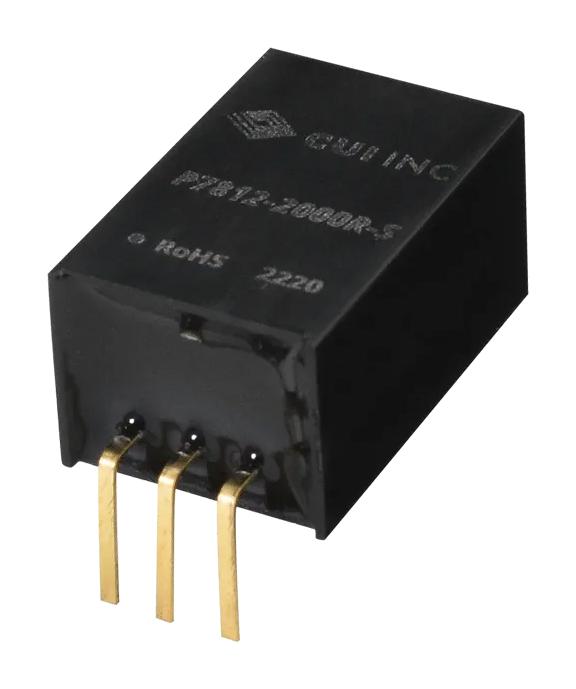

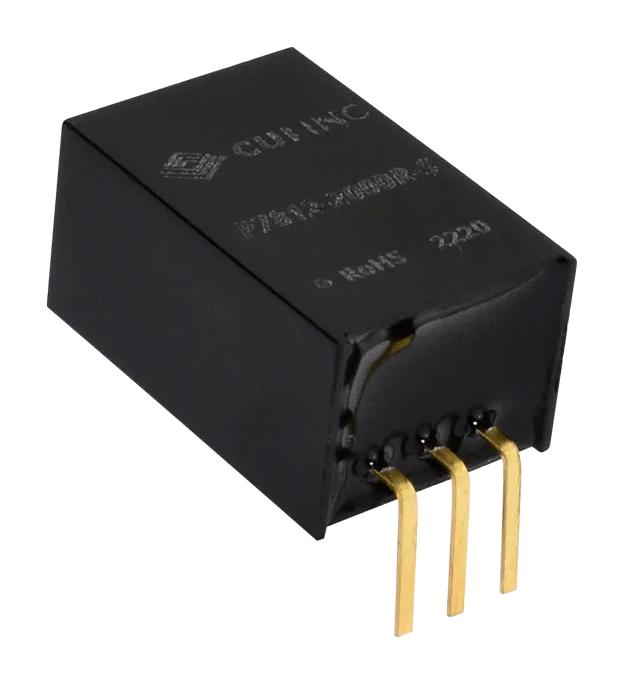

P7812-2000R-S is a DC-DC non-isolated switching regulator in SIP package. It is designed to meet EN/IEC/BS EN 62368 standards. It is pin compatible with LM78XX linear regulators.
- Input voltage range from 16 to 36VDC
- 12VDC output voltage
- 2A output current
- 24W output power
- No-load input current as low as 0.1mA
- 75mVp-p ripple and noise maximum
- 96% efficiency
Other details
| Brand | CUI |
| Part Number | P7812-2000R-S |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Packaging / Drawing / Footprint EN | |
| User Manual EN | |
| Declaration of Conformity EN | |
| 3D Product Image EN | |
