Description

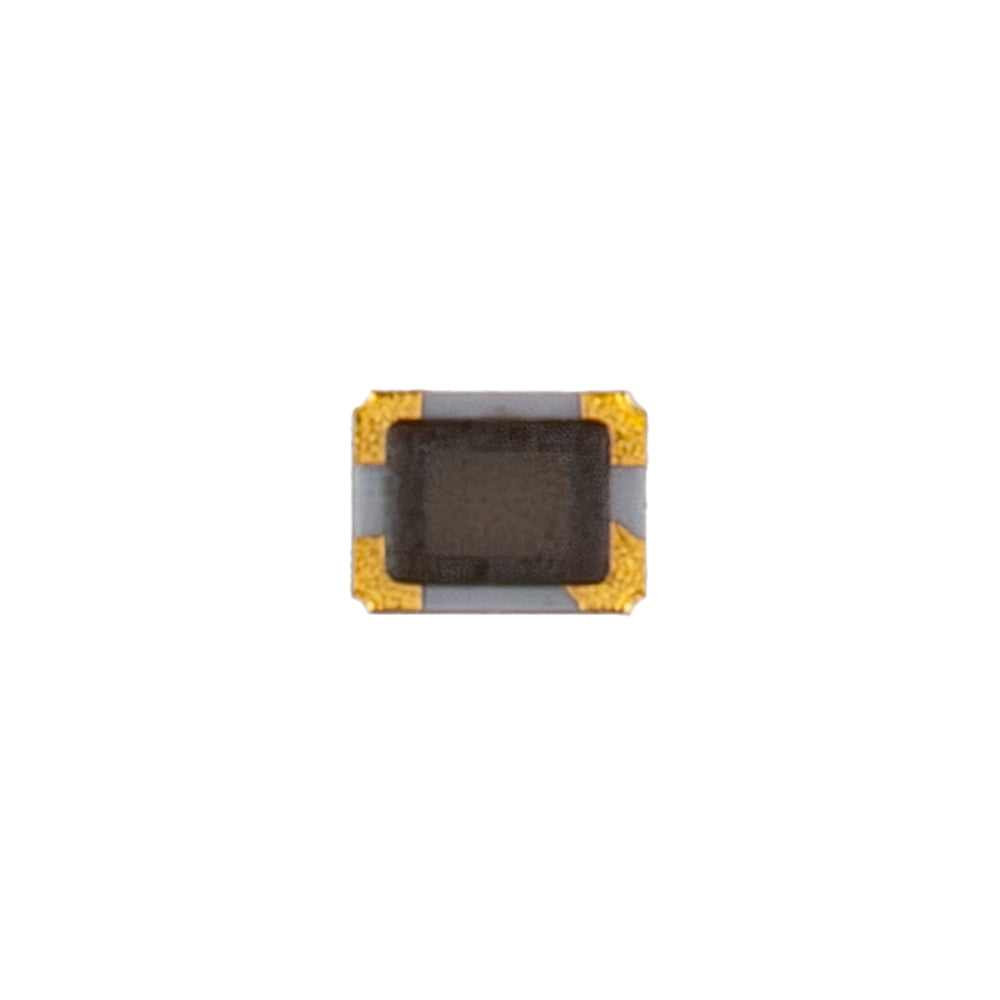

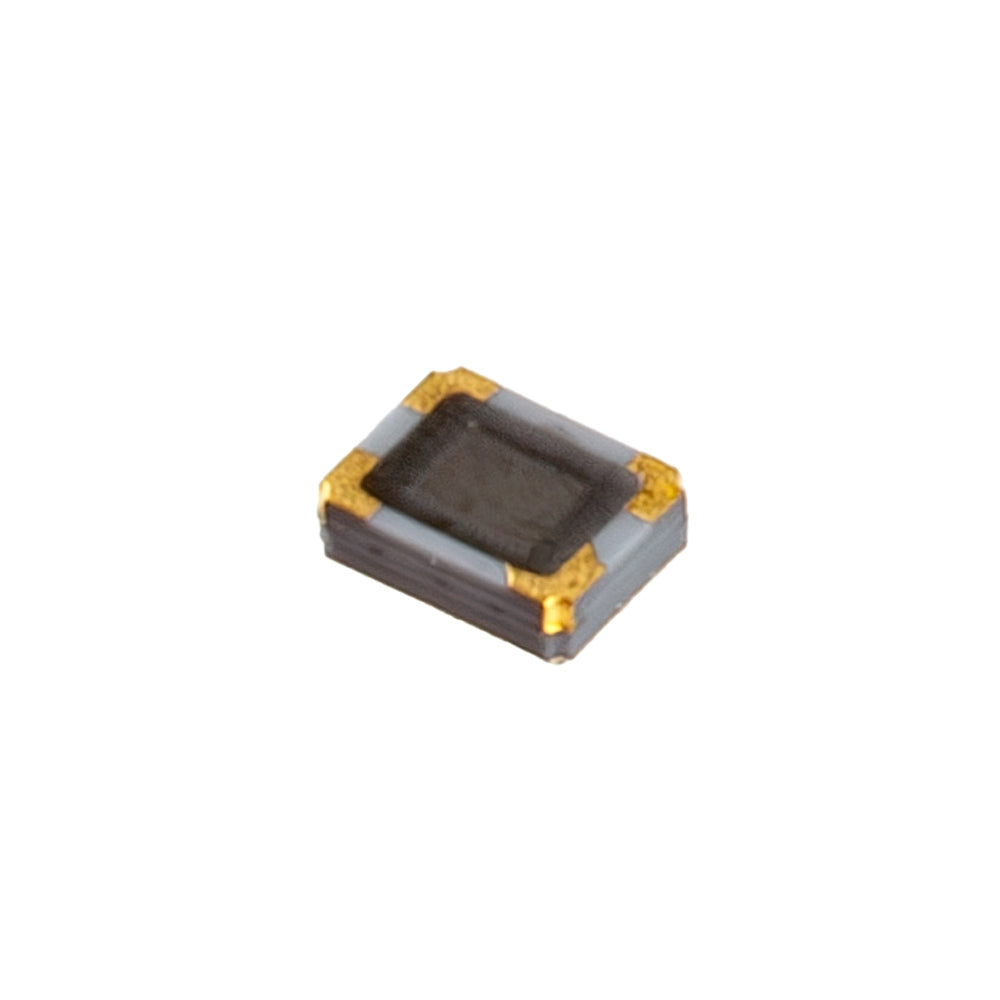

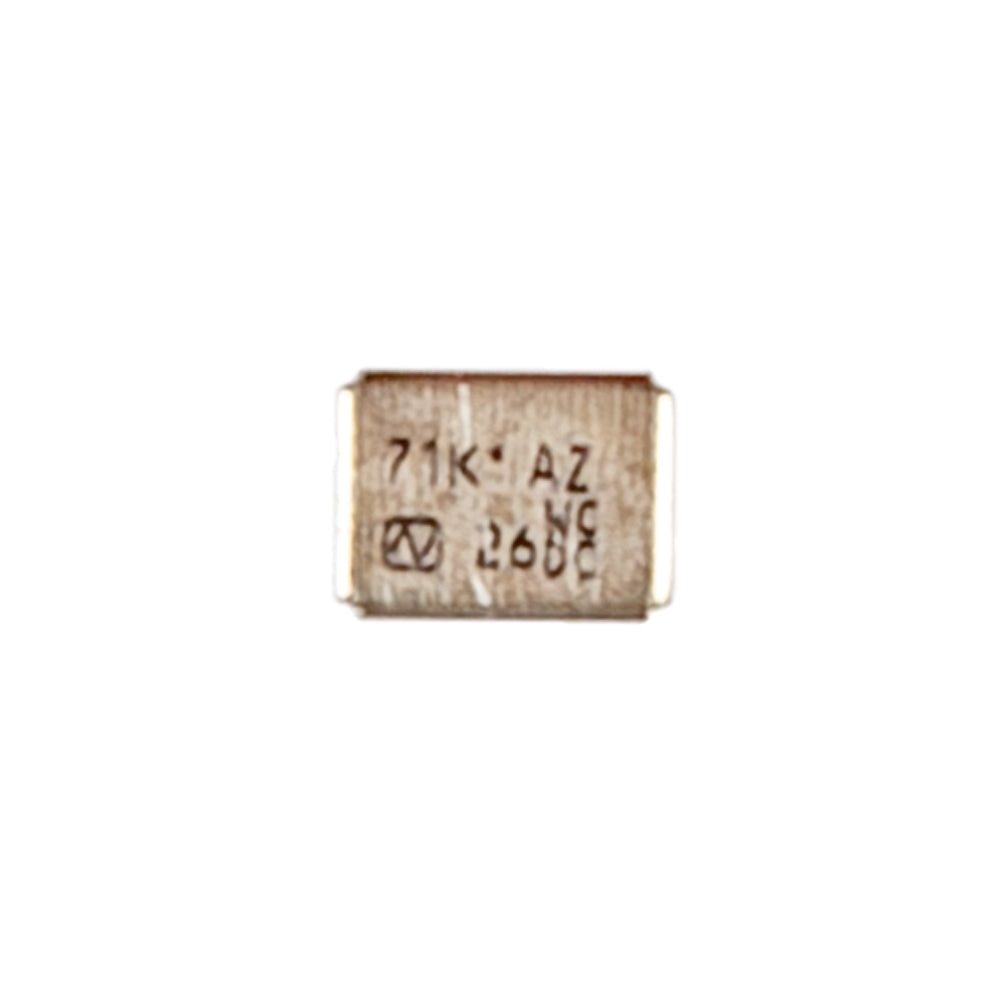

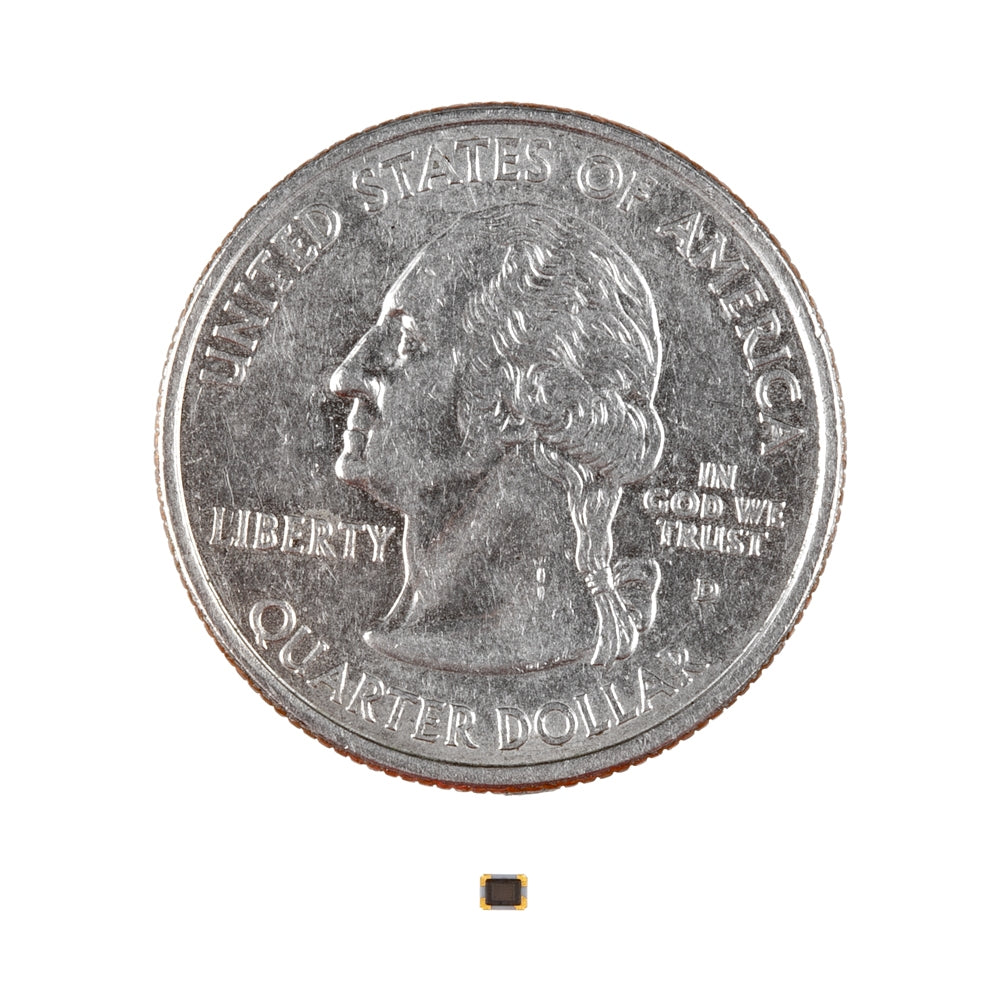

This is a Clipped Sine Wave Temperature-Compensated Crystal Oscillator (TCXO). It features a 1.8V supply voltage and comes in a 1.65 x 1.25mm surface mount package.
Features & Specs
- Frequency: 26.0MHz
- Frequency Tolerance: ±1.50ppm
- Tolerance Condition @ 25°C: ±2°C
- Frequency Stability: ±0.50ppm
- Operating Temperature: -30.00 ~ 85.00°C
- Ageing: ±1ppm max per year @ 25°C ±3°C
- Supply Voltage Variation (±5% change @ 25°C): ±0.1ppm max
- Load Variation (±10% change @ 25°C): ±0.1ppm max
- IR Reflow Resistance (referred to frequency before reflow): ±1ppm max
- Supply Voltage: 1.8V ±5%
- Current Draw: 1.500mA
- Absolute Maximum Supply Voltage: -0.6V to 4.6V
- Output Compatibility: Clipped Sine
- Drive Capability: 10kΩ//10pF
- Output Voltage Level: 0.8V pk-pk min
- Output: DC coupled
- Start Up Time (Vout ≥ 90%Vpk-pk): 2ms max
- Harmonic distortion: -5.0dBc max
- Phase Noise @ 25°C: -135dBc/Hz @ 1kHz typ
Features & Specs
- Frequency: 26.0MHz
- Frequency Tolerance: ±1.50ppm
- Tolerance Condition @ 25°C: ±2°C
- Frequency Stability: ±0.50ppm
- Operating Temperature: -30.00 ~ 85.00°C
- Ageing: ±1ppm max per year @ 25°C ±3°C
- Supply Voltage Variation (±5% change @ 25°C): ±0.1ppm max
- Load Variation (±10% change @ 25°C): ±0.1ppm max
- IR Reflow Resistance (referred to frequency before reflow): ±1ppm max
- Supply Voltage: 1.8V ±5%
- Current Draw: 1.500mA
- Absolute Maximum Supply Voltage: -0.6V to 4.6V
- Output Compatibility: Clipped Sine
- Drive Capability: 10kΩ//10pF
- Output Voltage Level: 0.8V pk-pk min
- Output: DC coupled
- Start Up Time (Vout ≥ 90%Vpk-pk): 2ms max
- Harmonic distortion: -5.0dBc max
- Phase Noise @ 25°C: -135dBc/Hz @ 1kHz typ
Documentation
