Description

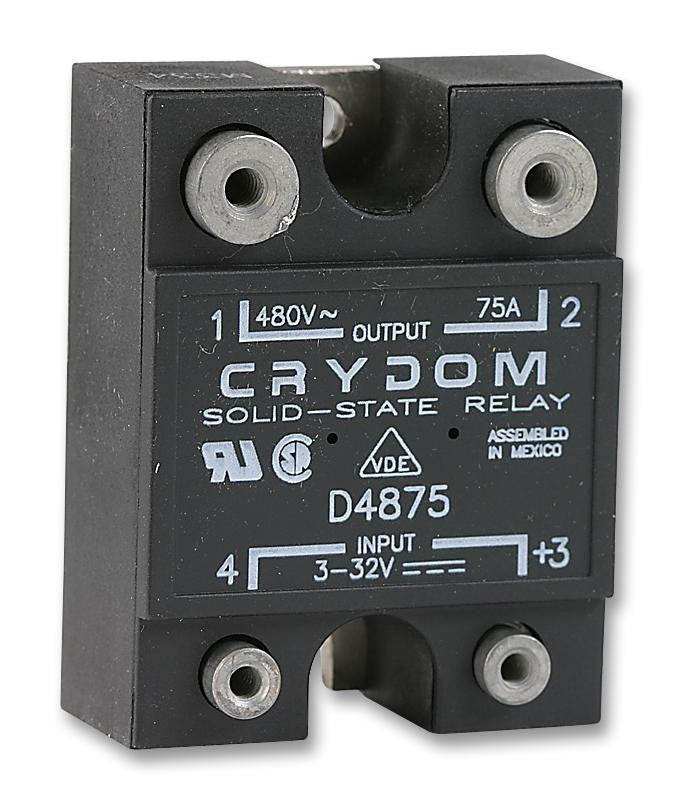

The D4875 is a Solid State Relay with aluminium base plate, 94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This series-1 relay panel mount features improved SEMS screw and washer, redesigned housing with anti-rotation barriers. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
- Epoxy-free design
- AC or DC Control
- SCR output for heavy industrial loads
- 1.15Vrms Maximum on-state voltage drop
- 4000Vrms Dielectric strength
- Current regulated nominal input impedance
- 1/2 cycle ms Turn-on/off maximum time
- -40 to 80�C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | Panel |
| Control Voltage Max | 32VDC |
| Load Current | 75A |
| Control Voltage Min | 4VDC |
| Product Range | D48 Series |
| Relay Terminals | Screw |
| Operating Voltage Min | 48VAC |
| Switching Mode | Zero Crossing |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 530Vrms |
Other details
| Brand | CRYDOM |
| Part Number | D4875 |
| Quantity | Each |
| Technical Data Sheet EN |  |
