Description

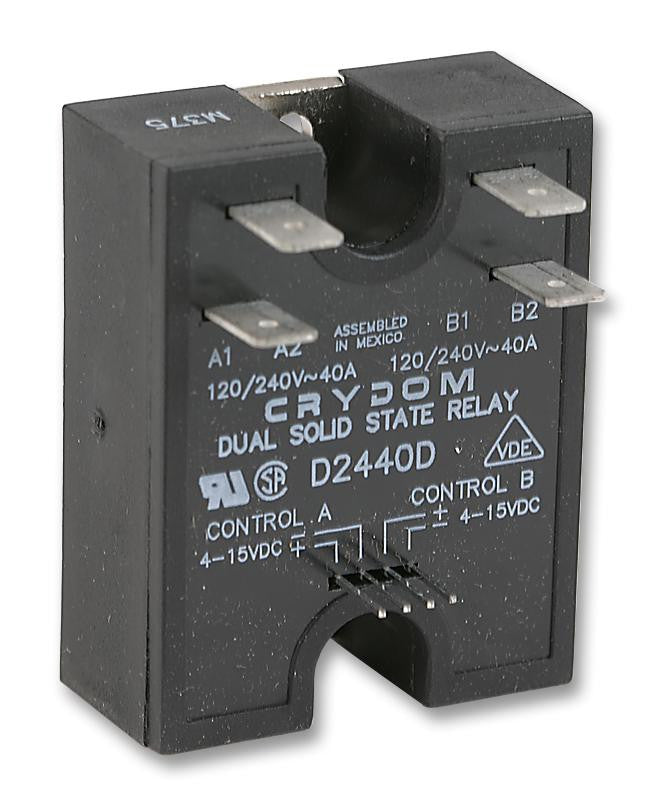

The D2440D is a Solid State Relay with thermally conductive epoxy encapsulation, DPST-NO contacts, zero crossing switching mode and quick-connect terminals. This dual-series panel mount relay has independently controlled dual output solid-state relay.
- DC control
- SCR output for heavy industrial loads
- 4000Vrms Dielectric strength
- 300R Nominal input impedance
- 1/2 cycle ms Turn-on/off maximum time
- -40 to 80�C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | Panel |
| Control Voltage Max | 15VDC |
| Load Current | 40A |
| Control Voltage Min | 4VDC |
| Product Range | 1 Series |
| Relay Terminals | Quick Connect |
| Operating Voltage Min | 24VAC |
| Switching Mode | Zero Crossing |
| Contact Configuration | DPST-NO |
| Operating Voltage Max | 280VAC |
Other details
| Brand | CRYDOM |
| Part Number | D2440D |
| Quantity | Each |
| Technical Data Sheet EN |  |
