Description

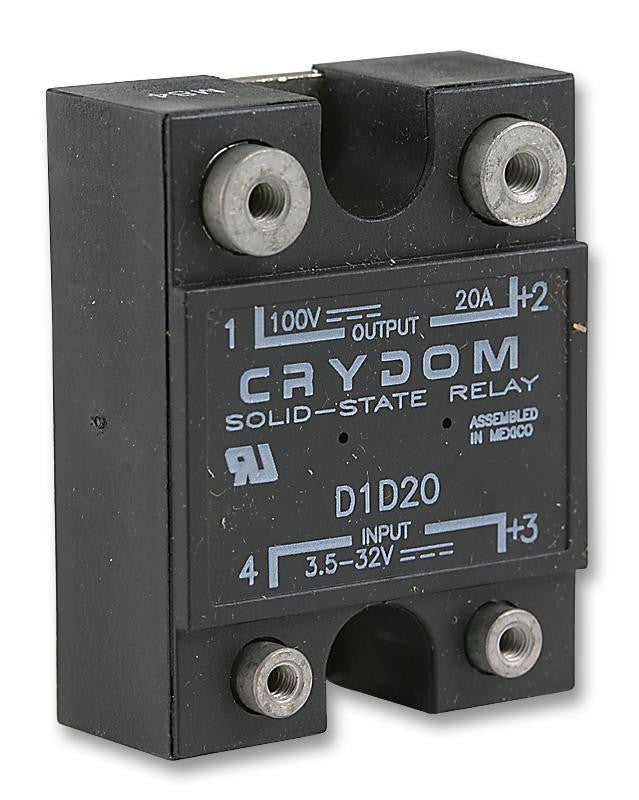

The D1D20 is a Solid-state Relay with panel mount, 1-DC series. DC output, MOSFET output. Redesigned housing with anti-rotation barriers. Easily paralleled for higher current applications.
- Improved SEMS screw and washer
- EMC compliant to Level 3
- Epoxy-free design
- UL94V-0 Flammability rating
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Relay Mounting | Panel |
| Control Voltage Max | 32VDC |
| Load Current | 20A |
| Control Voltage Min | 3.5VDC |
| Product Range | 1-DC Series |
| Relay Terminals | Screw |
| Operating Voltage Min | 0VDC |
| Switching Mode | DC Switch |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 100VDC |
Other details
| Brand | CRYDOM |
| Part Number | D1D20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
