Description

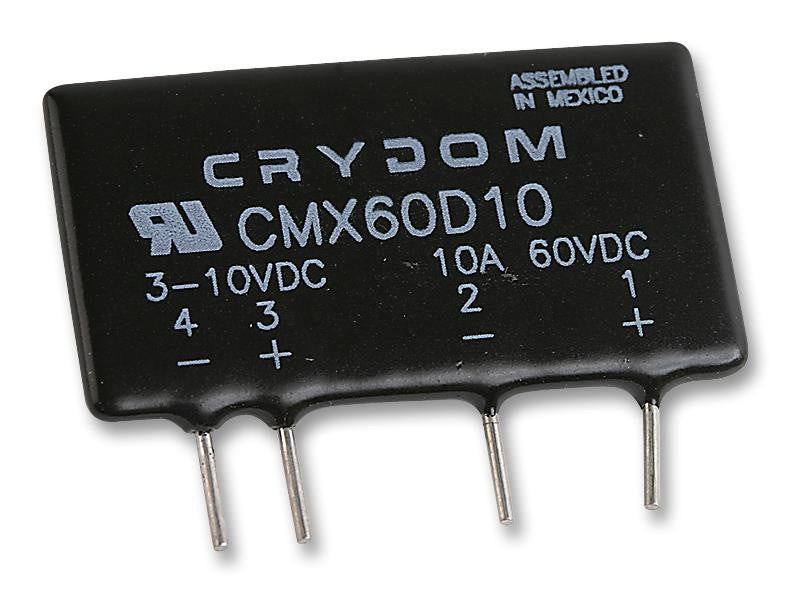

The CMX60D10 is a 1-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, DC switch mode and through hole terminals. This CMX-series PCB mount relay features low on-state impedance.
- DC control
- MOSFET Output
- 0.18VDC Maximum on-state voltage drop
- 300R Nominal input impedance
- 2500Vrms Dielectric strength
- 1ms Turn-on and 300�sec turn-off maximum time
- -30 to 80�C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | PCB |
| Control Voltage Max | 10VDC |
| Load Current | 10A |
| Control Voltage Min | 3VDC |
| Product Range | CMX Series |
| Relay Terminals | Through Hole |
| Operating Voltage Min | 0VDC |
| Switching Mode | DC Switch |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 60VDC |
Other details
| Brand | CRYDOM |
| Part Number | CMX60D10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
