Description

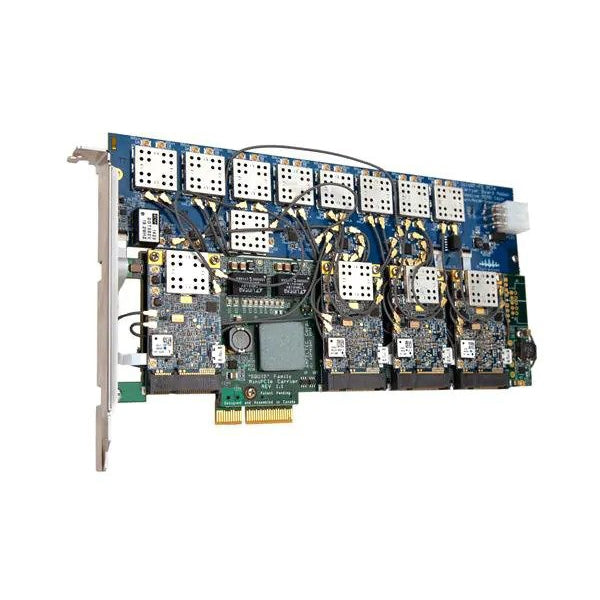

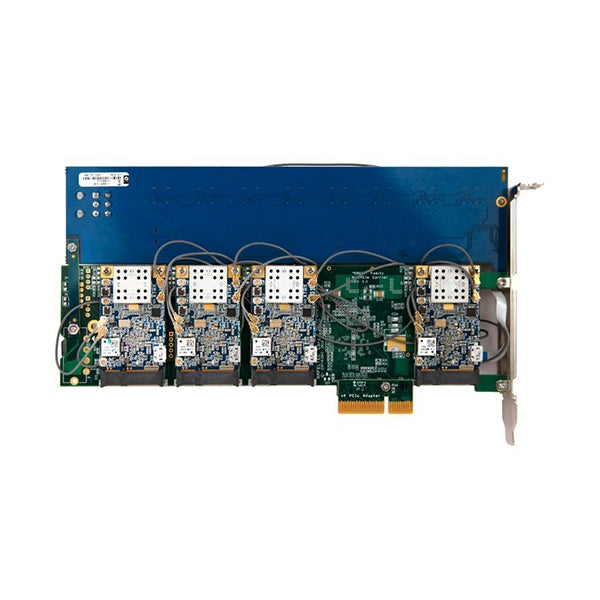

The ultimate low-cost massive MIMO SDR, with up to 32x32 transmit/receive channels
Features & Specs
- RF Chipset: 8x Lime Microsystems LMS7002M FPRF
- FPGA: 8x Xilinx Artix-7 50T
- Channels: 8x8 MIMO
- Sample Rate: ~0.2MSPS to 120MSPS per channel (subject to the limitations explained above)
- PCIe Throughput: PCIe x4 Gen 2.0, 16Gb/s
- RF Output Power: 0dBm to 10dBm depending on frequency
- RF Bandwidth: 1.4MHz to 130.0MHz (1.4MHz to 30.0MHz for the 6.0GHz RX option)
- Tuning Range: 30.0MHz to 3.8GHz
- RX/TX Range:
- 10MHz to 3.7GHz
- 100kHz to 3.8GHz with signal level degradation
- Reference Clock:
- Stability without GPS: 100ppb from 0°C to +70°C
- Stability with GPS: <10ppb stability after GPS/GNSS lock
- Form Factor: full-size PCIe
- Bus Latency: <10µs, stable over time
- Synchronization: synchronize two XYNC boards directly or more than two XYNC boards with an external clock distribution network
Features & Specs
- RF Chipset: 8x Lime Microsystems LMS7002M FPRF
- FPGA: 8x Xilinx Artix-7 50T
- Channels: 8x8 MIMO
- Sample Rate: ~0.2MSPS to 120MSPS per channel (subject to the limitations explained above)
- PCIe Throughput: PCIe x4 Gen 2.0, 16Gb/s
- RF Output Power: 0dBm to 10dBm depending on frequency
- RF Bandwidth: 1.4MHz to 130.0MHz (1.4MHz to 30.0MHz for the 6.0GHz RX option)
- Tuning Range: 30.0MHz to 3.8GHz
- RX/TX Range:
- 10MHz to 3.7GHz
- 100kHz to 3.8GHz with signal level degradation
- Reference Clock:
- Stability without GPS: 100ppb from 0°C to +70°C
- Stability with GPS: <10ppb stability after GPS/GNSS lock
- Form Factor: full-size PCIe
- Bus Latency: <10µs, stable over time
- Synchronization: synchronize two XYNC boards directly or more than two XYNC boards with an external clock distribution network
Documentation
