Description
Product Overview

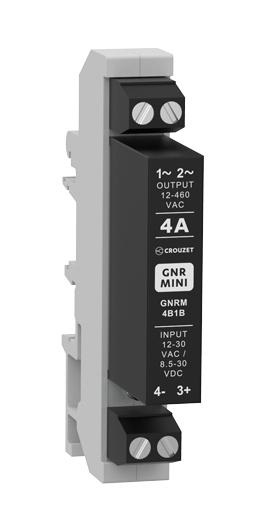

GNRM4B1B is GRN mini series DIN rail solid state relay with AC single phase output. It is designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose. It has built-in output overvoltage protection.
- Output current is 4A, control voltage range from 12 to 30V / 8.5 to 30V
- Output voltage range from 12 to 460V (special zero cross)
- Maximum reverse voltage is -30V
- DIN mount SSR, special zero cross switching
- Ambient operating temperature range from -40 to 80°C
- UL94 V-0 housing material, minimum power factor is 0.45
Product details
Other details
| Brand | CROUZET |
| Part Number | GNRM4B1B |
| Quantity | Each |
| Technical Data Sheet EN |  |
