Description
Product Overview

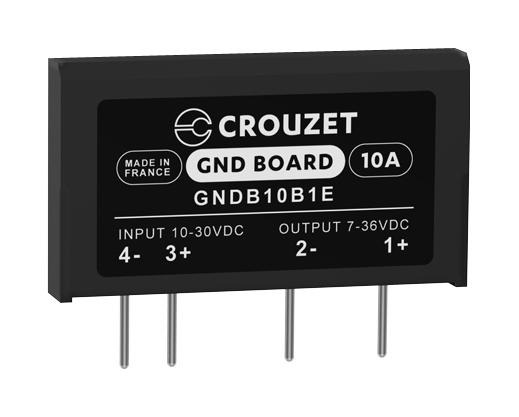

GNDB10B1E is a GND board series PCB mount SIP solid state relay with DC output. It is designed to be used in almost any application, offering a very long life expectancy, and is easy to install, easy to use, robust and multipurpose. It has built-in overvoltage protection. It is integrated with IP20 touch-safe removable covers.
- Output current is 10A, control voltage range from 10 to 30V
- Output voltage range from 7 to 36V ( DC switching)
- Maximum reverse voltage is -30V, minimum turn-on voltage is 7V
- Classic SIP package for printed circuit boards
- Ambient operating temperature range from -40 to 80°C
- UL94 V-0 rated housing material
Product details
Other details
| Brand | CROUZET |
| Part Number | GNDB10B1E |
| Quantity | Each |
| Technical Data Sheet EN |  |
