Description
Product Overview

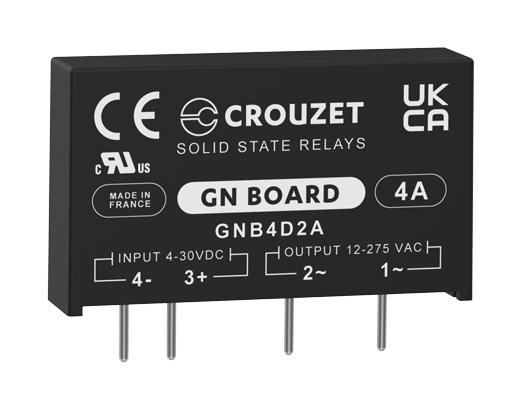

GNB4D2A is a GN board series PCB mount SIP solid state relay with single phase AC output. It is designed to be used in almost any application, offering a very long life expectancy, and is easy to install, easy to use, robust and multipurpose. It has built-in overvoltage protection.
- Output current is 4A, control voltage range from 4 to 30V
- Output voltage range from 12 to 275V ( special zero cross)
- Maximum reverse voltage is -6V, minimum turn-on voltage is 4V
- Classic SIP package for printed circuit boards, zero cross and special zero cross switching
- Ambient operating temperature range from -40 to <gt/> 80°C
- UL94 V-0 housing material, minimum power factor is 0.45
Product details
Other details
| Brand | CROUZET |
| Part Number | GNB4D2A |
| Quantity | Each |
| Technical Data Sheet EN |  |
