Product Overview

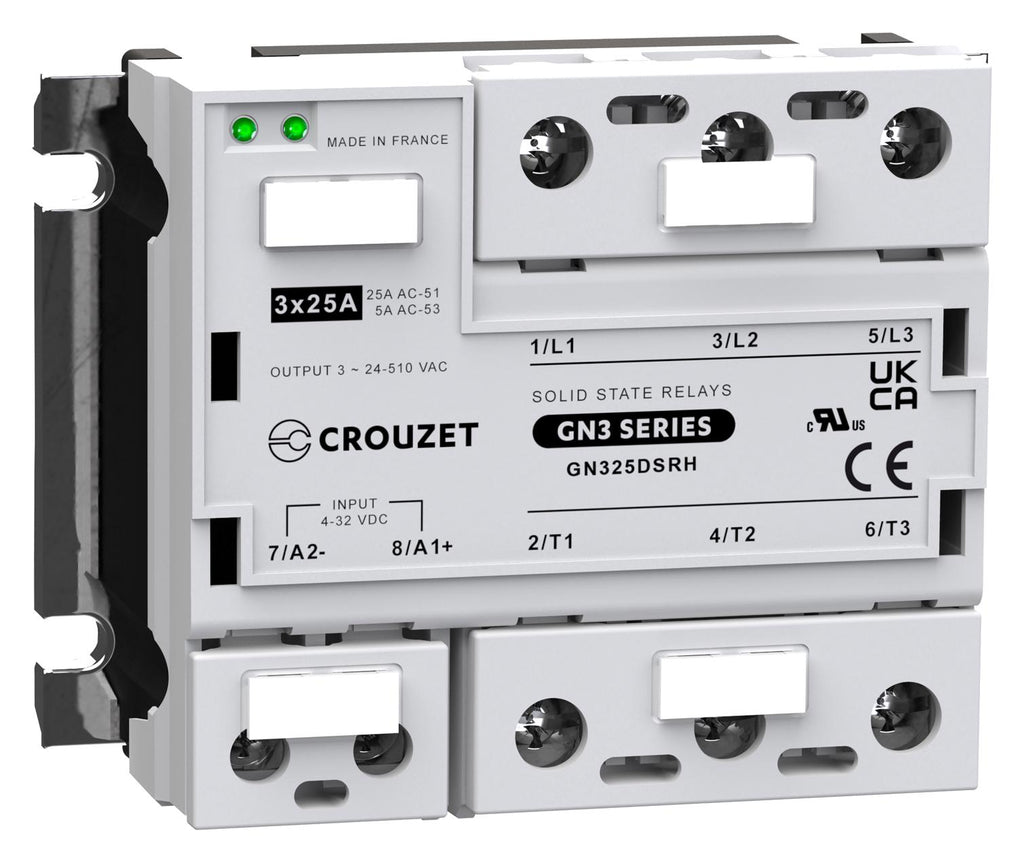

- GN3 series panel mount three phase classic solid state relay
- For frequent start/stop operation of three-phase heaters or motors
- A market favourite for many years, � 3 legs control
- 25Amps output current
- Control voltage from 4V to 32V
- Overvoltage protection
- Instantaneous switching type
- Output voltage from 24V to 510V
- Ambient operating temperature range from -40°C to 80°C
- UL94 V-0 housing material
Product details
Technical Specifications
Operating Voltage Max
510VAC
Operating Voltage Min
24VAC
Control Voltage Max
32VDC
Relay Mounting
Panel Mount
Switching Mode
Random Turn On
Other details
| Brand |
CROUZET |
| Part Number |
GN325DSRH |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
