Product Overview

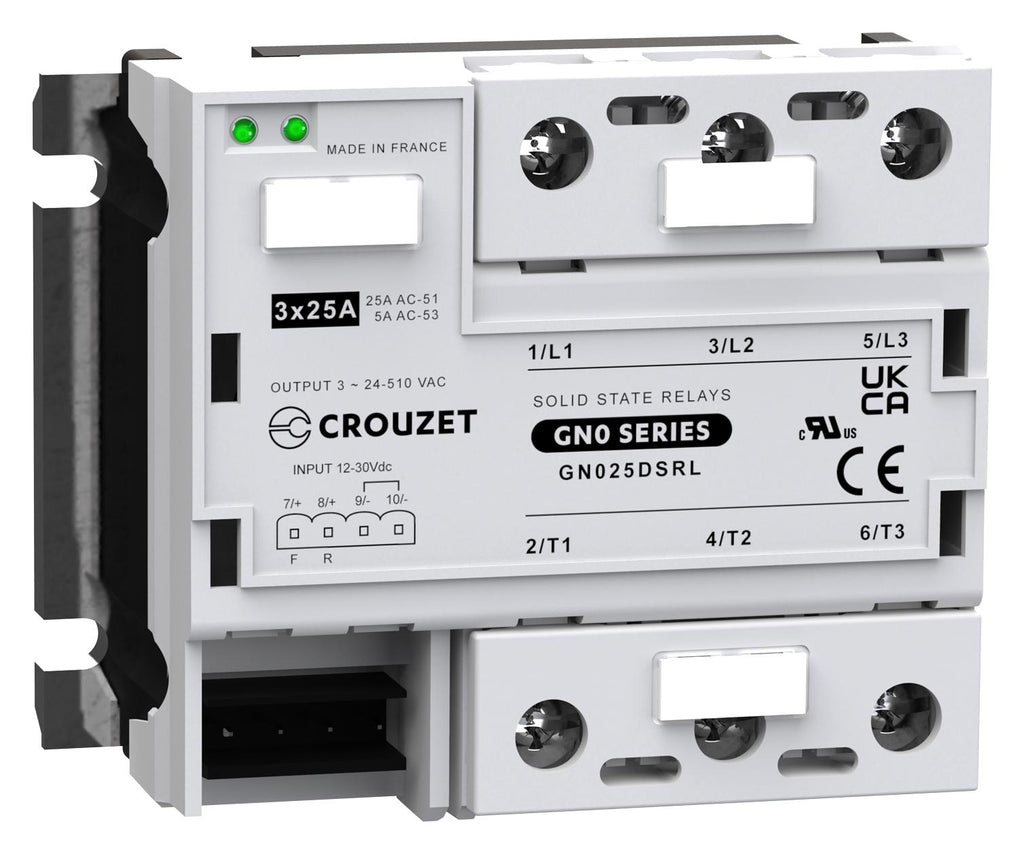

- GN0 series panel mount, three phase reverse solid state relay
- For frequent start/stop/reversing operation of three-phase motors
- Interlock feature allows only start, stop and reversing operation in a safe mode
- 25Amps output current, LED control, 2 legs control
- Start/stop/reversing in the same package, output overvoltage protection
- Special zero cross (resistive, inductive and capacitive loads)
- Control voltage from 12V to 30V
- Output overvoltage protection
- Special zero cross switching type
- Output voltage from 24V to 510V
Product details
Technical Specifications
Operating Voltage Max
510VAC
Operating Voltage Min
24VAC
Control Voltage Max
30VDC
Relay Mounting
Panel Mount
Switching Mode
Zero Crossing
Control Voltage Min
12VDC
Other details
| Brand |
CROUZET |
| Part Number |
GN025DSRL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
