Description
Product Overview

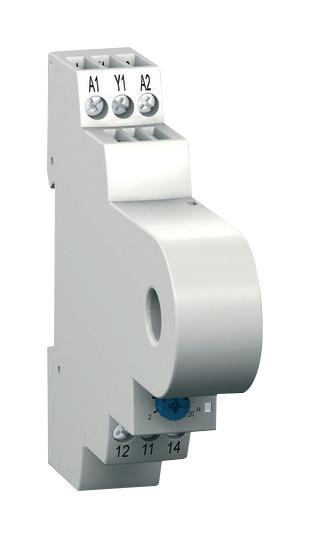

84871122 is a DIN rail mount MIC relay that controls the overcurrent. The relay closes when the current exceeds the threshold displayed on the front face and opens when it falls below the threshold minus the hysteresis. When terminal Y1 is connected to A1 (+), the output is inverted. The relay opens when the current exceeds the threshold displayed on the front face and closes again when it falls back below the hysteresis (undercurrent).
- Control of AC currents, built-in current transformer
- Measurement ranges from 2A to 20A, choice of output relay action
- True RMS measurement, nominal voltage range from 24V to 240V AC/DC
- Voltage tolerance is -15 % / +10%, 50Hz /60Hz ±10% AC supply voltage frequency
- Frequency of measured signal is 40Hz to 70Hz sinusoidal
- Maximum measuring cycle time is 30ms/True RMS measurement
- 200ms reset time
- 1 single pole changeover relay output
- Maximum breaking voltage is 250VAC/DC
Product details
Other details
| Brand | CROUZET |
| Part Number | 84871122 |
| Quantity | Each |
| Technical Data Sheet EN |  |
