Description
Product Overview

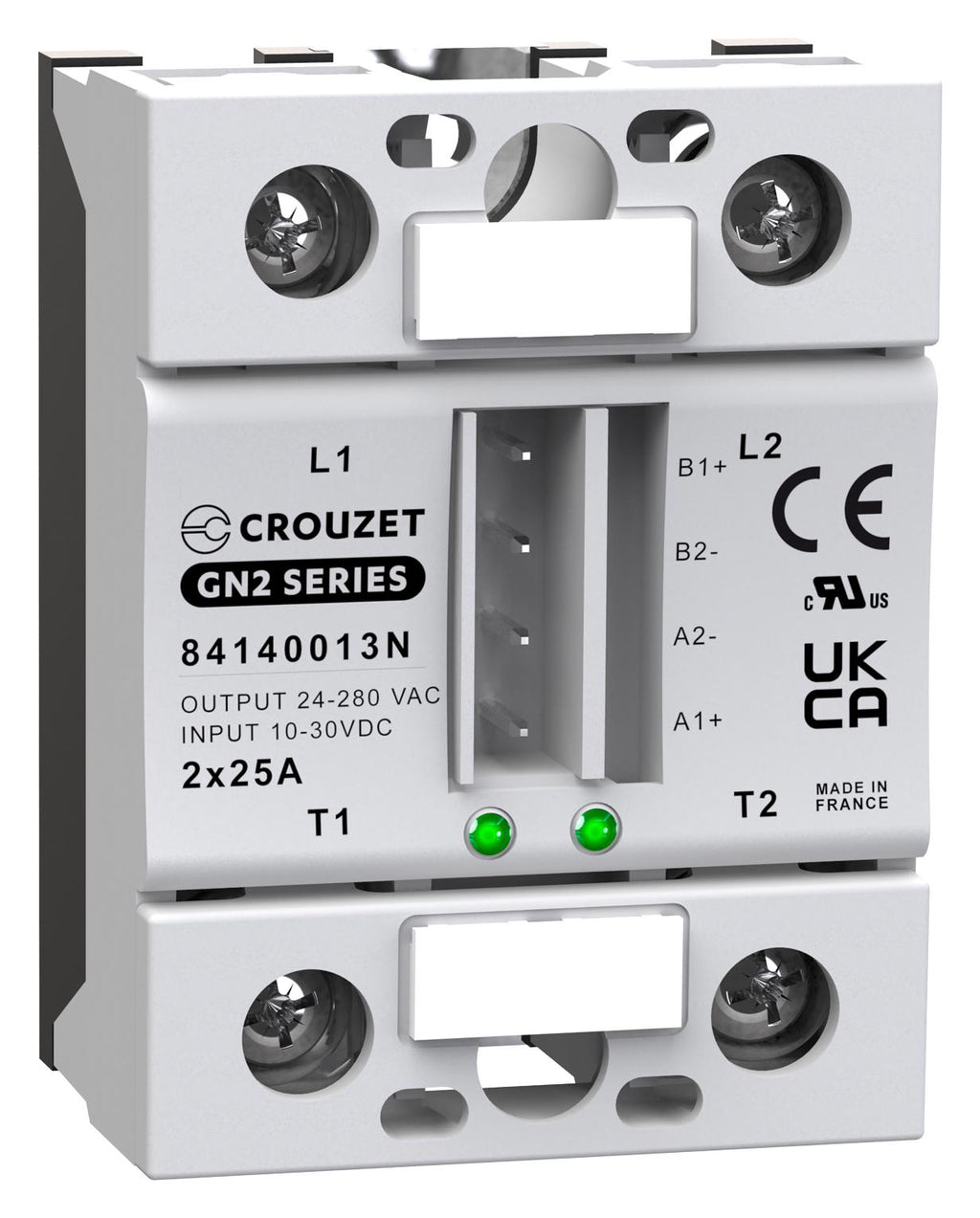

84140013N is a GN2 series, panel mount, dual channel, classic solid state relay. It is designed to be used in almost any application, offering a very long life expectancy, and is easy to install, easy to use, robust, and multipurpose. It is recognized by cRUus, and UKCA.
- 25A rated load current
- 10V to 30V control voltage
- Zero cross switching type
- Operating voltage range from 24V to 280V
- 5mArms minimum load current
- 0.8pF maximum capacitance, input/output
- Ambient operating temperature range from -40°C to 80°C
- Input status indicator LED-green
- UL94 V-0 housing material
Product details
Other details
| Brand | CROUZET |
| Part Number | 84140013N |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10383.28 |
| 3-5 | ₹ 10277.32 |
| 5-10 | ₹ 10065.42 |
| 10+ | ₹ 9853.52 |
Bulk discount will be automatically applied during checkout based on quantity.
