Description
Product Overview

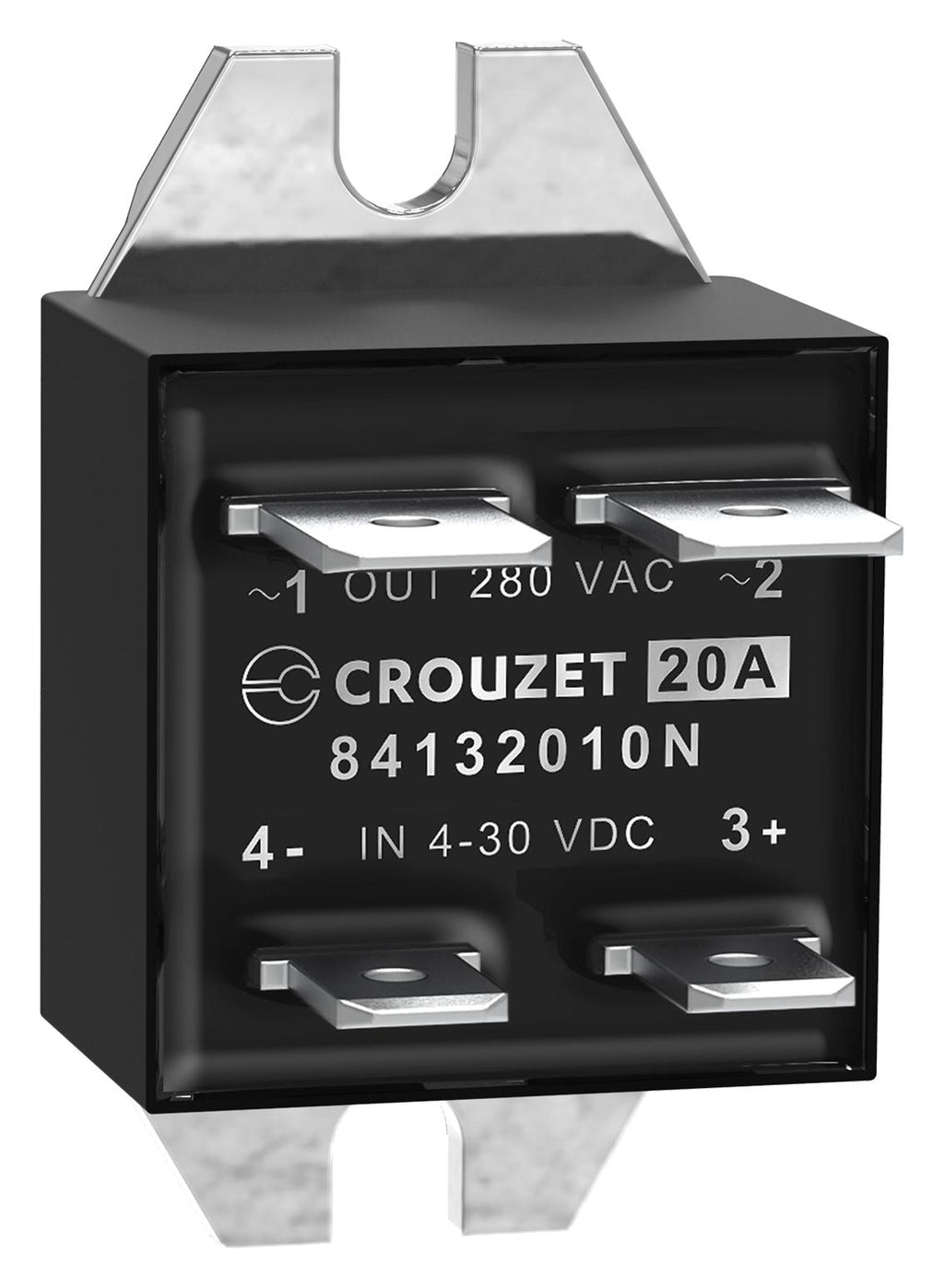

84132010N is a GN mini series, panel mount, single channel, Mini Puck solid state relay. It is designed to be used in almost any application, offering a very long life expectancy and is easy to install, easy to use, robust and multipurpose. It is recognized by cRUus, and UKCA.
- 20A rated load current
- Zero cross turn-on, easy-to-use: fast-on connection, new generation
- Output voltage range from 24V to 280V, control voltage range from 4V to 30V
- 4V minimum turn-on voltage
- 29mA maximum input current
- 1000 ohm nominal input impedance
- 0.8pF maximum capacitance (input/output)
- Ambient operating temperature range from -40°C to 80°C
- Input status indicator No LED
- UL94 V-0 housing, aluminium baseplate material
Product details
Other details
| Brand | CROUZET |
| Part Number | 84132010N |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4738.23 |
| 3-5 | ₹ 4689.88 |
| 5-10 | ₹ 4593.18 |
| 10+ | ₹ 4496.48 |
Bulk discount will be automatically applied during checkout based on quantity.
